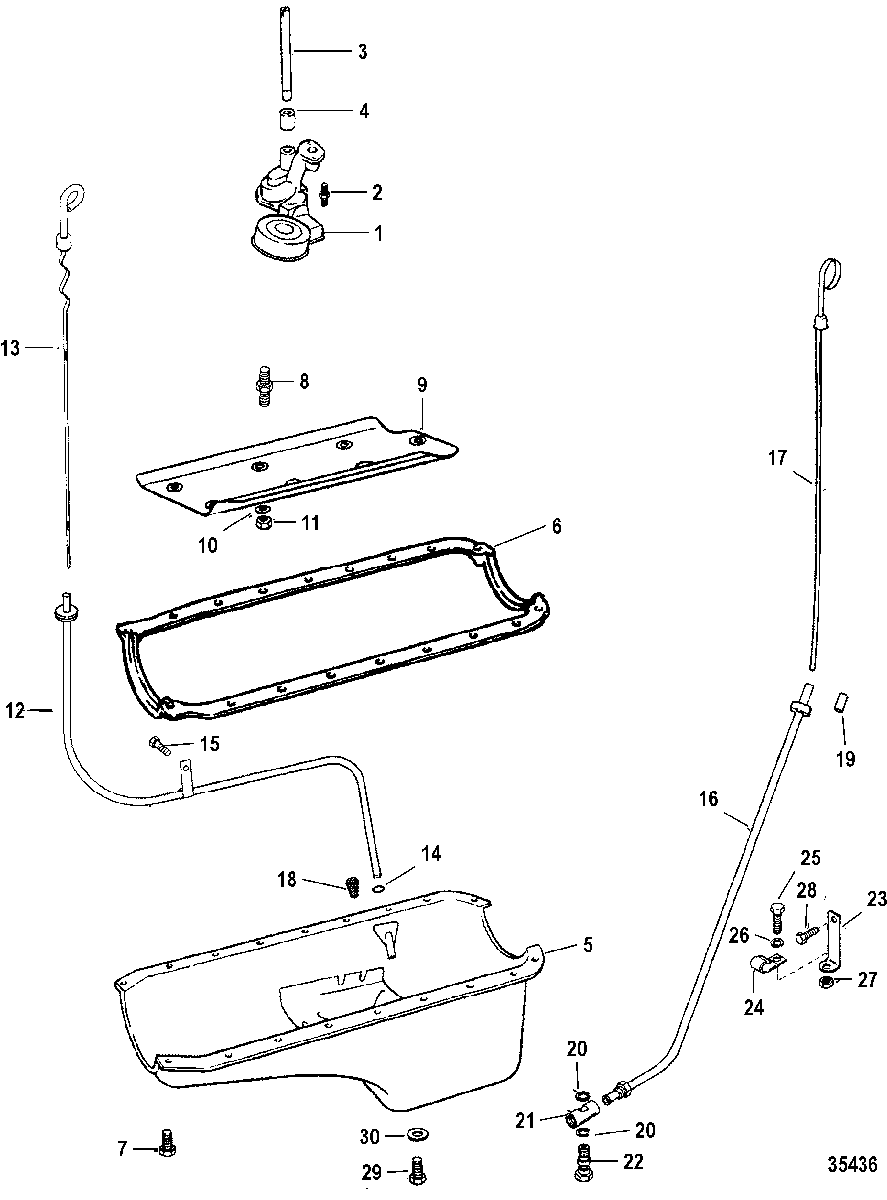

OIL PAN AND OIL PUMP для Mercruiser - 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 1998-2000 0L002006 THRU 0L674613

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    16-845599 STUD
    STUD
  • 3
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    845668T PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 6
    27-845628 GASKET
    GASKET
  • 7
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 8
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 9
    843945T BAFFLE
    BAFFLE
  • 10
    12-49112 WASHER
    WASHER
  • 11
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    818631A6 TUBE ASSEMBLY, Dipstick
    BORG WARNER 5000 V-DRIVE
    TUBE ASSEMBLY, Dipstick
    BORG WARNER 5000 V-DRIVE
  • 13
    861942T9 DIPSTICK
    BORG WARNER 5000 V-DRIVE
    DIPSTICK
    BORG WARNER 5000 V-DRIVE
  • 14
    25-62704 O-RING, (.362 x .103)
    BORG WARNER 5000 V-DRIVE
    O-RING, (.362 x .103)
    BORG WARNER 5000 V-DRIVE
  • 15
    10-8M0040582 SCREW
    BORG WARNER 5000 V-DRIVE
    SCREW
    BORG WARNER 5000 V-DRIVE
  • 16
    805162T1 TUBE, Dipstick
    (PORT)
    TUBE, Dipstick
    (PORT)
  • 16
    805162T TUBE, Dipstick
    (STARBOARD)
    TUBE, Dipstick
    (STARBOARD)
  • 17
    861942T5 DIPSTICK
    (HURTH 630 & B/W 5000 & B/W 72 W/ REMOTE V-DRIVE)
    DIPSTICK
    (HURTH 630 & B/W 5000 & B/W 72 W/ REMOTE V-DRIVE)
  • 17
    861942T4 DIPSTICK
    (BORG WARNER 72)
    DIPSTICK
    (BORG WARNER 72)
  • 18
    19-818841 PLUG, Oil Pan Dipstick Hole
    PLUG, Oil Pan Dipstick Hole
  • 19
    805339 CAP, Vinyl (YELLOW)
    CAP, Vinyl (YELLOW)
  • 20
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 21
    821504 FITTING, Banjo
    FITTING, Banjo
  • 22
    807497 BOLT, Banjo (M12)
    BOLT, Banjo (M12)
  • 23
    48134 BRACKET
    BRACKET
  • 24
    54-92338 CLIP
    CLIP
  • 25
    10-54630 SCREW, (.312-24 x .625)
    SCREW, (.312-24 x .625)
  • 26
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 27
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 28
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
  • 29
    10-809911001 SCREW, Oil Drain (M12 x 1.75)
    SCREW, Oil Drain (M12 x 1.75)
  • 30
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
