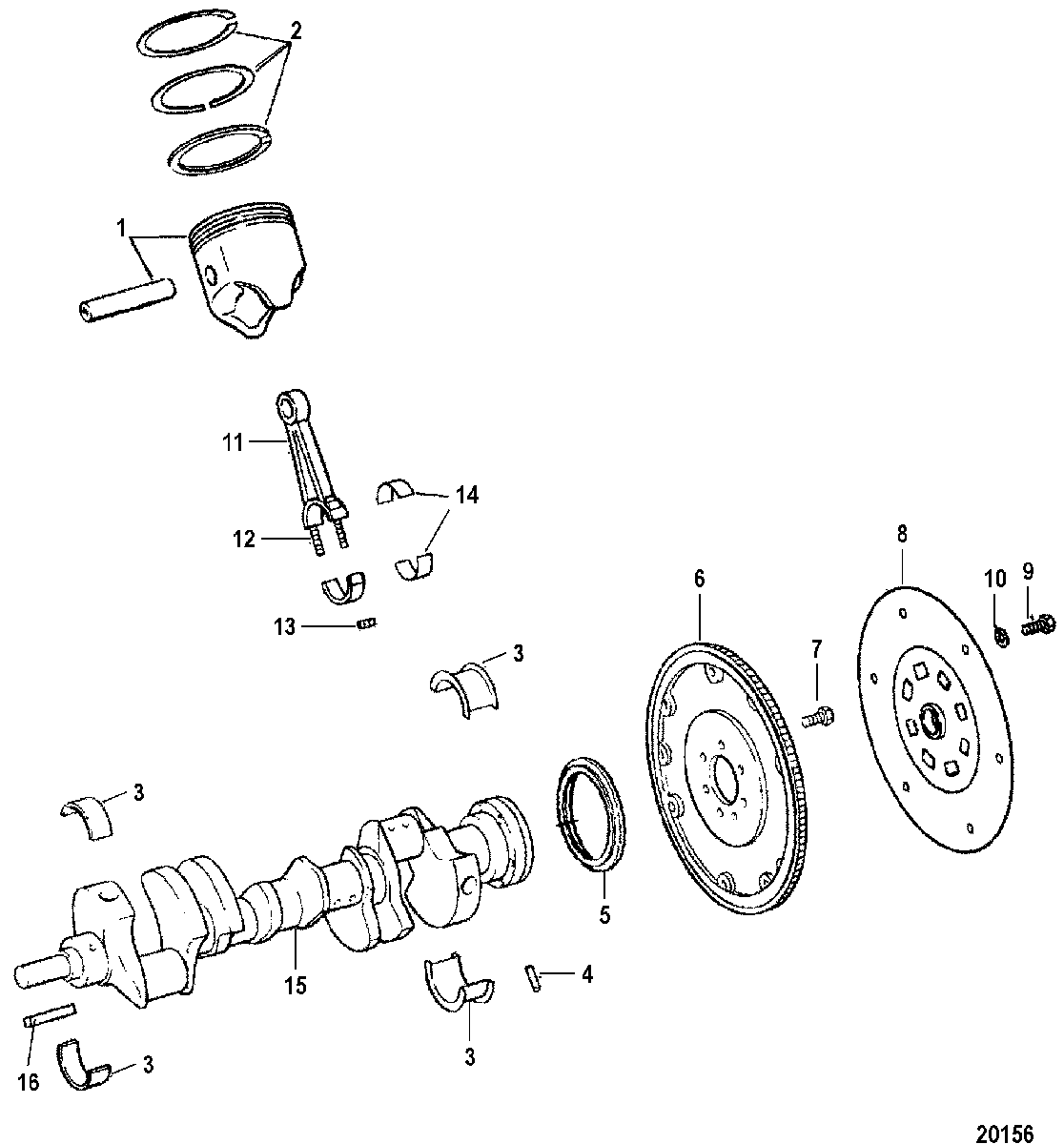

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 1998-2000 0L002006 THRU 0L674613

  • №
    Артикул
    Название
  • 1
    737-881714T PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 1
    737-850449001 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-827651T RING, Piston (STANDARD)
    RING, Piston (STANDARD)
  • 2
    39-850447 RING, Piston (.030 O.S.)
    RING, Piston (.030 O.S.)
  • 3
    23-818473001 BEARING SET, Main - Standard (STANDARD)
    BEARING SET, Main - Standard (STANDARD)
  • 3
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 4
    17-43504 PIN, Dowel (1/4 IN. DIA.)
    PIN, Dowel (1/4 IN. DIA.)
  • 5
    26-811554 SEAL
    SEAL
  • 6
    200-8M0084512 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    860125T DRIVEPLATE ASSEMBLY
    B/W 72 SERIES
    DRIVEPLATE ASSEMBLY
    B/W 72 SERIES
  • 8
    862975A1 DRIVEPLATE ASSEMBLY
    (630 / 5000)
    DRIVEPLATE ASSEMBLY
    (630 / 5000)
  • 9
    10-35091 SCREW, (.375-16 x 1.00)
    B/W 72 SERIES
    SCREW, (.375-16 x 1.00)
    B/W 72 SERIES
  • 9
    10-37612 SCREW, (.375-16 x 1.250)
    (5000)
    SCREW, (.375-16 x 1.250)
    (5000)
  • 9
    13-35048 LOCKWASHER, (.375)
    (630)
    LOCKWASHER, (.375)
    (630)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 12
    10-52192 BOLT
    BOLT
  • 13
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 14
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 14
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 14
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 14
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 15
    429-811551 CRANKSHAFT
    CRANKSHAFT
  • 16
    28-845607 KEY
    KEY
  • -
    27-802567A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
