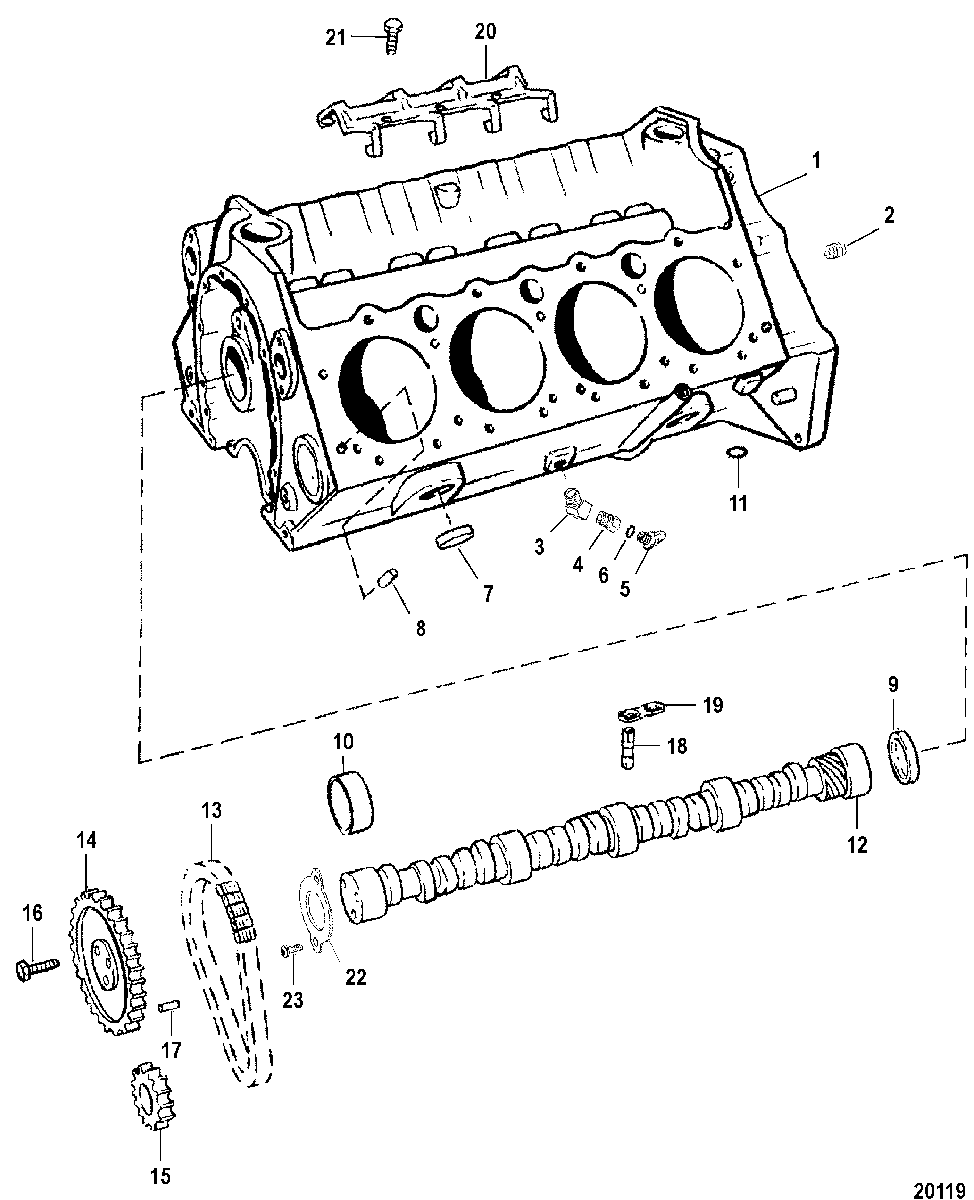

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 1998-2000 0L002006 THRU 0L674613

№

Артикул

Название
1

NSS NOT SOLD SEPARATE, CYLINDER BLOCK
(ORDER LONG BLOCK 861097A1)

NOT SOLD SEPARATE, CYLINDER BLOCK
(ORDER LONG BLOCK 861097A1)
2

22-32561 PLUG, (.250-18 x .41)

PLUG, (.250-18 x .41)
2

22-12524 PLUG, (.375)

PLUG, (.375)
3

22-37682 FITTING, Elbow (45 Degree)

FITTING, Elbow (45 Degree)
4

22-860088 BUSHING

BUSHING
5

22-8M0119211 PLUG KIT, (.500-13) Royal Blue

PLUG KIT, (.500-13) Royal Blue
6

25-32509 O-RING, (.489 x .070)

O-RING, (.489 x .070)
7

19-34270 EXPANSION PLUG, (1.625)

EXPANSION PLUG, (1.625)
8

17-52190 PIN

PIN
9

19-94140 EXPANSION PLUG (REAR CAMSHAFT HOLE)

EXPANSION PLUG (REAR CAMSHAFT HOLE)
10

23-85684 BEARING SET

BEARING SET
11

25-69756 O-RING, (.500 Inch)

O-RING, (.500 Inch)
12

431-850453T CAMSHAFT

CAMSHAFT
13

845796T CHAIN

CHAIN
14

43-845795T SPROCKET
SN# 0L086331 & Below

SPROCKET
SN# 0L086331 & Below
14

43-878056 SPROCKET, CAMSHAFT
SN# 0L86332 & Up

SPROCKET, CAMSHAFT
SN# 0L86332 & Up
15

43-845794T SPROCKET
SN# 0L086331 & Below

SPROCKET
SN# 0L086331 & Below
15

43-878055 SPROCKET
SN# 0L86332 & Up

SPROCKET
SN# 0L86332 & Up
16

10-8M0043993 SCREW, (.312-18 x .750)

SCREW, (.312-18 x .750)
17

17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)

PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
18

850467 LIFTER

LIFTER
19

845754 GUIDE

GUIDE
20

8M0050807 RETAINER

RETAINER
21

10-841389 SCREW, (.312-18 x .625)

SCREW, (.312-18 x .625)
22

845941 RETAINER

RETAINER
23

10-845943 SCREW, (.250-20 x .500)

SCREW, (.250-20 x .500)
NS

845756T SHEILD, Oil Intake

SHEILD, Oil Intake
-

883281R5 MARINE LONG BLOCK

MARINE LONG BLOCK
-

92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue

RTV SILICONE, (3 Ounce Tube) Metallic Blue
-

92-34227Q02 SEALING COMPOUND, (16 Ounce)

SEALING COMPOUND, (16 Ounce)
