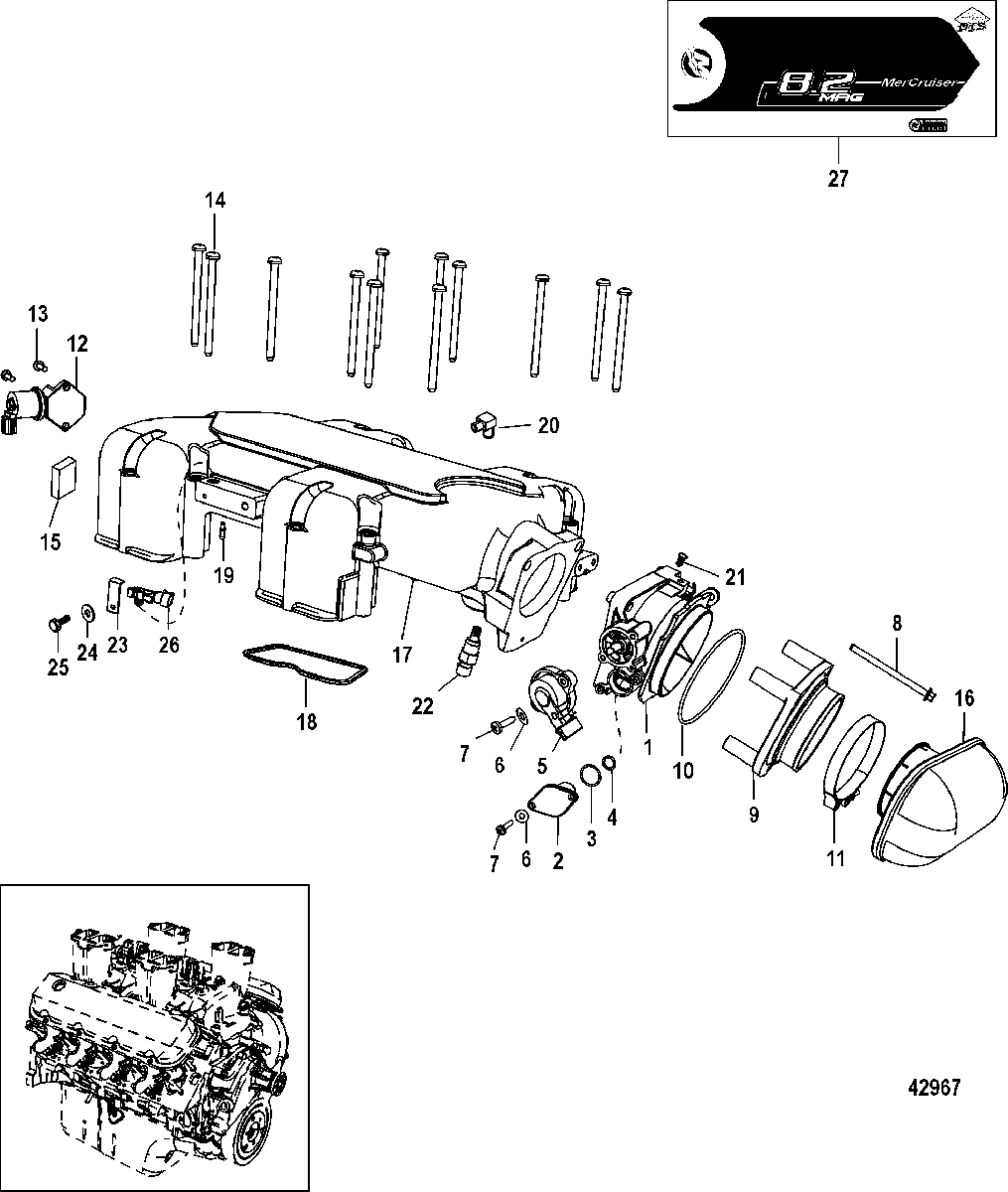

Throttle Body, Mechanical Throttle-Shift для Mercruiser - 8.2L Mag (H.O. Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    8M0045241 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    862999002 PLUG
    PLUG
  • 3
    25-808547 O-RING
    O-RING
  • 4
    25-863006 O-RING
    O-RING
  • 5
    8M0097035 SENSOR, TPS
    SENSOR, TPS
  • 6
    12-11303 WASHER
    WASHER
  • 7
    10-4008612 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 8
    10-88552585 SCREW, (M6 x 85 MM) Stainless Steel
    SCREW, (M6 x 85 MM) Stainless Steel
  • 9
    8M0045765 ADAPTOR, Flame Arrestor
    High Output
    ADAPTOR, Flame Arrestor
    High Output
  • 9
    8M0045766 ADAPTOR, Flame Arrestor
    Base
    ADAPTOR, Flame Arrestor
    Base
  • 10
    25-841807 O-RING, (3.500 x .103)
    O-RING, (3.500 x .103)
  • 11
    54-863393 CLAMP
    CLAMP
  • 12
    8M0045797 VALVE ASSEMBLY, Idle Air
    VALVE ASSEMBLY, Idle Air
  • 13
    10-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
    SCREW, (M6 x 20 MM) Stainless Steel
  • 14
    10-805391 SCREW, (.312-18 x 4.500)
    SCREW, (.312-18 x 4.500)
  • 15
    35-865266 FILTER
    FILTER
  • 16
    8M0113517 FLAME ARRESTOR
    FLAME ARRESTOR
  • 17
    8M0045239 PLENUM ASSEMBLY
    PLENUM ASSEMBLY
  • 18
    8M0044310 SEAL
    SEAL
  • 19
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 20
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 21
    10-8M0022331 SCREW, Ratchet
    SCREW, Ratchet
  • 22
    805223T SENSOR
    SENSOR
  • 23
    8M0061478 BRACKET, MAP Sensor Mount
    BRACKET, MAP Sensor Mount
  • 24
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 25
    10-847401 SCREW, (#10-24 x .380)
    SCREW, (#10-24 x .380)
  • 26
    854445 SENSOR, MAP
    SENSOR, MAP
  • 27
    37-8M0045436 DECAL SET, 8.2L Base, Plenum
    DECAL SET, 8.2L Base, Plenum
  • 27
    37-8M0045437 DECAL SET, 8.2L High Output, Plenum
    DECAL SET, 8.2L High Output, Plenum
  • 27
    37-8M0045438 DECAL SET, 8.2L Base (SeaCore), Plenum
    DECAL SET, 8.2L Base (SeaCore), Plenum
  • 27
    37-8M0045439 DECAL SET, 8.2L High Output (SeaCore), Plenum
    DECAL SET, 8.2L High Output (SeaCore), Plenum
  • 28
    25-8M2001671 GROMMET
    GROMMET
  • 29
    25-828249 GROMMET
    GROMMET
  • 30
    8M0070932 BRACKET
    BRACKET
  • 31
    98-8M0070740 COVER ASSEMBLY
    COVER ASSEMBLY
  • 32
    37-8M0056663 DECAL, Silencer
    DECAL, Silencer
