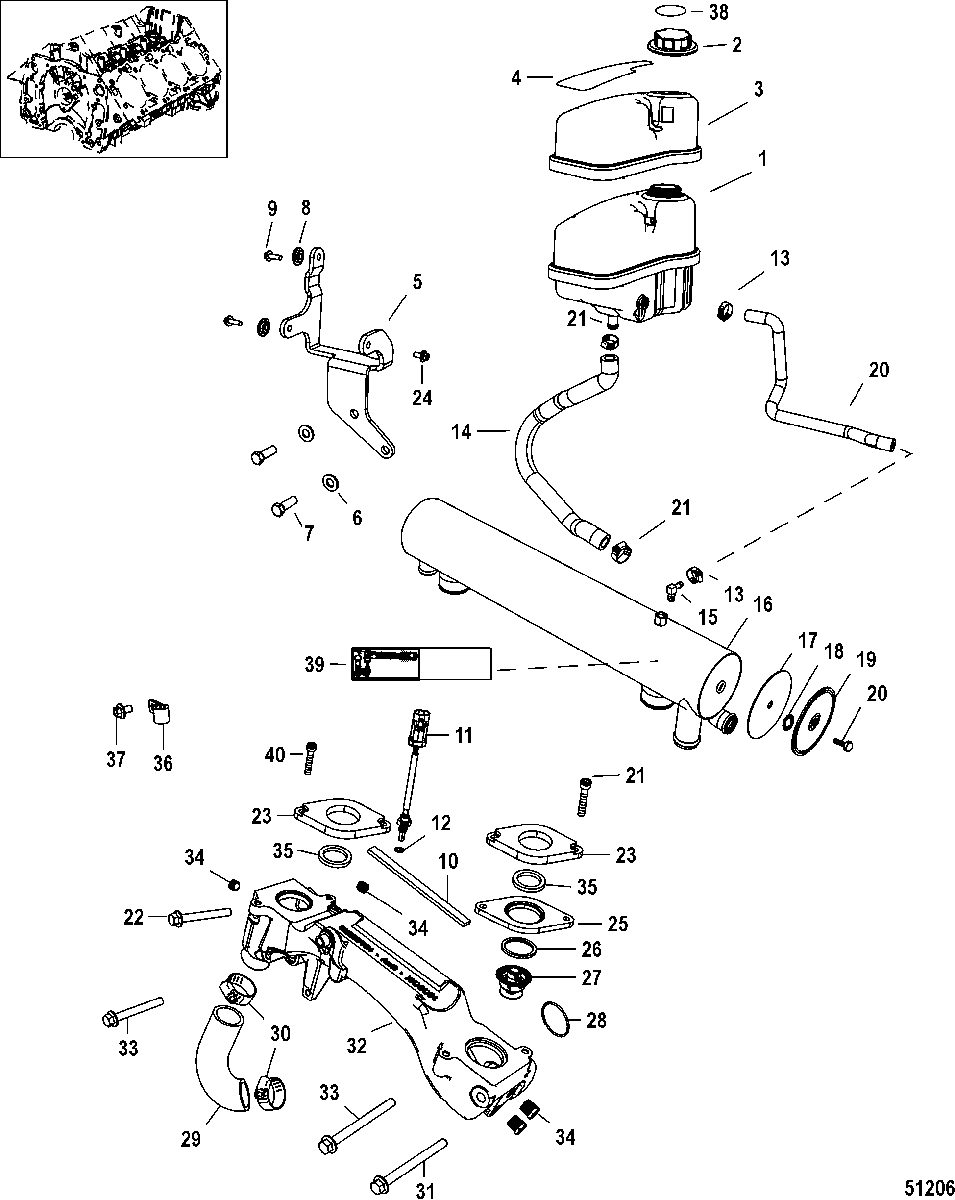

Cooling System, Fresh Water Components (2A041665 & up) для Mercruiser - 8.2L Mag (H.O. Model) 1A351597 & Up
-
№АртикулНазвание
-
18M0070210 RESERVIOR, CoolantRESERVIOR, Coolant
-
2862863 CAP, Coolant ReservoirCAP, Coolant Reservoir
-
38M0070890 COVERCOVER
-
437-8M0034675 DECAL
Base SN# 2A184329 & BelowDECAL
Base SN# 2A184329 & Below -
437-8M0029391 DECAL
Base SN# 2A184330 & UpDECAL
Base SN# 2A184330 & Up -
437-8M0034676 DECAL
H.O.DECAL
H.O. -
58M0070211 BRACKET, ReservoirBRACKET, Reservoir
-
612-27025 WASHERWASHER
-
710-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
823-8M2022695 SPACERSPACER
-
910-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
10843155001 FOAM STRIP (6.500 Inches)FOAM STRIP (6.500 Inches)
-
11885342002 SENSOR ASSEMBLY, Water TemperatureSENSOR ASSEMBLY, Water Temperature
-
1225-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1354-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
1432-8M2017665 HOSE, Reservoir to Circulating PumpHOSE, Reservoir to Circulating Pump
-
1522-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
168M0095815 HEAT EXCHANGERHEAT EXCHANGER
-
1727-891716 GASKETGASKET
-
1825-8M0039163 O-RING, (3/8 x 1/8)O-RING, (3/8 x 1/8)
-
19891717 COVERCOVER
-
2010-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2110-4010730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2210-8M2017380 SCREW, (.4375-14 x 5.5)SCREW, (.4375-14 x 5.5)
-
238M0075813 PLATE, Heat ExchangerPLATE, Heat Exchanger
-
2410-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
258M0081454 PLATE, Heat ExchangerPLATE, Heat Exchanger
-
2625-8071341 SEAL, ThermostatSEAL, Thermostat
-
278M0045990 THERMOSTATTHERMOSTAT
-
2825-30529 O-RING, (1.925 x .103)O-RING, (1.925 x .103)
-
2932-8M2019704 HOSE, Crossover to Circulating PumpHOSE, Crossover to Circulating Pump
-
3054-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
3110-8M0043100 SCREW, (7/16-14 x 5.0), Crossover PortSCREW, (7/16-14 x 5.0), Crossover Port
-
328M0045236 CROSSOVERCROSSOVER
-
3310-8M0043101 SCREW, (7/16-14 X 3.5), Lower CrossoverSCREW, (7/16-14 X 3.5), Lower Crossover
-
3422-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
3525-20295 QUAD RING, 1.725 x .210QUAD RING, 1.725 x .210
-
3654-65653 CLIPCLIP
-
3710-4010612 SCREW, (M6 x 12) Stainless SteelSCREW, (M6 x 12) Stainless Steel
-
3837-8M2017891 DECAL, Engine CoolantDECAL, Engine Coolant
-
3937-8M0071123 DECALDECAL
-
4010-4010730 SCREW, (M8 x 30)SCREW, (M8 x 30)
