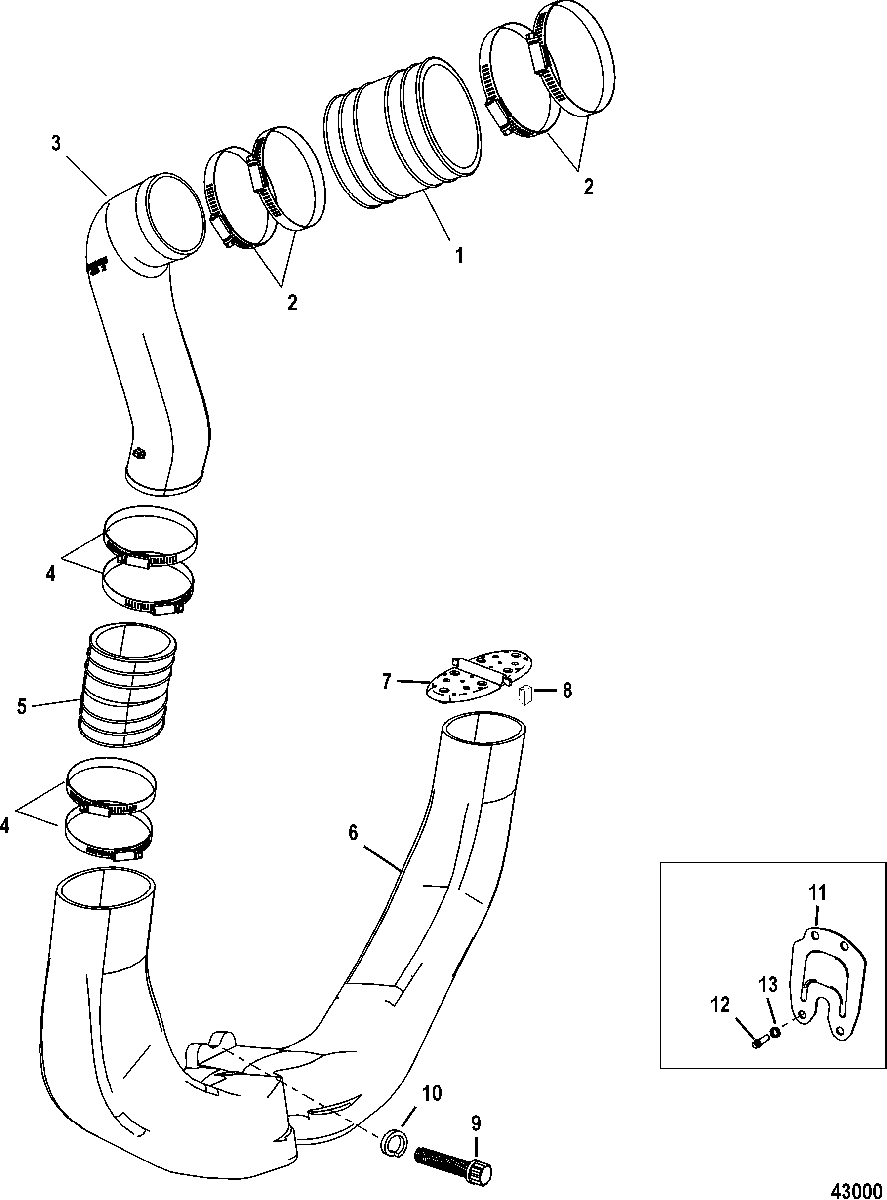

Exhaust System Components для Mercruiser - 8.2L Mag (H.O. Model) 1A351597 & Up

  • №
    Артикул
    Название
  • 1
    32-44348001 TUBE, Exhaust
    TUBE, Exhaust
  • 2
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 3
    44267A02 ELBOW KIT, Intermediate (2 - 8 Inch Riser)
    ELBOW KIT, Intermediate (2 - 8 Inch Riser)
  • 4
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    32-14358001 TUBE, Exhaust
    SN# 2A041664 & Below
    TUBE, Exhaust
    SN# 2A041664 & Below
  • 5
    32-8M2023884 HOSE, 3.75 X 8.00
    SN# 2A041665 & Up
    HOSE, 3.75 X 8.00
    SN# 2A041665 & Up
  • 6
    8M0115149 PIPE, Exhaust
    PIPE, Exhaust
  • 7
    807166A1 SHUTTER ASSEMBLY, Water
    SHUTTER ASSEMBLY, Water
  • 8
    25-807167 GROMMET
    GROMMET
  • 9
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 10
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    861776A2 PLATE KIT
    Through Transome Exhaust
    PLATE KIT
    Through Transome Exhaust
  • 12
    10-8M0113180 SCREW, (.375-16 x 1.00)
    Through Transom Exhaust
    SCREW, (.375-16 x 1.00)
    Through Transom Exhaust
  • 13
    13-41471 LOCKWASHER, (.375)
    Through Transom Exhaust
    LOCKWASHER, (.375)
    Through Transom Exhaust
