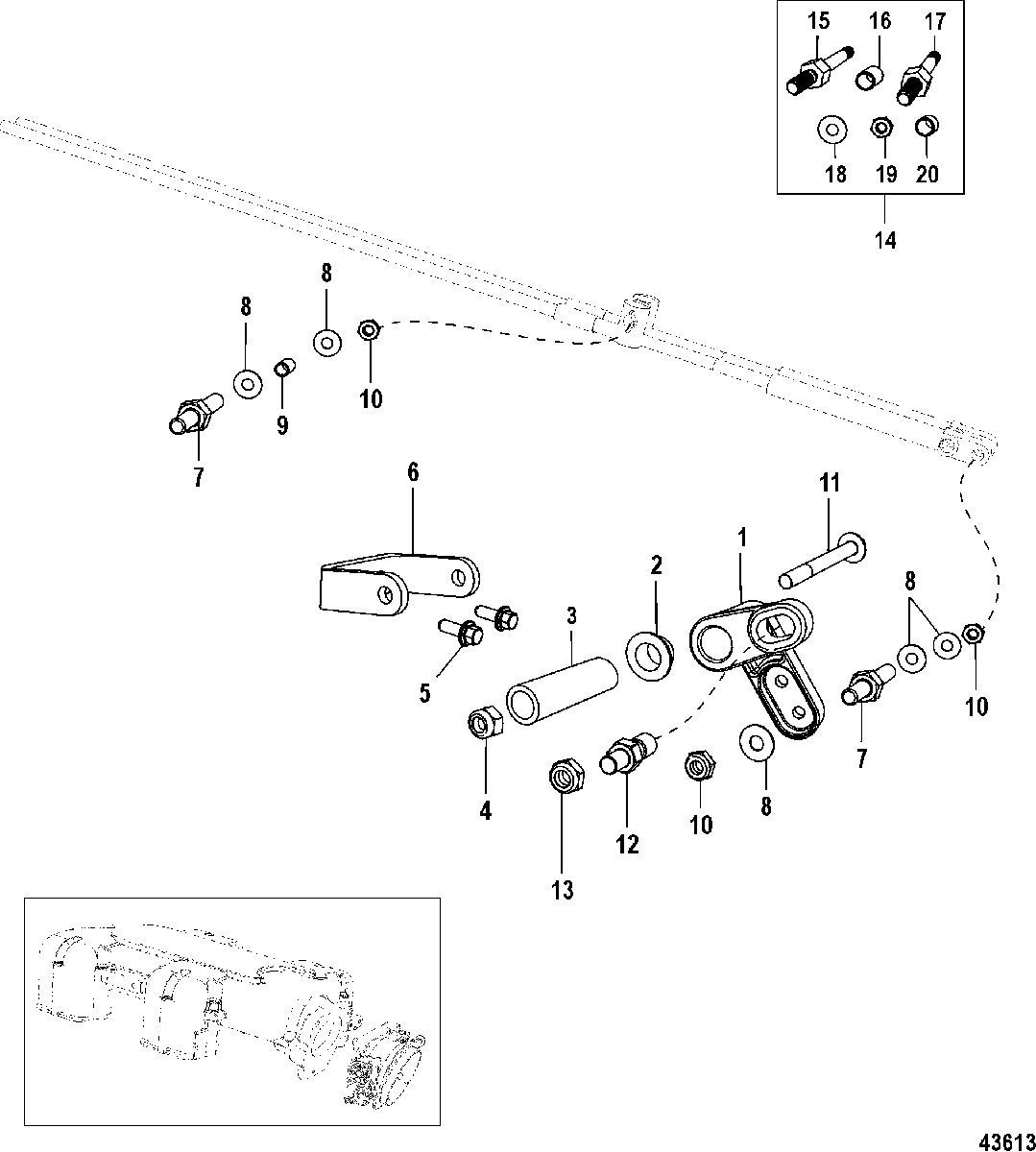

Throttle Lever Assembly, Mechanical Throttle-Shift для Mercruiser - 8.2L Mag EC (H.O. Model) 2A041665 THRU 2A051740
-
№АртикулНазвание
-
18M0044205 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
223-841238 BUSHINGBUSHING
-
323-8M0042528 BUSHINGBUSHING
-
411-826365 NUT, (M8)NUT, (M8)
-
510-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
68M0046459 BRACKET, Throttle LeverBRACKET, Throttle Lever
-
716-8M0045152 STUD, Special (1.925 Inches), Throttle CableSTUD, Special (1.925 Inches), Throttle Cable
-
812-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
923-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
1011-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1110-4010775 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
128M0043740 ROLLER ASSEMBLY, ThrottleROLLER ASSEMBLY, Throttle
-
1311-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
148M0046250 THROTTLE/SHIFT KIT, Two Station
(Twin Engines Require Two Kits)THROTTLE/SHIFT KIT, Two Station
(Twin Engines Require Two Kits) -
1516-8M0045150 STUD, Special (2.535 Inches)STUD, Special (2.535 Inches)
-
1623-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
1716-8M0045143 STUD, Special (2.23 Inches)STUD, Special (2.23 Inches)
-
1812-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
1911-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
2023-8M0045155 SPACER, (0.26 x 0.50 x 0.24)SPACER, (0.26 x 0.50 x 0.24)
