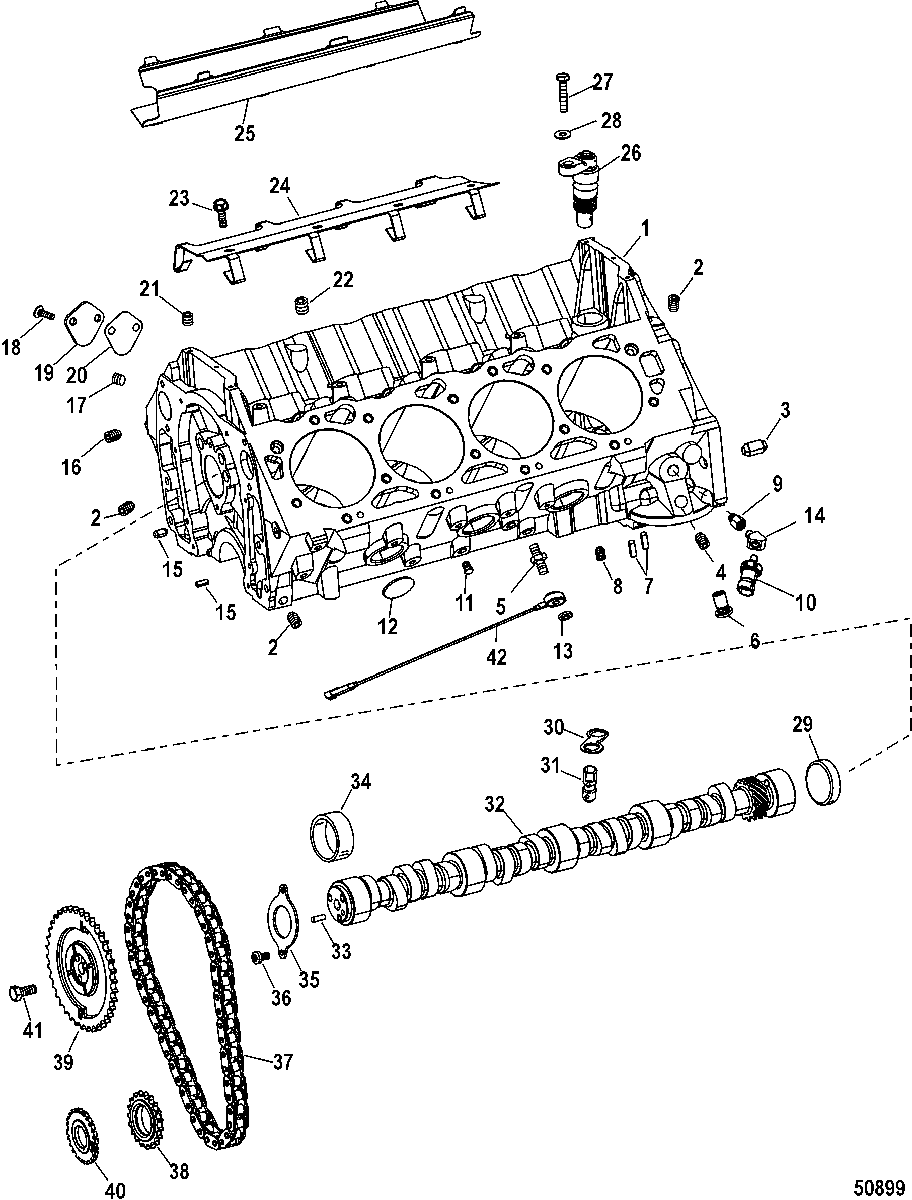

Cylinder Block And Camshaft для Mercruiser - 8.2L Mag EC (H.O. Model) 2A041665 THRU 2A051740

  • №
    Артикул
    Название
  • -
    8M0074038 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • 1
    NSS NOT SOLD SEPARATE, BLOCK
    (Order Longblock Assembly)
    NOT SOLD SEPARATE, BLOCK
    (Order Longblock Assembly)
  • 2
    22-32561 PLUG, Pipe - Allen Head (.250-18)
    PLUG, Pipe - Allen Head (.250-18)
  • 3
    17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing
    PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing
  • 4
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 5
    16-862915 STUD, (.250-18/M10 Special)
    STUD, (.250-18/M10 Special)
  • 6
    8M0044048 VALVE ASSEMBLY, Pressure Relief
    VALVE ASSEMBLY, Pressure Relief
  • 7
    17-843378 PIN, Dowel (.250) Bottom Of Block
    PIN, Dowel (.250) Bottom Of Block
  • 8
    22-36373 PLUG, (.375-18) Hex - Steel
    - NOTE: Bottom Of Block Oil Plug
    PLUG, (.375-18) Hex - Steel
    - NOTE: Bottom Of Block Oil Plug
  • 8
    22-36373 PLUG, (.375-18) Hex - Steel
    - NOTE: Rear Of Block Oil Plugs
    PLUG, (.375-18) Hex - Steel
    - NOTE: Rear Of Block Oil Plugs
  • 9
    22-64013 FITTING, (.375 Male To .125 Female)
    FITTING, (.375 Male To .125 Female)
  • 10
    881879T11 SENSOR, Pressure (0 - 100 PSI)
    SENSOR, Pressure (0 - 100 PSI)
  • 11
    22-36382 FITTING, (.250-18 x .62) Brass, Lower Side Of Block
    FITTING, (.250-18 x .62) Brass, Lower Side Of Block
  • 12
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 13
    11-826292 NUT, (M10) Brass/Nickel Plated
    MCM
    NUT, (M10) Brass/Nickel Plated
    MCM
  • 14
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 15
    17-843378 PIN, Dowel (.250) Timing Cover
    PIN, Dowel (.250) Timing Cover
  • 16
    22-8M0044324 PLUG, (1/4 Inch), Pipe
    PLUG, (1/4 Inch), Pipe
  • 17
    22-36373 PLUG, (.375-18) Hex - Steel
    PLUG, (.375-18) Hex - Steel
  • 21
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 22
    22-479452 PLUG, Oil Gallery
    PLUG, Oil Gallery
  • 23
    10-8M0044047 SCREW, (.312-18 x .62), Lifter Guide Retainer to Block
    SCREW, (.312-18 x .62), Lifter Guide Retainer to Block
  • 24
    8M0050807 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 25
    845756T SHEILD, Oil Intake
    SHEILD, Oil Intake
  • 26
    8M0114791 DRIVE, Oil Pump
    DRIVE, Oil Pump
  • 27
    10-8M0043925 SCREW, (.312-18 x 1.0), Oil Pump Driver to Block
    SCREW, (.312-18 x 1.0), Oil Pump Driver to Block
  • 28
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 29
    19-94140 EXPANSION PLUG
    EXPANSION PLUG
  • 30
    845754 GUIDE, Lifter
    GUIDE, Lifter
  • 31
    849947T01 LIFTER
    LIFTER
  • 32
    400-8M0046343 CAMSHAFT
    CAMSHAFT
  • 33
    17-8M0058586 PIN, Dowel
    PIN, Dowel
  • 34
    23-85684 BEARING SET
    BEARING SET
  • 35
    845941 RETAINER, Gear Thrust
    RETAINER, Gear Thrust
  • 36
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 37
    8M0045987 CHAIN, Timing
    CHAIN, Timing
  • 38
    43-843004 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 39
    8M0117487 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 40
    8M0050760 WHEEL, Sensor Target
    WHEEL, Sensor Target
  • 41
    10-8M0043993 SCREW, (.312-18 x.75), Camshaft Spocket to Camshaft
    SCREW, (.312-18 x.75), Camshaft Spocket to Camshaft
  • 42
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
