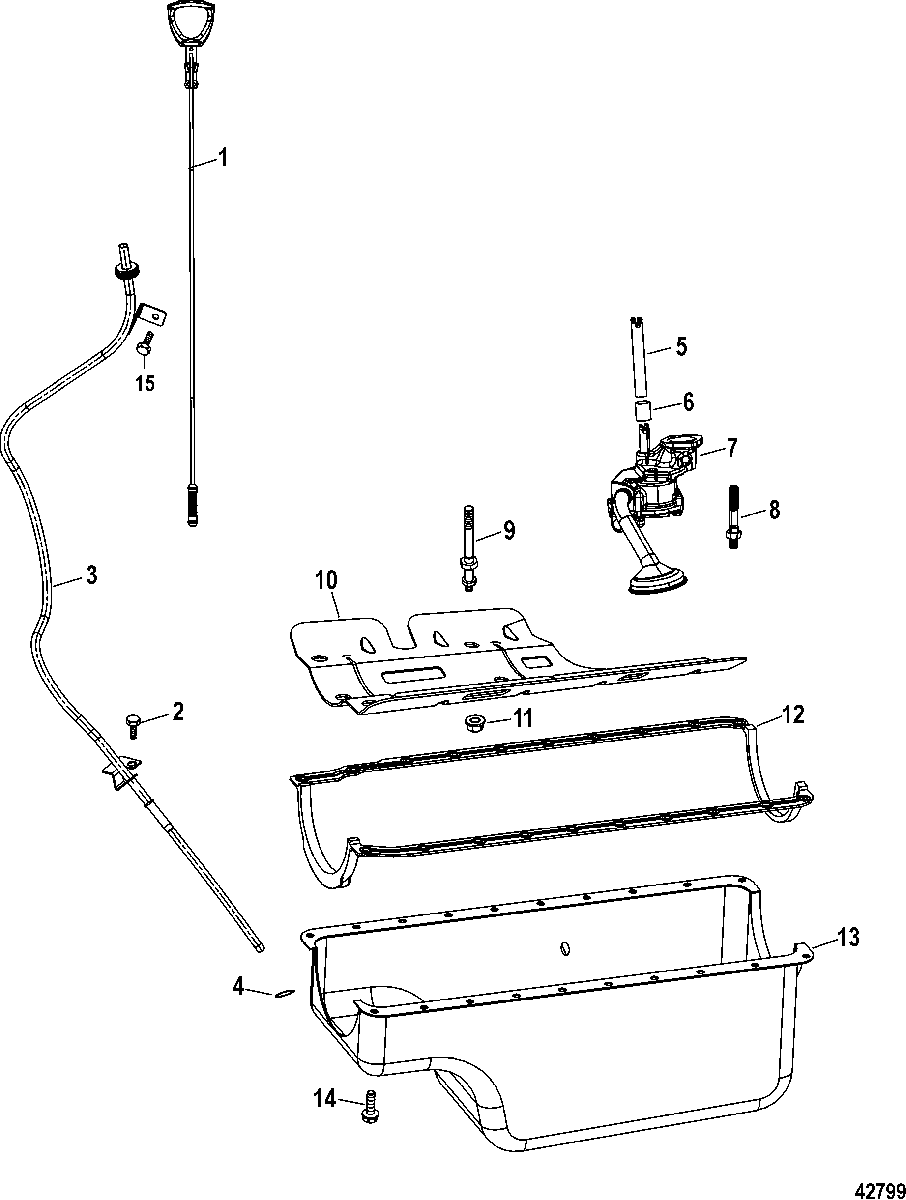

Oil Pan And Oil Pump для Mercruiser - 8.2L Mag EC (H.O. Model) 2A041665 THRU 2A051740

  • №
    Артикул
    Название
  • 1
    8M0070212 DIPSTICK, Oil level
    DIPSTICK, Oil level
  • 2
    10-98257 SCREW, (.312-18 x .500), Dipstick Tube to Block, Bottom
    SCREW, (.312-18 x .500), Dipstick Tube to Block, Bottom
  • 3
    32-8M2021697 TUBE ASSEMBLY, Dipstick
    TUBE ASSEMBLY, Dipstick
  • 4
    25-62704 O-RING, (.362 x .103)
    O-RING, (.362 x .103)
  • 5
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 6
    23-36183 RETAINER
    RETAINER
  • 7
    8M0051418 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 8
    16-845599 STUD, (.375-16/.438-14 x 3.00)
    STUD, (.375-16/.438-14 x 3.00)
  • 9
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 10
    843945T WINDAGE TRAY, Oil Deflector
    WINDAGE TRAY, Oil Deflector
  • 11
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    27-845628 GASKET, Oil Pan
    GASKET, Oil Pan
  • 13
    845668T PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 14
    10-841389 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 15
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
