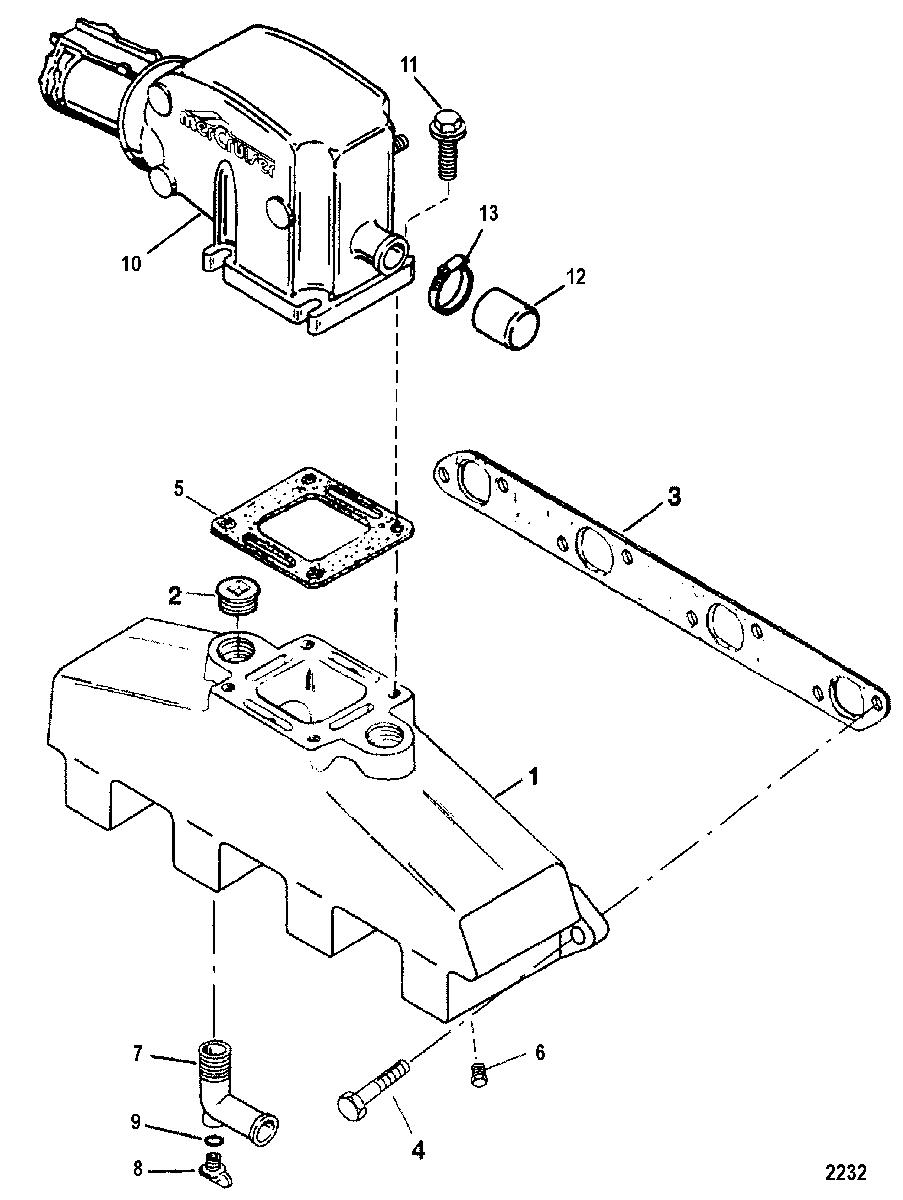

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 0F602010 THRU 0F801999

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4 IN.)
    SCREW, (.375-16 x 1.250) (1-1/4 IN.)
  • 5
    27-863724 GASKET
    GASKET
  • 6
    22-73379 PLUG, (.250-18) (1/4-18)
    PLUG, (.250-18) (1/4-18)
  • 7
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 9
    25-32509 QUAD RING
    QUAD RING
  • 10
    816900A5 ELBOW ASSEMBLY, Exhaust (PORT)
    ELBOW ASSEMBLY, Exhaust (PORT)
  • 10
    816900A9 ELBOW ASSEMBLY (STARBOARD)
    ELBOW ASSEMBLY (STARBOARD)
  • 11
    10-865982005 SCREW, (.375-16 x 1.00) (1 IN.)
    SCREW, (.375-16 x 1.00) (1 IN.)
  • 11
    10-98534 SCREW, (.375-16 x 2.30) (2-1/2 IN.)
    SCREW, (.375-16 x 2.30) (2-1/2 IN.)
  • 12
    19-805727001 CAP, Rubber
    CAP, Rubber
  • 13
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    93320A14 RISER KIT, Exhaust (3.00 Inch) (3 IN.)
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (3.00 Inch) (3 IN.)
    EACH KIT CONTAINS 2 RISERS
  • -
    807477A5 RISER KIT, Exhaust (6.00 Inch) (6 IN.)
    EACH KIT CONTAINS 2 RISERS
    RISER KIT, Exhaust (6.00 Inch) (6 IN.)
    EACH KIT CONTAINS 2 RISERS
  • -
    27-805396A95 GASKET SET
    GASKET SET
