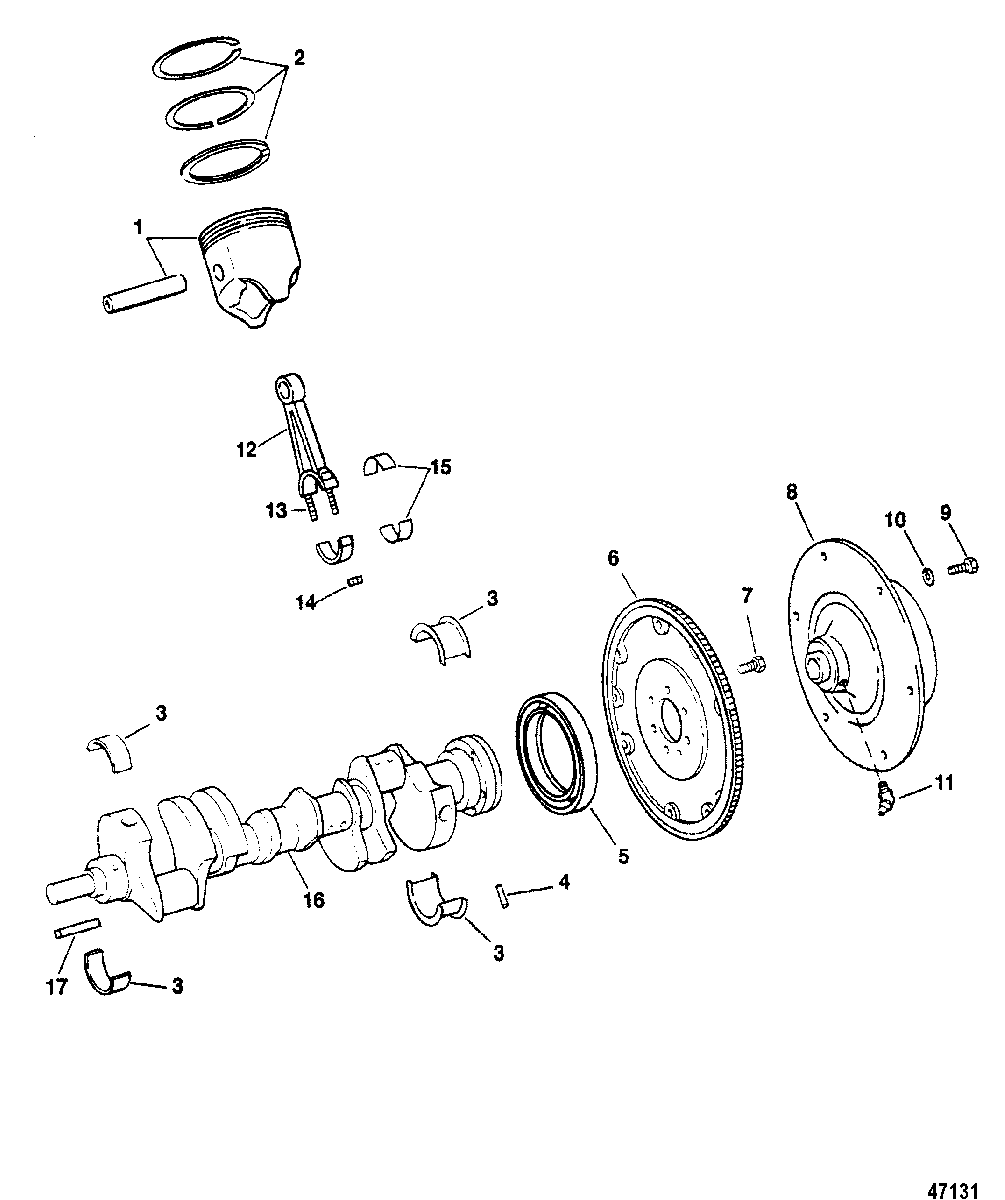

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 0F602010 THRU 0F801999

  • №
    Артикул
    Название
  • 1
    737-881714T PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 2
    737-850449001 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-827651T RING, Piston (STANDARD)
    RING, Piston (STANDARD)
  • 3
    39-850447 RING, Piston (.030 O.S.)
    RING, Piston (.030 O.S.)
  • 3
    23-818473001 BEARING SET, Main - Standard (STANDARD)
    BEARING SET, Main - Standard (STANDARD)
  • 3
    23-818474 BEARING SET, Main - .001 Undersize (.001 USA)
    BEARING SET, Main - .001 Undersize (.001 USA)
  • 3
    23-818475 BEARING SET, Main - .002 Undersize (.002 USA)
    BEARING SET, Main - .002 Undersize (.002 USA)
  • 3
    23-818476001 BEARING SET, Main - .010 Undersize (.010 USA)
    BEARING SET, Main - .010 Undersize (.010 USA)
  • 3
    23-818477 BEARING SET, Main - .020 Undersize (.020 USA)
    BEARING SET, Main - .020 Undersize (.020 USA)
  • 4
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
  • 5
    26-811554 SEAL
    SEAL
  • 6
    230-811562T FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    8M0098795 COUPLER ASSEMBLY, Engine
    COUPLER ASSEMBLY, Engine
  • 9
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 10
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 11
    22-49099 FITTING
    FITTING
  • 12
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 13
    10-52192 BOLT
    BOLT
  • 14
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 15
    23-85726001 BEARING SET, Connecting Rod - Standard (STANDARD)
    BEARING SET, Connecting Rod - Standard (STANDARD)
  • 15
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize) (PAIR - .001 USA)
    BEARING SET, Connecting Rod - (.001 Undersize) (PAIR - .001 USA)
  • 15
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize) (PAIR - .002 USA)
    BEARING SET, Connecting Rod - (.002 Undersize) (PAIR - .002 USA)
  • 15
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize) (PAIR - .010 USA)
    BEARING SET, Connecting Rod - (.010 Undersize) (PAIR - .010 USA)
  • 15
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize) (PAIR - .020 USA)
    BEARING SET, Connecting Rod - (.020 Undersize) (PAIR - .020 USA)
  • 16
    429-811551 CRANKSHAFT
    CRANKSHAFT
  • 17
    28-845607 KEY
    KEY
  • -
    27-805396A95 GASKET SET
    GASKET SET
