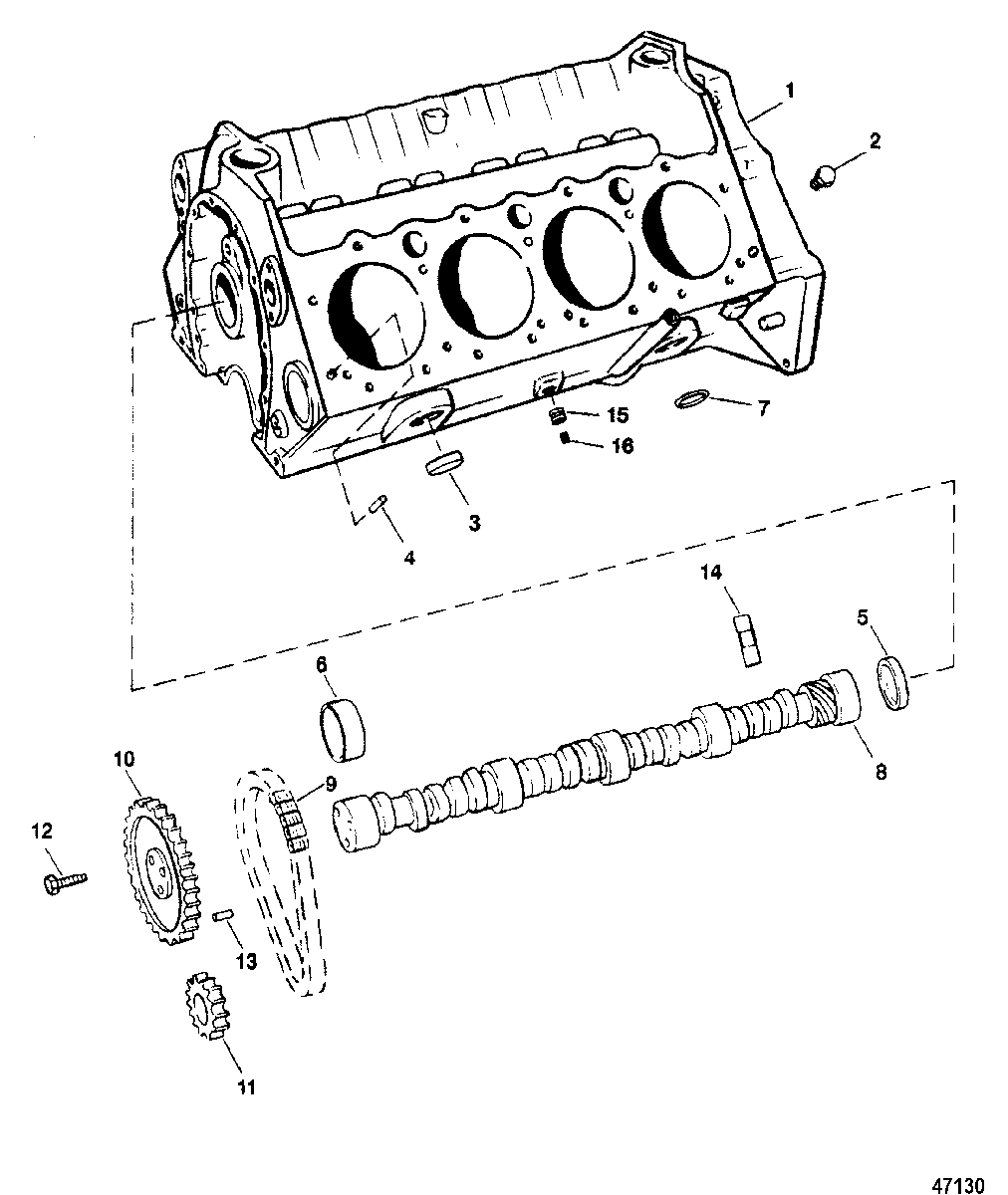

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 0F602010 THRU 0F801999

  • №
    Артикул
    Название
  • 1
    N.S.S. Not Sold Separate
    Not Sold Separate
  • 2
    22-32561 PLUG, (.250-18 x .41) (1/4 IN.)
    PLUG, (.250-18 x .41) (1/4 IN.)
  • 2
    22-12524 PLUG, (.375) (3/8 IN.)
    PLUG, (.375) (3/8 IN.)
  • 3
    19-34270 EXPANSION PLUG, (1.625), Expansion (1-5/8 IN. DIA.)
    EXPANSION PLUG, (1.625), Expansion (1-5/8 IN. DIA.)
  • 4
    17-52190 PIN
    PIN
  • 5
    19-94140 EXPANSION PLUG
    EXPANSION PLUG
  • 6
    23-85684 BEARING SET
    BEARING SET
  • 7
    25-69756 O-RING, (.500 Inch) (1/2 IN.)
    O-RING, (.500 Inch) (1/2 IN.)
  • 8
    431-4734 CAMSHAFT
    CAMSHAFT
  • 9
    845796T CHAIN
    CHAIN
  • 10
    43-811578 SPROCKET
    SPROCKET
  • 11
    43-845794T SPROCKET
    SPROCKET
  • 12
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 13
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
  • 14
    811584 LIFTER
    LIFTER
  • 15
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 16
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • -
    806351R5 MARINE LONG BLOCK ENGINE (SEE NOTE)
    MARINE LONG BLOCK ENGINE (SEE NOTE)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
