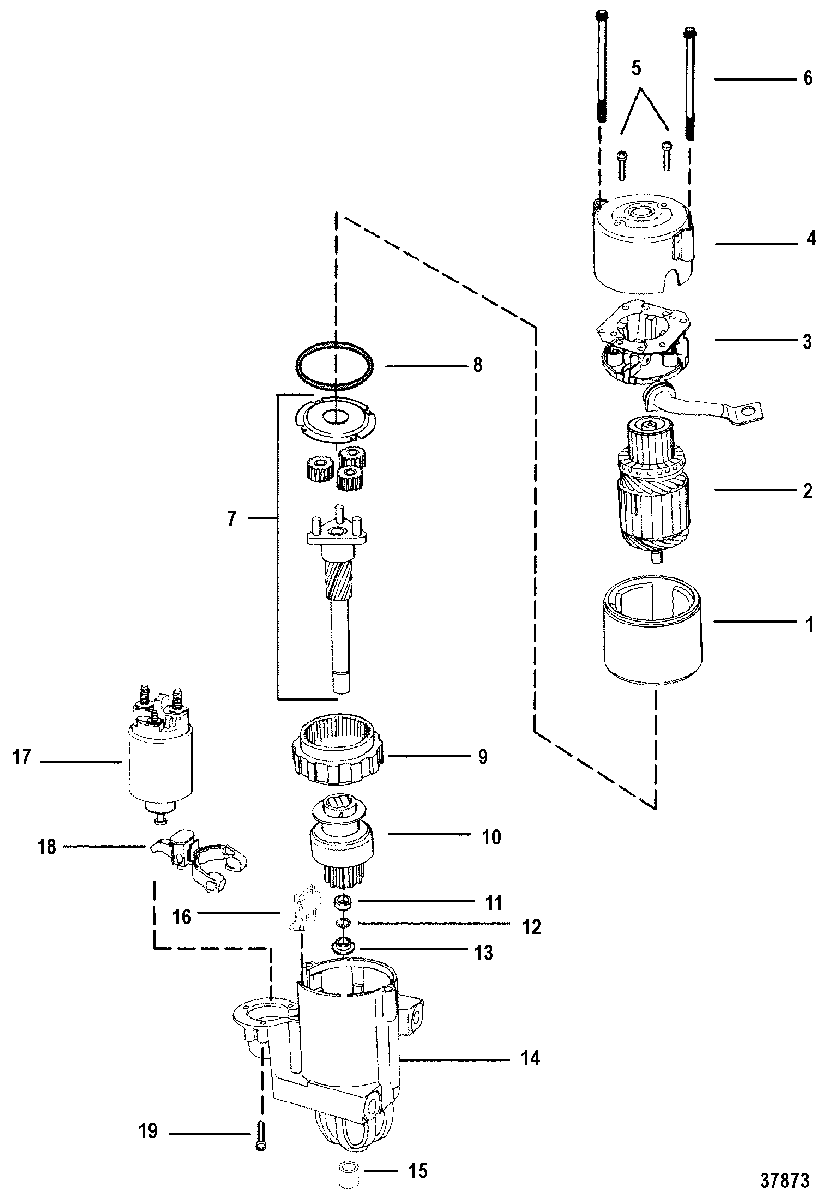

STARTER MOTOR(PG260) для Mercruiser - 502 MAG. MPI (GEN VI) GM 502 V-8 1996 0F802600 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, ARMATURE
    NOT SOLD SEPARATE, ARMATURE
  • 3
    NSS NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING
    NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING
  • 4
    NSS NOT SOLD SEPARATE, FRAME
    NOT SOLD SEPARATE, FRAME
  • 5
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 6
    NSS NOT SOLD SEPARATE, BOLT, Thru
    NOT SOLD SEPARATE, BOLT, Thru
  • 7
    NSS NOT SOLD SEPARATE, SHAFT AND GEAR
    NOT SOLD SEPARATE, SHAFT AND GEAR
  • 8
    NSS NOT SOLD SEPARATE, GASKET
    NOT SOLD SEPARATE, GASKET
  • 9
    NSS NOT SOLD SEPARATE, GEAR
    NOT SOLD SEPARATE, GEAR
  • 10
    NSS NOT SOLD SEPARATE, DRIVE
    NOT SOLD SEPARATE, DRIVE
  • 11
    33291 COLLAR
    COLLAR
  • 12
    53-33290 RING, Retaining
    RING, Retaining
  • 13
    NSS NOT SOLD SEPARATE, COLLAR, Thrust
    NOT SOLD SEPARATE, COLLAR, Thrust
  • 14
    809459 HOUSING
    HOUSING
  • 15
    23-814476 BUSHING
    BUSHING
  • 16
    NSS NOT SOLD SEPARATE, GROMMET
    NOT SOLD SEPARATE, GROMMET
  • 17
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 18
    NSS NOT SOLD SEPARATE, LEVER
    NOT SOLD SEPARATE, LEVER
  • 19
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
