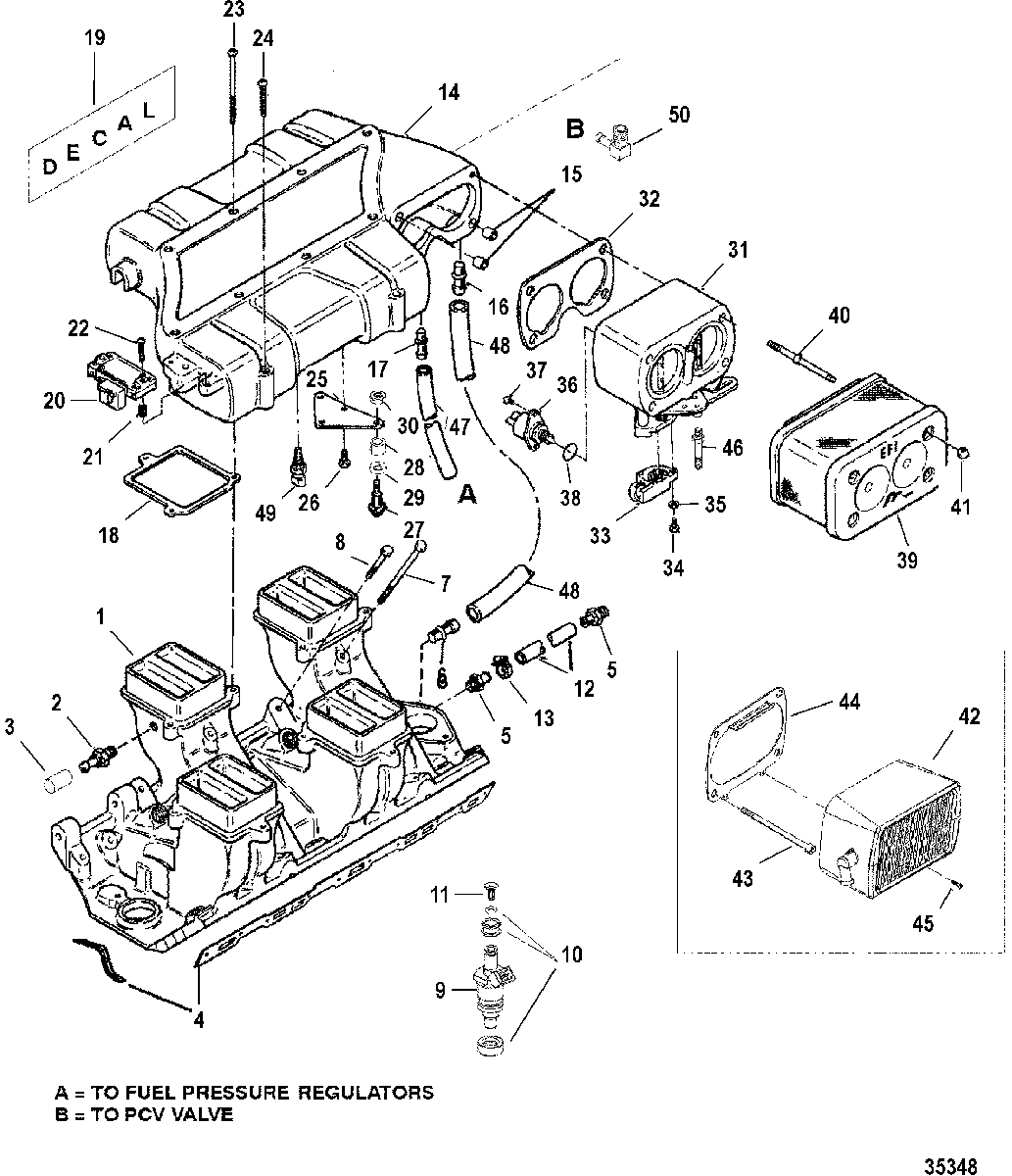

INTAKE MANIFOLD AND INTAKE PLENUM для Mercruiser - 502 MAG. MPI (GEN VI) GM 502 V-8 1996 0F802600 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805233A6 MANIFOLD ASSEMBLY, Intake
    Use With VST Fuel System SN# 0K147349 & Below
    MANIFOLD ASSEMBLY, Intake
    Use With VST Fuel System SN# 0K147349 & Below
  • 1
    8M0090767 MANIFOLD ASSEMBLY, Intake
    Use With Cool Fuel System SN# 0K147350 & Up
    MANIFOLD ASSEMBLY, Intake
    Use With Cool Fuel System SN# 0K147350 & Up
  • 2
    22-805691 FITTING, (.250) Barb
    FITTING, (.250) Barb
  • 4
    27-805403A1 GASKET SET
    GASKET SET
  • 5
    22-806242 CONNECTOR
    CONNECTOR
  • 6
    22-805519 FITTING, Barb (.250 Inch)
    FITTING, Barb (.250 Inch)
  • 7
    10-807640 SCREW, (.375-16 x 5.5) (3/8-16 x 5-1/2 in.)
    SCREW, (.375-16 x 5.5) (3/8-16 x 5-1/2 in.)
  • 8
    10-807641 SCREW, (.375-16 x 1.75) (3/8-16 x 1-3/4 in.)
    SCREW, (.375-16 x 1.75) (3/8-16 x 1-3/4 in.)
  • 9
    805225A1 INJECTOR ASSEMBLY, Fuel
    INJECTOR ASSEMBLY, Fuel
  • 10
    25-805511A1 SEALING KIT, Fuel Injector
    SEALING KIT, Fuel Injector
  • 11
    35-17422 FILTER
    FILTER
  • 12
    32-8059871 HOSE, Water Pump To Intake Manifold, Bypass
    HOSE, Water Pump To Intake Manifold, Bypass
  • 13
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 14
    805240A1 PLENUM ASSEMBLY, Intake
    PLENUM ASSEMBLY, Intake
  • 15
    23-52698 SLEEVE
    SLEEVE
  • 16
    22-805519 FITTING, Barb (.250 Inch)
    FITTING, Barb (.250 Inch)
  • 17
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 18
    27-805522A1 GASKET SET
    GASKET SET
  • 19
    37-82381610 DECAL
    (454 MAGNUM)
    DECAL
    (454 MAGNUM)
  • 19
    37-82381611 DECAL
    (502 MAGNUM)
    DECAL
    (502 MAGNUM)
  • 20
    864856A1 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 21
    26-805412 SEAL
    SEAL
  • 22
    10-807120 SCREW, (#10-24 x 1.00)
    SCREW, (#10-24 x 1.00)
  • 23
    10-805391 SCREW, (.312-18 x 4.500)
    SCREW, (.312-18 x 4.500)
  • 24
    10-805390 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 25
    805413T BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 26
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 27
    10-96430 SHOULDER SCREW
    SHOULDER SCREW
  • 30
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 31
    805243A12 THROTTLE BODY ASSEMBLY
    (VST FUEL SYSTEM) SN# 0K147349 & Below
    THROTTLE BODY ASSEMBLY
    (VST FUEL SYSTEM) SN# 0K147349 & Below
  • 31
    860204A5 THROTTLE BODY ASSEMBLY
    (FUEL COOLED SYSTEM) SN# 0K147350 & Up
    THROTTLE BODY ASSEMBLY
    (FUEL COOLED SYSTEM) SN# 0K147350 & Up
  • 32
    27-805396 GASKET, Throttle Body
    GASKET, Throttle Body
  • 33
    805226A1 SENSOR ASSEMBLY, TPS
    SENSOR ASSEMBLY, TPS
  • 34
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 35
    12-28001 WASHER, (.188 x .438 x .049)
    WASHER, (.188 x .438 x .049)
  • 36
    805224A1 MOTOR ASSEMBLY, IAC
    MOTOR ASSEMBLY, IAC
  • 37
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 38
    25-808547 O-RING
    O-RING
  • 39
    807656A2 FLAME ARRESTOR
    METAL FLAME ARRESTOR
    FLAME ARRESTOR
    METAL FLAME ARRESTOR
  • 40
    16-805399 STUD
    METAL FLAME ARRESTOR
    STUD
    METAL FLAME ARRESTOR
  • 41
    11-805402 NUT, Acorn
    METAL FLAME ARRESTOR
    NUT, Acorn
    METAL FLAME ARRESTOR
  • 42
    807656A2 FLAME ARRESTOR
    PLASTIC FLAME ARRESTOR
    FLAME ARRESTOR
    PLASTIC FLAME ARRESTOR
  • 43
    10-808040 SCREW, (5/16-18 x 4.0) (5/16-18 x 4 in.)
    PLASTIC FLAME ARRESTOR
    SCREW, (5/16-18 x 4.0) (5/16-18 x 4 in.)
    PLASTIC FLAME ARRESTOR
  • 44
    807654T BRACKET, Flame Arrestor
    PLASTIC FLAME ARRESTOR
    BRACKET, Flame Arrestor
    PLASTIC FLAME ARRESTOR
  • 45
    10-808039 SCREW, (#6-32) (#6-32)
    PLASTIC FLAME ARRESTOR
    SCREW, (#6-32) (#6-32)
    PLASTIC FLAME ARRESTOR
  • 47
    32-8M0063567 HOSE, Pressure Regulator to Intake Manifold Fitting
    HOSE, Pressure Regulator to Intake Manifold Fitting
  • 48
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • 49
    805223T SENSOR
    SENSOR
  • 50
    22-687271 FITTING, (.250-18) 90 Degree - Brass (To Pcv Valve)
    FITTING, (.250-18) 90 Degree - Brass (To Pcv Valve)
  • -
    27-811572A94 GASKET SET, Overhaul
    (454)
    GASKET SET, Overhaul
    (454)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502)
    GASKET SET, Overhaul
    (502)
