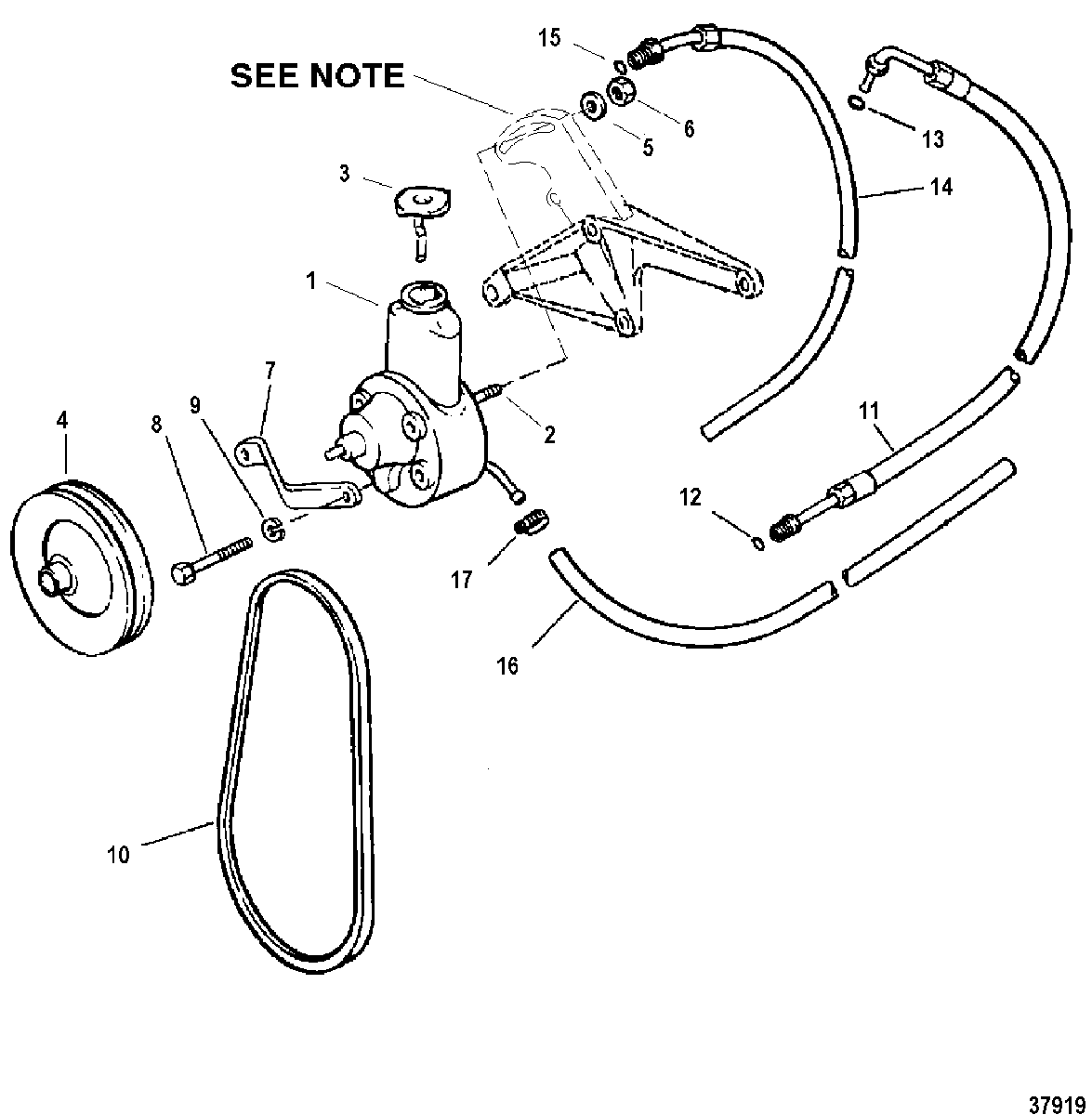

POWER STEERING COMPONENTS для Mercruiser - 502 MAG. MPI (GEN VI) GM 502 V-8 1996 0F802600 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, Power Steering
    PUMP ASSEMBLY, Power Steering
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    73873A1 PULLEY
    PULLEY
  • 5
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 6
    11-90517 NUT, (M10)
    NUT, (M10)
  • 7
    98813F1 BRACE
    BRACE
  • 8
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 9
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 10
    57-812427Q V BELT
    V BELT
  • 11
    32-80622216 HOSE
    (FITTINGS ON BOTH ENDS)
    HOSE
    (FITTINGS ON BOTH ENDS)
  • 12
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 13
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 14
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END)
  • 15
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 16
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 17
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
