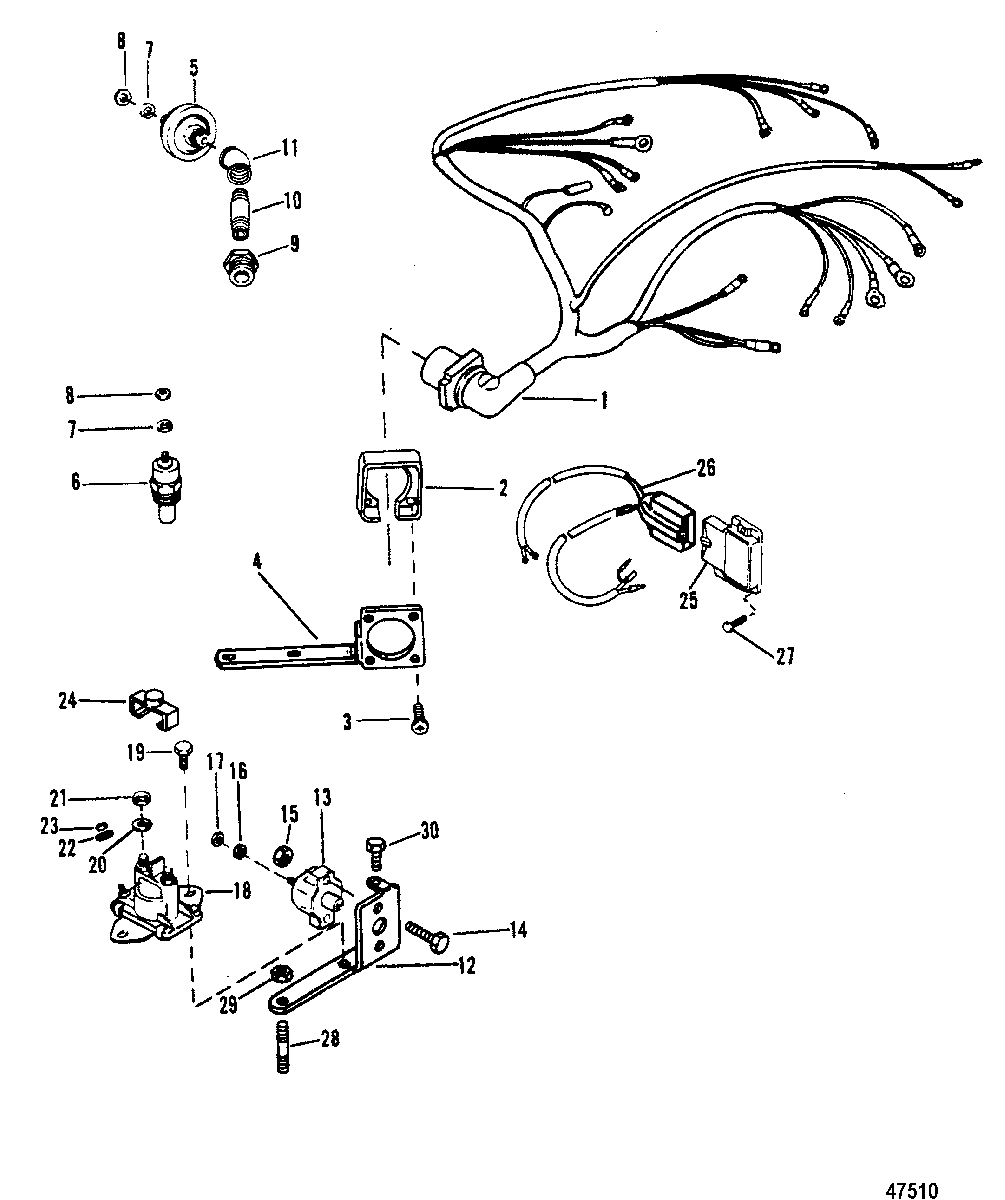

WIRING HARNESS AND ELECTRICAL COMPONENTS(DISTRIBUTOR) для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528

  • №
    Артикул
    Название
  • 1
    84-806217A10 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    805468T BRACKET
    BRACKET
  • 5
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 5
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 6
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 6
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 10
    22-885153 NIPPLE
    NIPPLE
  • 11
    22-46932 ELBOW
    ELBOW
  • 12
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere (50AMP)
    BREAKER, Circuit - 50 Ampere (50AMP)
  • 14
    10-45862 SCREW, (#10-32 x .875) (7/8")
    SCREW, (#10-32 x .875) (7/8")
  • 15
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 16
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 17
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 18
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 19
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel (1/4)
    LOCKWASHER, (.250) Stainless Steel (1/4)
  • 21
    11-94330 NUT, (.250-20) Brass (1/4-20)
    NUT, (.250-20) Brass (1/4-20)
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel (#10)
    LOCKWASHER, (#10) Stainless Steel (#10)
  • 23
    11-68219 NUT, (#10-32) Stainless Steel (10-32)
    NUT, (#10-32) Stainless Steel (10-32)
  • 24
    85-97861 INSULATOR
    INSULATOR
  • 25
    805361T5 IGNITION MODULE
    IGNITION MODULE
  • 26
    84-805363A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 27
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 28
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 29
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 30
    10-805565 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
