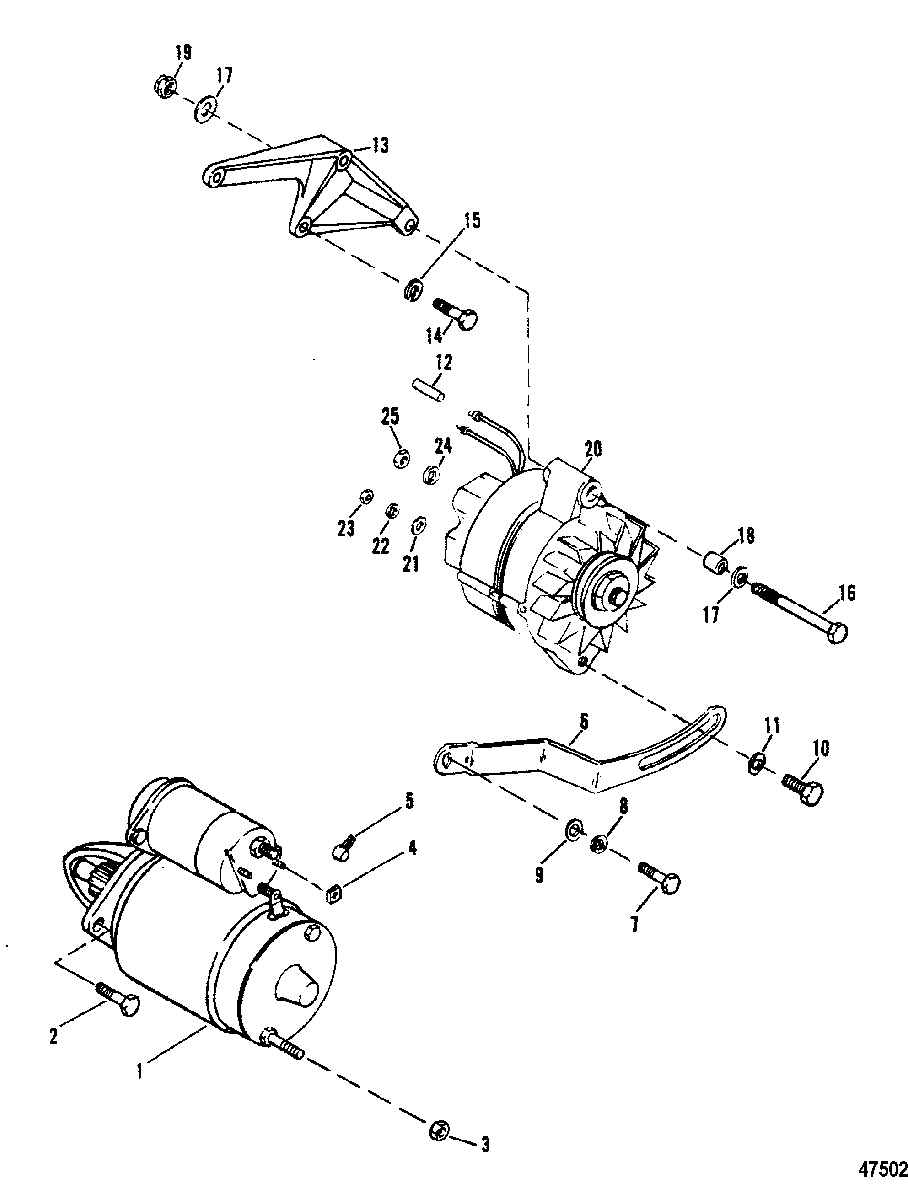

STARTER AND ALTERNATOR для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
    STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-15874 NUT, (M10) (10MM) 3-1/4" DIAMETER END CAP
    NUT, (M10) (10MM) 3-1/4" DIAMETER END CAP
  • 4
    11-400211 NUT, (M5) Stainless Steel (5MM) 3-1/4" DIAMETER END CAP
    NUT, (M5) Stainless Steel (5MM) 3-1/4" DIAMETER END CAP
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap
    STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-806949 NUT, (M8-1.5) (8MM) 2-7/8" DIAMETER END CAP
    NUT, (M8-1.5) (8MM) 2-7/8" DIAMETER END CAP
  • 4
    11-400211 NUT, (M5) Stainless Steel (5MM) 2-7/8" DIAMETER END CAP
    NUT, (M5) Stainless Steel (5MM) 2-7/8" DIAMETER END CAP
  • 5
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 6
    85013T BRACE
    BRACE
  • 7
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 8
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 9
    12-31263 WASHER
    WASHER
  • 10
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875) (7/8")
    SCREW AND LOCKWASHER, (.312-18 x .875) (7/8")
  • 11
    12-26168 WASHER
    WASHER
  • 12
    5790811 SLEEVE, (10.00 Inches Bulk)
    SLEEVE, (10.00 Inches Bulk)
  • 13
    806394A1 BRACKET
    BRACKET
  • 14
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4") 3/8-16 THREADS
    SCREW, (.375-16 x 1.250) (1-1/4") 3/8-16 THREADS
  • 14
    10-34354 SCREW, (.375-16 x 1.50) (1-1/2") 3/8-16 THREADS
    SCREW, (.375-16 x 1.50) (1-1/2") 3/8-16 THREADS
  • 15
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 14
    10-47462 SCREW, (.437-14 x 1.250) (1-1/4") 7/16-14 THREADS
    SCREW, (.437-14 x 1.250) (1-1/4") 7/16-14 THREADS
  • 14
    10-47651 SCREW, (.437-14 x 1.50) (1-1/2") 7/16-14 THREADS
    SCREW, (.437-14 x 1.50) (1-1/2") 7/16-14 THREADS
  • 15
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 16
    10-48308 SCREW, (.375-24 x 3.750) (3-3/4")
    SCREW, (.375-24 x 3.750) (3-3/4")
  • 17
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 18
    23-33186 BUSHING
    BUSHING
  • 19
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 20
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    ALTERNATOR ASSEMBLY, (55 Ampere)
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 23
    11-79989 NUT, (#10-24) Stainless Steel (10-24) PRESTOLITE #8EM2003KA MANDO #AR-150
    NUT, (#10-24) Stainless Steel (10-24) PRESTOLITE #8EM2003KA MANDO #AR-150
  • 24
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 25
    11-64015 NUT, (.250-20) (1/4-20) PRESTOLITE #8EM2003KA MANDO #AR-150
    NUT, (.250-20) (1/4-20) PRESTOLITE #8EM2003KA MANDO #AR-150
  • 20
    817119A4 ALTERNATOR
    ALTERNATOR
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 23
    11-79989 NUT, (#10-24) Stainless Steel (10-24) MANDO #AC-155603
    NUT, (#10-24) Stainless Steel (10-24) MANDO #AC-155603
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 25
    11-94330 NUT, (.250-20) Brass (1/4-20) MANDO #AC-155603
    NUT, (.250-20) Brass (1/4-20) MANDO #AC-155603
