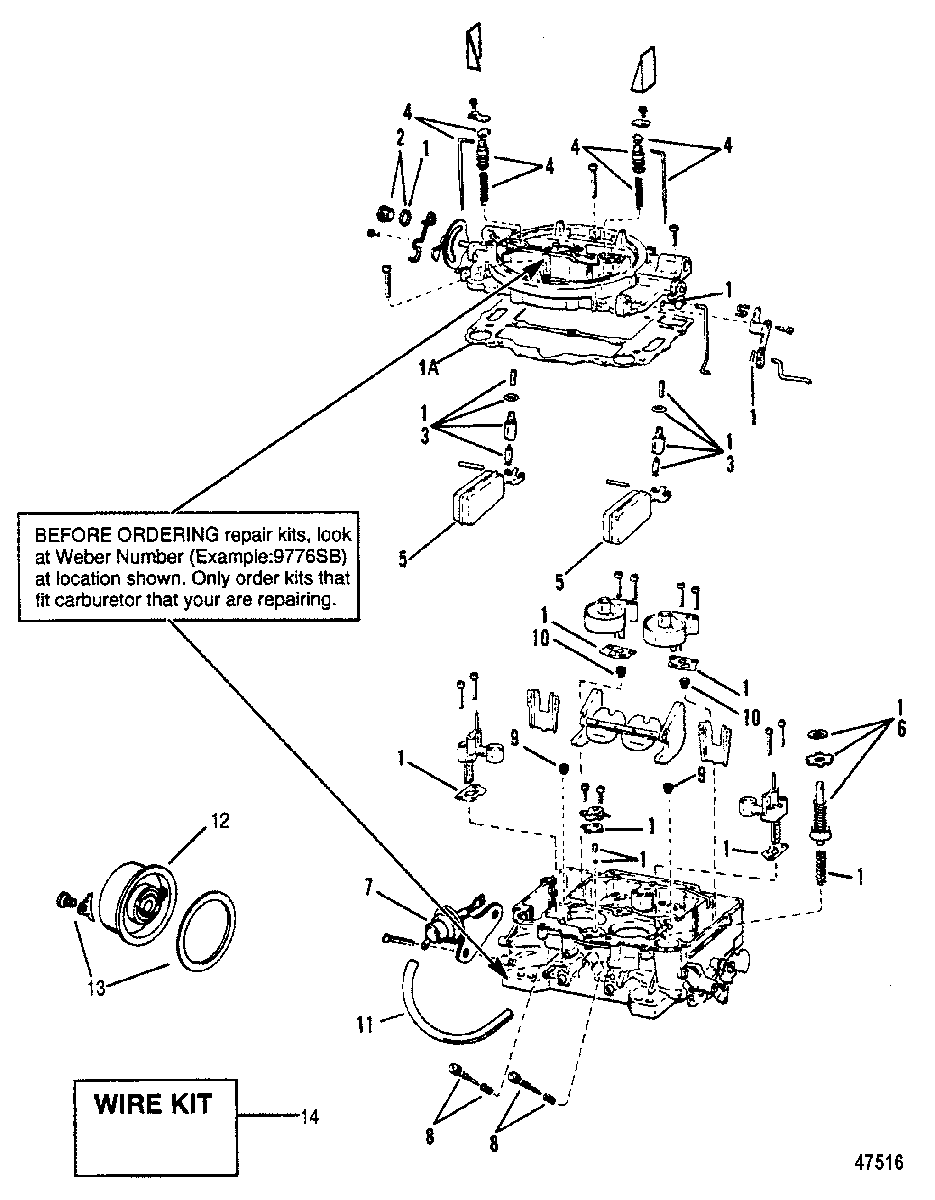

CARBURETOR(WEBER) для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528

  • №
    Артикул
    Название
  • 1
    8M0120193 OVERHAUL KIT
    OVERHAUL KIT
  • 1A
    27-809077 GASKET
    GASKET
  • 2
    811533 FITTING KIT, Inlet
    FITTING KIT, Inlet
  • 3
    8M0120189 NEEDLE/SEAT KIT, Inlet
    NEEDLE/SEAT KIT, Inlet
  • 4
    823431 ROD KIT, Metering
    ROD KIT, Metering
  • 5
    8M0120190 FLOAT KIT
    FLOAT KIT
  • 6
    808701 PLUNGER KIT, Accelerator Pump
    PLUNGER KIT, Accelerator Pump
  • 7
    811538 CHOKE KIT (AUTOMATIC CHOKE)
    CHOKE KIT (AUTOMATIC CHOKE)
  • 8
    811539 SCREW KIT, Idle Mixture
    SCREW KIT, Idle Mixture
  • 9
    823432 JET, Primary Metering
    JET, Primary Metering
  • 10
    811650 JET, Metering - Secondary
    JET, Metering - Secondary
  • 11
    32-1430165 TUBING, (38.00 Inches Bulk) (AUTOMATIC CHOKE)
    TUBING, (38.00 Inches Bulk) (AUTOMATIC CHOKE)
  • 12
    8M0120194 REPAIR KIT, Electric Choke (ELECTRIC CHOKE)
    REPAIR KIT, Electric Choke (ELECTRIC CHOKE)
  • 13
    809095 RETAINER KIT, Electric Choke (ELECTRIC CHOKE)
    RETAINER KIT, Electric Choke (ELECTRIC CHOKE)
  • 14
    84-809471A1 WIRE KIT (ELECTRIC CHOKE)
    WIRE KIT (ELECTRIC CHOKE)
