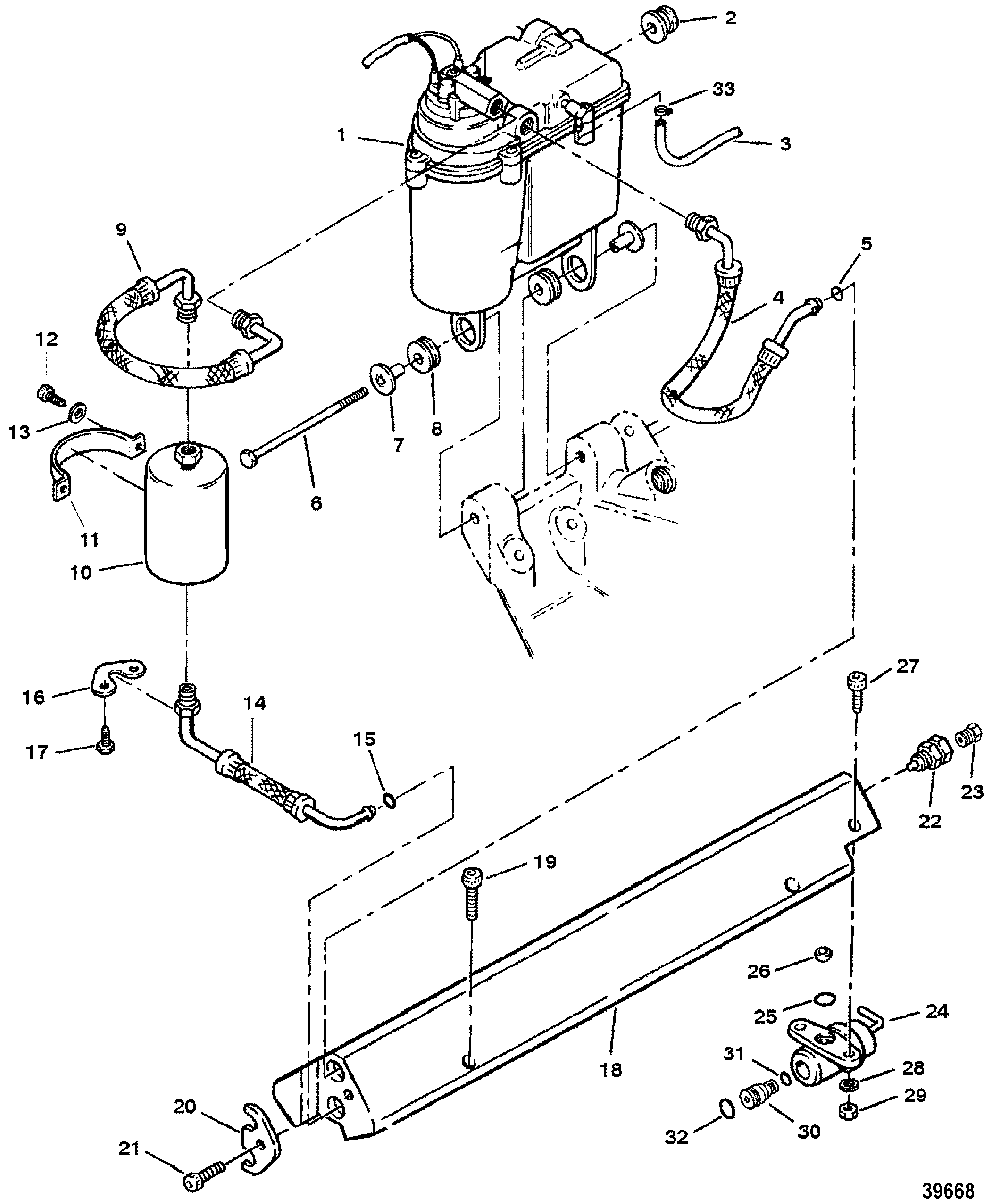

VAPOR SEPARATOR TANK AND FUEL RAIL, SN & Below (See Note) для Mercruiser - 502 EFI (GEN. V) GM 502 V-8 1993-1995 0D840650 THRU 0F802599

  • №
    Артикул
    Название
  • 1
    806787A3 TANK ASSEMBLY, Vapor Separator
    TANK ASSEMBLY, Vapor Separator
  • 2
    25-880331 GROMMET
    GROMMET
  • 3
    32-80568932 HOSE
    HOSE
  • 4
    32-805435A1 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 5
    25-805970 O-RING
    O-RING
  • 6
    10-805392 SCREW, (1/4-20 x 5.0)
    SCREW, (1/4-20 x 5.0)
  • 7
    23-19064 BUSHING
    BUSHING
  • 8
    25-88033 GROMMET
    GROMMET
  • 9
    32-806740A1 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 10
    NSS NOT SOLD SEPARATE, FUEL FILTER
    (Order Fuel Line Kit - 32-806740A1)
    NOT SOLD SEPARATE, FUEL FILTER
    (Order Fuel Line Kit - 32-806740A1)
  • 11
    32-806740A1 CLAMP
    CLAMP
  • 12
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 13
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 14
    32-805434A1 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 15
    25-805970 O-RING
    O-RING
  • 16
    54-805566 CLIP
    CLIP
  • 17
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 18
    805405T FUEL RAIL
    FUEL RAIL
  • 19
    10-805698 SCREW, (1/4-20 x 1.75)
    SCREW, (1/4-20 x 1.75)
  • 20
    54-805437 CLIP
    CLIP
  • 21
    10-805557 SCREW, (5/16-18 x .50)
    SCREW, (5/16-18 x .50)
  • 22
    22-805408 VALVE, Rail Pressure Service
    VALVE, Rail Pressure Service
  • 23
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 24
    805227A1 REGULATOR ASSEMBLY, Fuel Pressure
    REGULATOR ASSEMBLY, Fuel Pressure
  • 25
    25-805531 O-RING, (.476 x .075)
    O-RING, (.476 x .075)
  • 26
    35-805406 FILTER
    FILTER
  • 27
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 28
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 29
    11-805562 NUT, (#10-24)
    NUT, (#10-24)
  • 30
    22-805514A1 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 31
    25-805553 O-RING
    O-RING
  • 32
    25-805407 O-RING, (.346 x .075)
    O-RING, (.346 x .075)
  • 33
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    27-811572A94 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502 MAGNUM)
    GASKET SET, Overhaul
    (502 MAGNUM)
