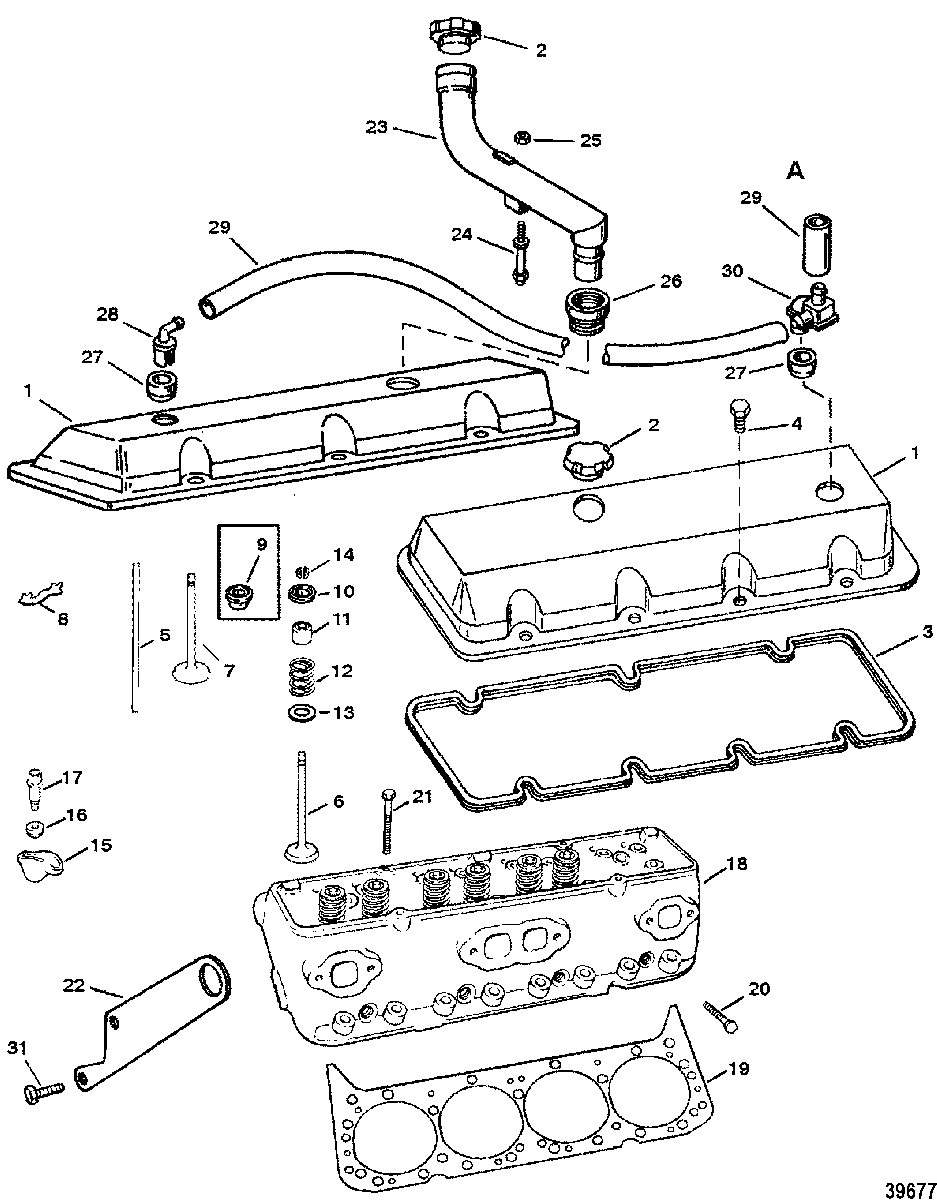

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 502 EFI (GEN. V) GM 502 V-8 1993-1995 0D840650 THRU 0F802599

  • №
    Артикул
    Название
  • 1
    850462 ROCKER COVER
    ROCKER COVER
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    811581 PUSH ROD
    (INTAKE)
    PUSH ROD
    (INTAKE)
  • 5
    811582 PUSH ROD
    (EXHAUST)
    PUSH ROD
    (EXHAUST)
  • 6
    816962 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    816963T VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    801877 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 7
    801878 VALVE, Intake
    (.015 O.S.)
    VALVE, Intake
    (.015 O.S.)
  • 8
    881686 GUIDE
    GUIDE
  • 9
    827644A1 CAP AND SHIELD
    ONE PIECE DESIGN
    CAP AND SHIELD
    ONE PIECE DESIGN
  • 10
    827644A1 CAP ASSEMBLY, Valve
    TWO PIECE DESIGN
    CAP ASSEMBLY, Valve
    TWO PIECE DESIGN
  • 11
    26-827645 SEAL, Valve
    TWO PIECE DESIGN
    SEAL, Valve
    TWO PIECE DESIGN
  • 12
    24-801879T SPRING, Valve
    SPRING, Valve
  • 13
    15-845669 SHIM, Valve Spring (.015)
    SHIM, Valve Spring (.015)
  • 14
    28-54530 KEY
    KEY
  • 15
    811591T ARM, Rocker
    ARM, Rocker
  • 16
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 17
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 18
    938-883493R1 CYLINDER HEAD
    (3/8-16 THREADS)
    CYLINDER HEAD
    (3/8-16 THREADS)
  • 18
    938-8M0115141 CYLINDER HEAD ASSEMBLY
    (7/16-14 THREADS)
    CYLINDER HEAD ASSEMBLY
    (7/16-14 THREADS)
  • 19
    27-879150141 GASKET
    (454 MAGNUM)
    GASKET
    (454 MAGNUM)
  • 19
    27-879150139 GASKET, Cylinder Head
    (502 MAGNUM)
    GASKET, Cylinder Head
    (502 MAGNUM)
  • 20
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 21
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • 22
    805442T1 BRACKET, Lifting Eye (FRONT)
    BRACKET, Lifting Eye (FRONT)
  • 23
    36-805621A1 TUBE, Oil Fill
    TUBE, Oil Fill
  • 24
    16-805706 STUD
    STUD
  • 25
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    26-805622 GROMMET
    GROMMET
  • 27
    25-811553 GROMMET
    GROMMET
  • 28
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 29
    32-805933 BREATHER HOSE
    BREATHER HOSE
  • 30
    805558A2 BAFFLE ASSEMBLY, Breather
    BAFFLE ASSEMBLY, Breather
  • 31
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 31
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • -
    27-811572A94 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502 MAGNUM)
    GASKET SET, Overhaul
    (502 MAGNUM)
