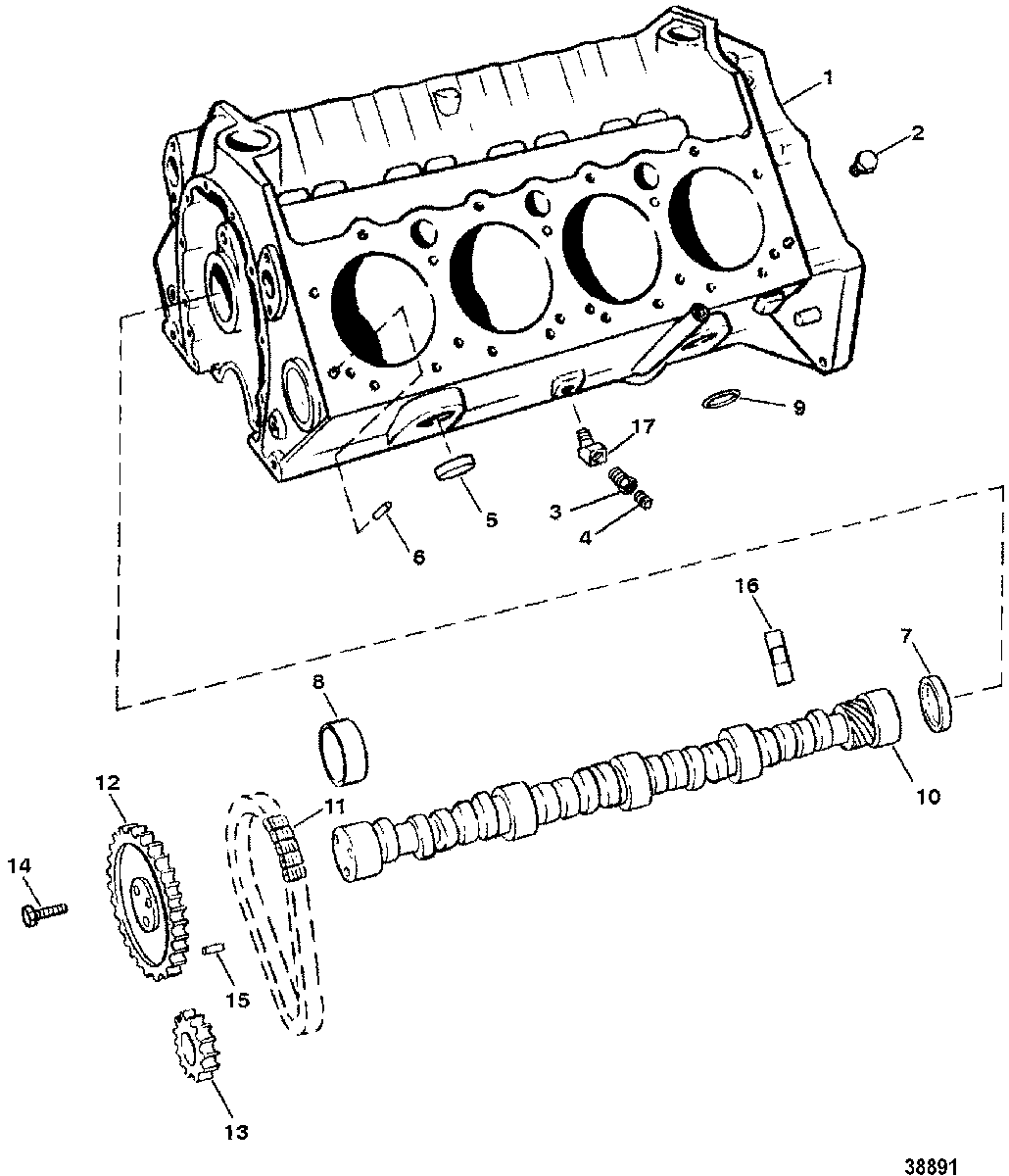

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 502 EFI (GEN. V) GM 502 V-8 1993-1995 0D840650 THRU 0F802599

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, CYLINDER BLOCK
    (ORDER LONG BLOCK BELOW)
    NOT SOLD SEPARATE, CYLINDER BLOCK
    (ORDER LONG BLOCK BELOW)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 3
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 4
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 5
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 6
    17-52190 PIN
    PIN
  • 7
    19-94140 EXPANSION PLUG
    EXPANSION PLUG
  • 8
    23-85684 BEARING SET
    BEARING SET
  • 9
    25-69756 O-RING, (.500 Inch)
    O-RING, (.500 Inch)
  • 10
    431-9830 CAMSHAFT
    CAMSHAFT
  • 11
    845796T CHAIN
    (Single Roller Chain)
    CHAIN
    (Single Roller Chain)
  • 11
    61728 CHAIN, TIMING
    (Double Roller Chain)
    CHAIN, TIMING
    (Double Roller Chain)
  • 12
    43-811578 SPROCKET, CAMSHAFT
    (Single Roller Chain)
    SPROCKET, CAMSHAFT
    (Single Roller Chain)
  • 12
    43-61726 SPROCKET, CAMSHAFT
    (Double Roller Chain)
    SPROCKET, CAMSHAFT
    (Double Roller Chain)
  • 13
    43-61727 SPROCKET, CRANKSHAFT
    (Double Roller Chain)
    SPROCKET, CRANKSHAFT
    (Double Roller Chain)
  • 13
    43-845794T SPROCKET, CRANKSHAFT
    (Single Roller Chain)
    SPROCKET, CRANKSHAFT
    (Single Roller Chain)
  • 14
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 15
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
  • 16
    811583 LIFTER
    LIFTER
  • 17
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    806360A1 MARINE LONG BLOCK ENGINE
    (454 MAGNUM) SEE NOTE
    MARINE LONG BLOCK ENGINE
    (454 MAGNUM) SEE NOTE
  • -
    807745A3 MARINE LONG BLOCK ENGINE
    (502 MAGNUM) SEE NOTE
    MARINE LONG BLOCK ENGINE
    (502 MAGNUM) SEE NOTE
  • -
    27-811572A94 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502 MAGNUM)
    GASKET SET, Overhaul
    (502 MAGNUM)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
