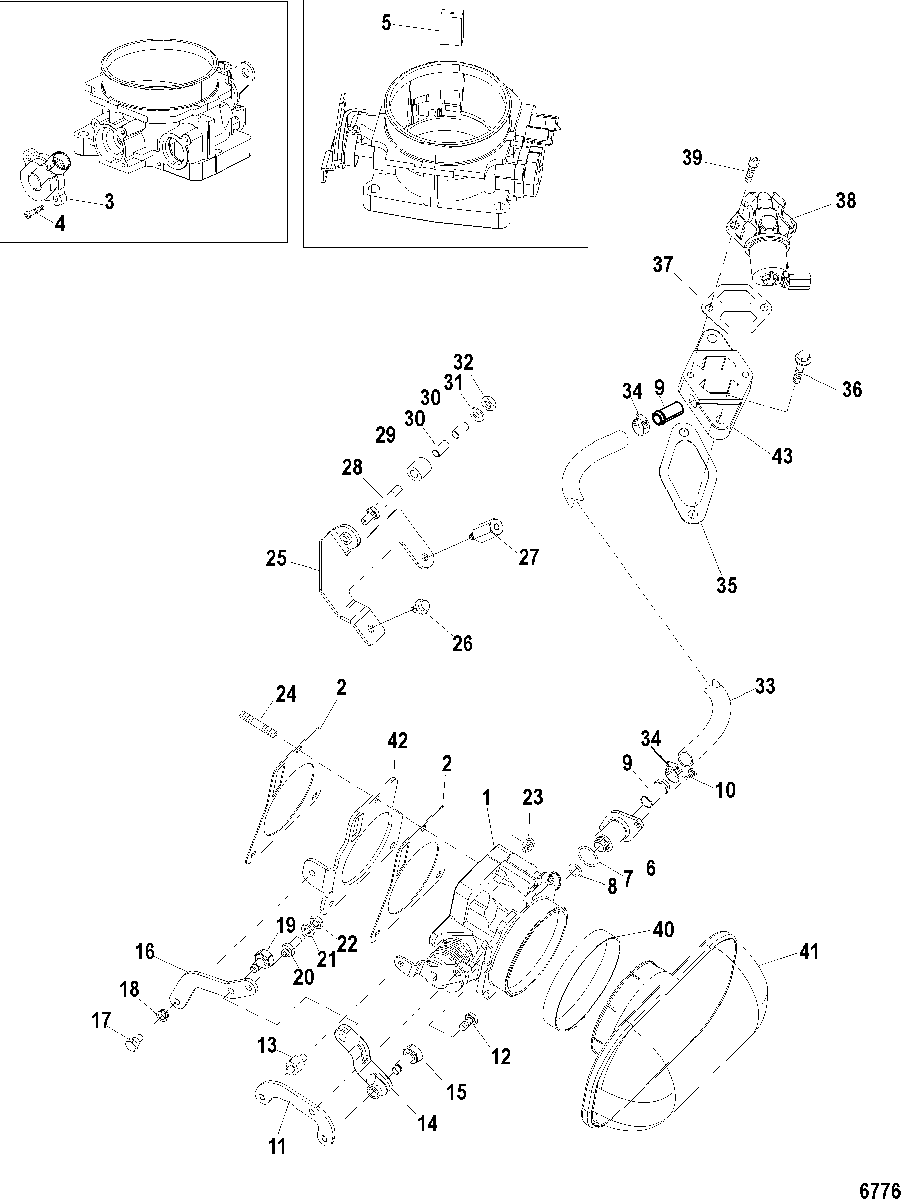

Throttle Body, Mechanical Throttle-Shift для Mercruiser - 496 MAG (Base Model) 0W650000 THRU 1A066165
-
№АртикулНазвание
-
1866576A04 THROTTLE BODY ASSEMBLY
BaseTHROTTLE BODY ASSEMBLY
Base -
1866577A04 THROTTLE BODY ASSEMBLY
High OutputTHROTTLE BODY ASSEMBLY
High Output -
227-863215 GASKET, Throttle BodyGASKET, Throttle Body
-
38M0097035 SENSOR, TPS, Includes O-RingSENSOR, TPS, Includes O-Ring
-
410-853680 SCREW KITSCREW KIT
-
535-863829 MUFFLER, Intake Air Control
Not used on all applicationsMUFFLER, Intake Air Control
Not used on all applications -
6862999A5 PLUG KIT, Adaptor,Intake Air ControlPLUG KIT, Adaptor,Intake Air Control
-
725-808547 O-RINGO-RING
-
825-863006 O-RINGO-RING
-
922-863427 FITTING, Air ValveFITTING, Air Valve
-
1010-805400 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
11863135 LEVER, ThrottleLEVER, Throttle
-
1210-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
1316-863345 STUD, SpecialSTUD, Special
-
14863214 LINKLINK
-
15805533 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
168M2001692 ARM, CableARM, Cable
-
1710-863380 SCREW, SpecialSCREW, Special
-
1823-97896 BUSHING, FlangedBUSHING, Flanged
-
19805398 PIN, Primary LinkagePIN, Primary Linkage
-
2016-805526 STUD, (.250-28 x 1.540)STUD, (.250-28 x 1.540)
-
2112-20533 WASHERWASHER
-
2211-8267139 NUT, (.250-28)NUT, (.250-28)
-
2211-826709109 NUT, (.250-28) Stainless Steel
(SEACORE)NUT, (.250-28) Stainless Steel
(SEACORE) -
2311-802751 NUTNUT
-
2416-8M0077391 STUDSTUD
-
25863153 BRACKET, Throttle Cable AttachingBRACKET, Throttle Cable Attaching
-
2610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2723-863734 SPACERSPACER
-
2816-97477A3 STUD KITSTUD KIT
-
2816-866641A01 STUD KIT
(SEACORE)STUD KIT
(SEACORE) -
29NSS NOT SOLD SEPARATE, Spacer, SpecialNOT SOLD SEPARATE, Spacer, Special
-
3023-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
3112-20533 WASHERWASHER
-
3211-8267139 NUT, (.250-28)NUT, (.250-28)
-
3211-826709109 NUT, (.250-28) Stainless Steel
(SEACORE)NUT, (.250-28) Stainless Steel
(SEACORE) -
3332-864262 HOSE, Air BypassHOSE, Air Bypass
-
3454-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
NS19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
-
3527-863285 GASKET, Air ValveGASKET, Air Valve
-
3610-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
3727-8M0119616 GASKET, Idle Air ValveGASKET, Idle Air Valve
-
38862998 VALVE, Idle AirVALVE, Idle Air
-
3910-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
4054-863393 CLAMP, Flame ArrestorCLAMP, Flame Arrestor
-
418M0113516 FLAME ARRESTORFLAME ARRESTOR
-
42862996 BRACKET, Throttle LinkageBRACKET, Throttle Linkage
-
43862997A1 MOUNTING PLATE, Intake Air ControlMOUNTING PLATE, Intake Air Control
