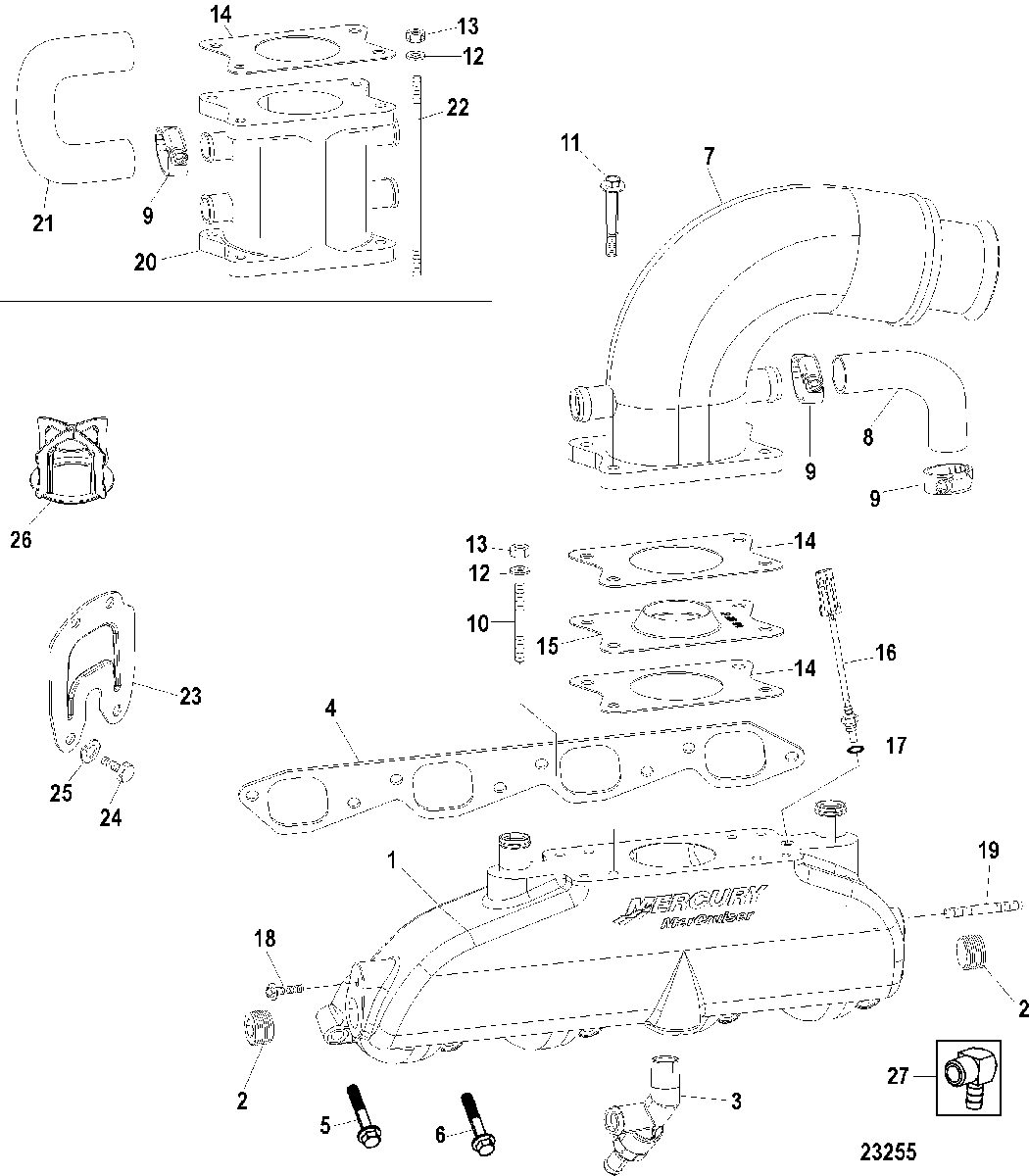

Exhaust Manifold, Elbow and Riser для Mercruiser - 496 MAG (Base Model) 0W650000 THRU 1A066165
-
№АртикулНазвание
-
1866178T01 MANIFOLD ASSEMBLY, Cast-Iron Alloy, ExhaustMANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust
-
222-12524 PLUG, (.375-18 x .475) BrassPLUG, (.375-18 x .475) Brass
-
322-865341A03 FITTING ASSEMBLY, Drain - Stainless Steel
Port Exhaust ManifoldFITTING ASSEMBLY, Drain - Stainless Steel
Port Exhaust Manifold -
322-865828A02 FITTING ASSEMBLY, Drain
Starboard Exhaust ManifoldFITTING ASSEMBLY, Drain
Starboard Exhaust Manifold -
427-46820 GASKET, Exhaust Manifold to Cylinder HeadGASKET, Exhaust Manifold to Cylinder Head
-
510-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
610-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
7865331A02 ELBOW, Exhaust
Standard RiseELBOW, Exhaust
Standard Rise -
7865332A02 ELBOW, Exhaust
2 Inch RiseELBOW, Exhaust
2 Inch Rise -
832-863095 HOSE, Elbow to ManifoldHOSE, Elbow to Manifold
-
954-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
1016-8204511 STUD, (M8 x 55)STUD, (M8 x 55)
-
1110-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
1212-12038 WASHERWASHER
-
1311-4002030 NUT, (M8)NUT, (M8)
-
1427-862356 GASKET, Elbow to ManifoldGASKET, Elbow to Manifold
-
158M2000433 TURBULATOR, ExhaustTURBULATOR, Exhaust
-
16885342002 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1725-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
1810-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
1916-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
208M0124066 RISER, (6 Inch)RISER, (6 Inch)
-
2132-863102 HOSEHOSE
-
2216-863121 STUD, (M8 x 194)STUD, (M8 x 194)
-
NS19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
-
23861776A2 PLATE KITPLATE KIT
-
2410-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2513-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
26860222A1 RESONATOR, ExhaustRESONATOR, Exhaust
-
278M2000159 ELBOWELBOW
