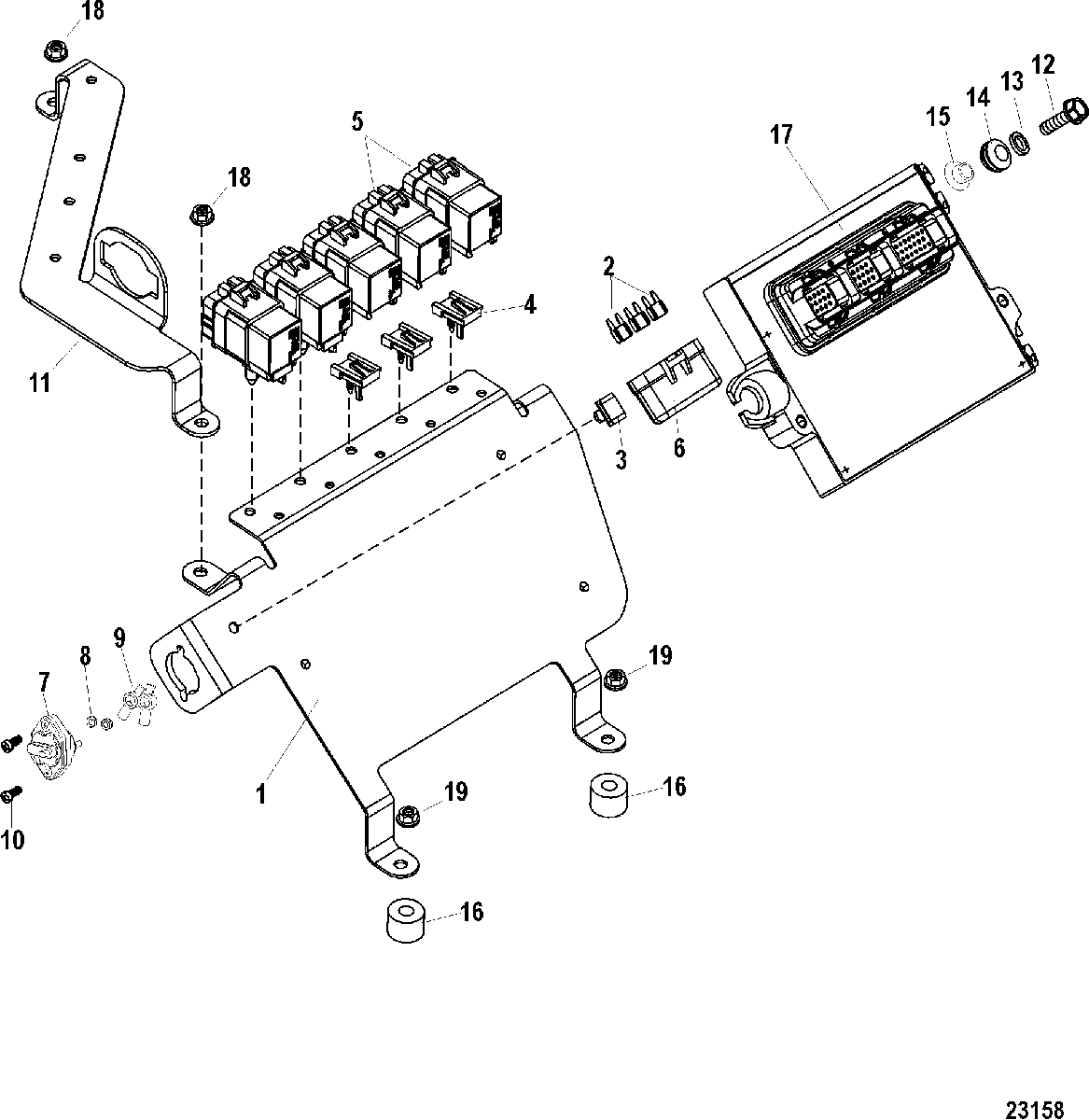

PCM and Bracket для Mercruiser - 496 MAG (Base Model) 0W650000 THRU 1A066165
-
№АртикулНазвание
-
NS84-865457T06 HARNESS ASSEMBLY, Engine
Mechanical Throttle and ShiftHARNESS ASSEMBLY, Engine
Mechanical Throttle and Shift -
NS84-865653T04 HARNESS ASSEMBLY, Engine
Digital Throttle and ShiftHARNESS ASSEMBLY, Engine
Digital Throttle and Shift -
NS84-865677T01 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
1899719T04 BRACKETBRACKET
-
288-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
288-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
386-865205 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
454-804352 CLIP, Relay MountingCLIP, Relay Mounting
-
5882751A04 RELAY ASSEMBLY
Mechanical Throttle and ShiftRELAY ASSEMBLY
Mechanical Throttle and Shift -
5882751A04 RELAY ASSEMBLY
Digital Throttle and ShiftRELAY ASSEMBLY
Digital Throttle and Shift -
6831960 COVER, Fuse
Digital Throttle and ShiftCOVER, Fuse
Digital Throttle and Shift -
6858754 COVER, Fuse
Mechanical Throttle and ShiftCOVER, Fuse
Mechanical Throttle and Shift -
788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
985-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
1010-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
11865639T BRACKETBRACKET
-
1210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1425-834985 GROMMETGROMMET
-
1523-856954 BUSHING, Electrical PlateBUSHING, Electrical Plate
-
1623-862995 SPACERSPACER
-
17866090T05 PCM, Propulsion Control Module, Base
Mechanical Throttle and ShiftPCM, Propulsion Control Module, Base
Mechanical Throttle and Shift -
17866361T07 PCM, Propulsion Control Module, Base
Digital Throttle and ShiftPCM, Propulsion Control Module, Base
Digital Throttle and Shift -
17879194T74 PCM, Propulsion Control Module, Base
AxiusPCM, Propulsion Control Module, Base
Axius -
17866091T05 PCM, Propulsion Control Module, High Output
Mechanical Throttle and ShiftPCM, Propulsion Control Module, High Output
Mechanical Throttle and Shift -
17866363T05 PCM, Propulsion Control Module, High Output
Digital Throttle and ShiftPCM, Propulsion Control Module, High Output
Digital Throttle and Shift -
17879194T75 PCM, Propulsion Control Module, High Output
AxiusPCM, Propulsion Control Module, High Output
Axius -
1811-4002030 NUT, (M8)NUT, (M8)
-
1811-400213 NUT, (M8) Stainless Steel
(SEACORE)NUT, (M8) Stainless Steel
(SEACORE) -
1911-802751 NUTNUT
-
1911-892233 NUT, (M6) Stainless Steel
(SEACORE)NUT, (M6) Stainless Steel
(SEACORE)
