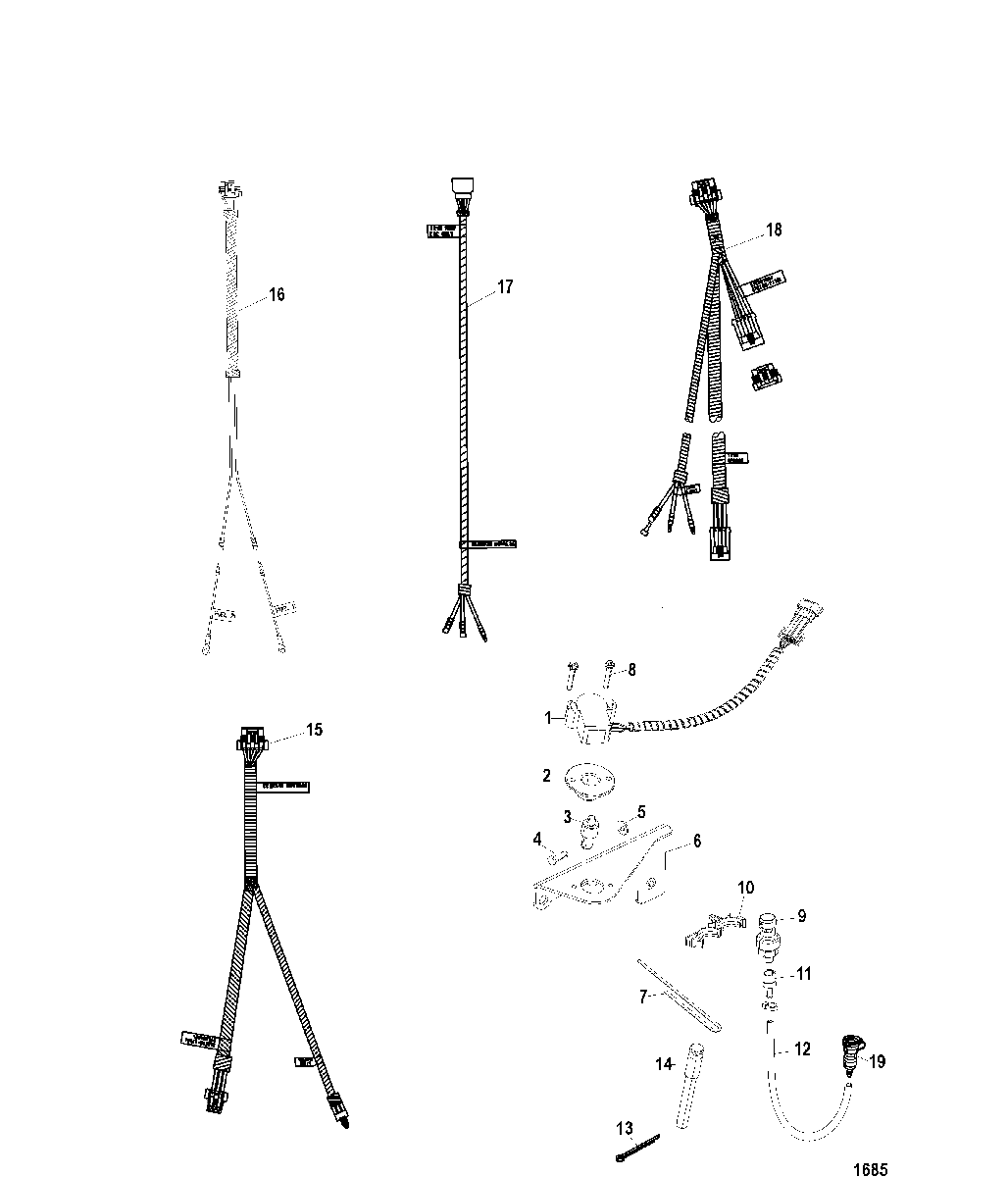

Smart Craft Sensor and Harnesses для Mercruiser - 496 MAG (Base Model) 0M687083 THRU 0W059999

  • №
    Артикул
    Название
  • -
    863188A3 SENSOR KIT, Steering, Steering- pitot
    (Digital Throttle Shift)
    SENSOR KIT, Steering, Steering- pitot
    (Digital Throttle Shift)
  • -
    863188A3 SENSOR ASSEMBLY, Steering- pitot
    SENSOR ASSEMBLY, Steering- pitot
  • 1
    863188T SENSOR, Steering
    SENSOR, Steering
  • 2
    863175 ADAPTOR, Sensor
    ADAPTOR, Sensor
  • 3
    863174 DRIVER
    DRIVER
  • 4
    17-863176 PIN
    PIN
  • 5
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 6
    863178 BRACKET, Steering Sensor
    BRACKET, Steering Sensor
  • 7
    863177 GUIDE
    GUIDE
  • 8
    10-812987 SCREW, (#10-24 x 1.250)
    SCREW, (#10-24 x 1.250)
  • 9
    881879T11 SENSOR, (0 - 100 PSI), Pitot Pressure
    SENSOR, (0 - 100 PSI), Pitot Pressure
  • 10
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 11
    22-856594 FITTING, Barbed
    FITTING, Barbed
  • 12
    32-5495025 HOSE
    HOSE
  • 13
    18-46950 COTTER PIN
    COTTER PIN
  • 14
    17-8M0138029 PIN, Clevis, Clevis
    PIN, Clevis, Clevis
  • 15
    84-863736T HARNESS ASSEMBLY, Steering Sensor and Speed Pitot
    HARNESS ASSEMBLY, Steering Sensor and Speed Pitot
  • 16
    84-864218 HARNESS ASSEMBLY, Fuel Tank
    HARNESS ASSEMBLY, Fuel Tank
  • 17
    84-863735 HARNESS ASSEMBLY, Trim Pump
    HARNESS ASSEMBLY, Trim Pump
  • 18
    84-863739T1 HARNESS ASSEMBLY, 10 PIN Transom Harness
    HARNESS ASSEMBLY, 10 PIN Transom Harness
  • 19
    22-865417 FITTING, Female Quick Connect
    FITTING, Female Quick Connect
