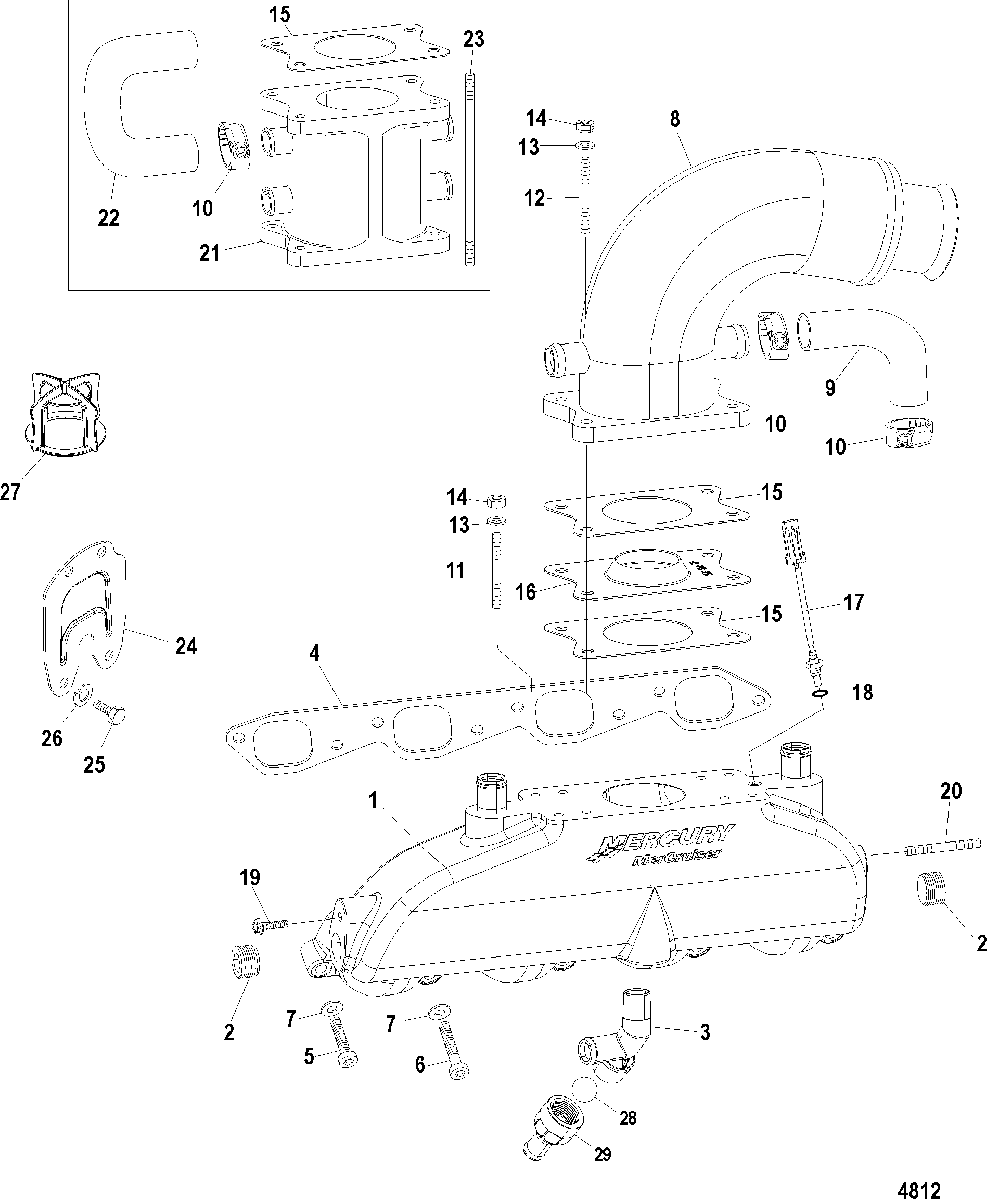

Exhaust Manifold, Elbow and Riser для Mercruiser - 496 MAG (Base Model) 0M687083 THRU 0W059999

  • №
    Артикул
    Название
  • 1
    866178T01 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-865341A03 FITTING, Port Exhaust Manifold
    FITTING, Port Exhaust Manifold
  • 3
    22-865828A02 FITTING, Starboard Exhaust Manifold
    FITTING, Starboard Exhaust Manifold
  • 4
    27-46820 GASKET, Exhaust Manifold to Cylinder Head
    GASKET, Exhaust Manifold to Cylinder Head
  • 5
    10-4008935 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 6
    10-4008970 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 7
    12-12038 WASHER
    WASHER
  • 8
    865331A02 ELBOW, Exhaust
    (Standard Rise)
    ELBOW, Exhaust
    (Standard Rise)
  • 8
    865332A02 ELBOW, Exhaust
    (2 Inch Rise)
    ELBOW, Exhaust
    (2 Inch Rise)
  • 9
    32-863095 HOSE, Elbow to Manifold
    HOSE, Elbow to Manifold
  • 10
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 11
    16-8204511 STUD, (M8 x 55)
    STUD, (M8 x 55)
  • 12
    16-424632 STUD, (M8 x 37.1)
    STUD, (M8 x 37.1)
  • 13
    12-12038 WASHER
    WASHER
  • 14
    11-4002030 NUT, (M8)
    NUT, (M8)
  • 15
    27-862356 GASKET, Elbow to Manifold
    GASKET, Elbow to Manifold
  • 16
    8M2000433 TURBULATOR, Exhaust
    TURBULATOR, Exhaust
  • 17
    889575 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 18
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 19
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 20
    16-424632 STUD, (M8 x 37.1)
    STUD, (M8 x 37.1)
  • 21
    8M0124066 RISER, (6 Inch)
    RISER, (6 Inch)
  • 22
    32-863102 HOSE
    HOSE
  • 23
    16-863121 STUD, (M8 x 194)
    STUD, (M8 x 194)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 24
    861776A2 PLATE KIT, Exhaust Block Off
    PLATE KIT, Exhaust Block Off
  • 25
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 26
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 27
    860222A1 RESONATOR, Exhaust
    RESONATOR, Exhaust
  • 28
    30-863129 BALL, Check
    BALL, Check
  • 29
    864182T CONNECTOR
    CONNECTOR
