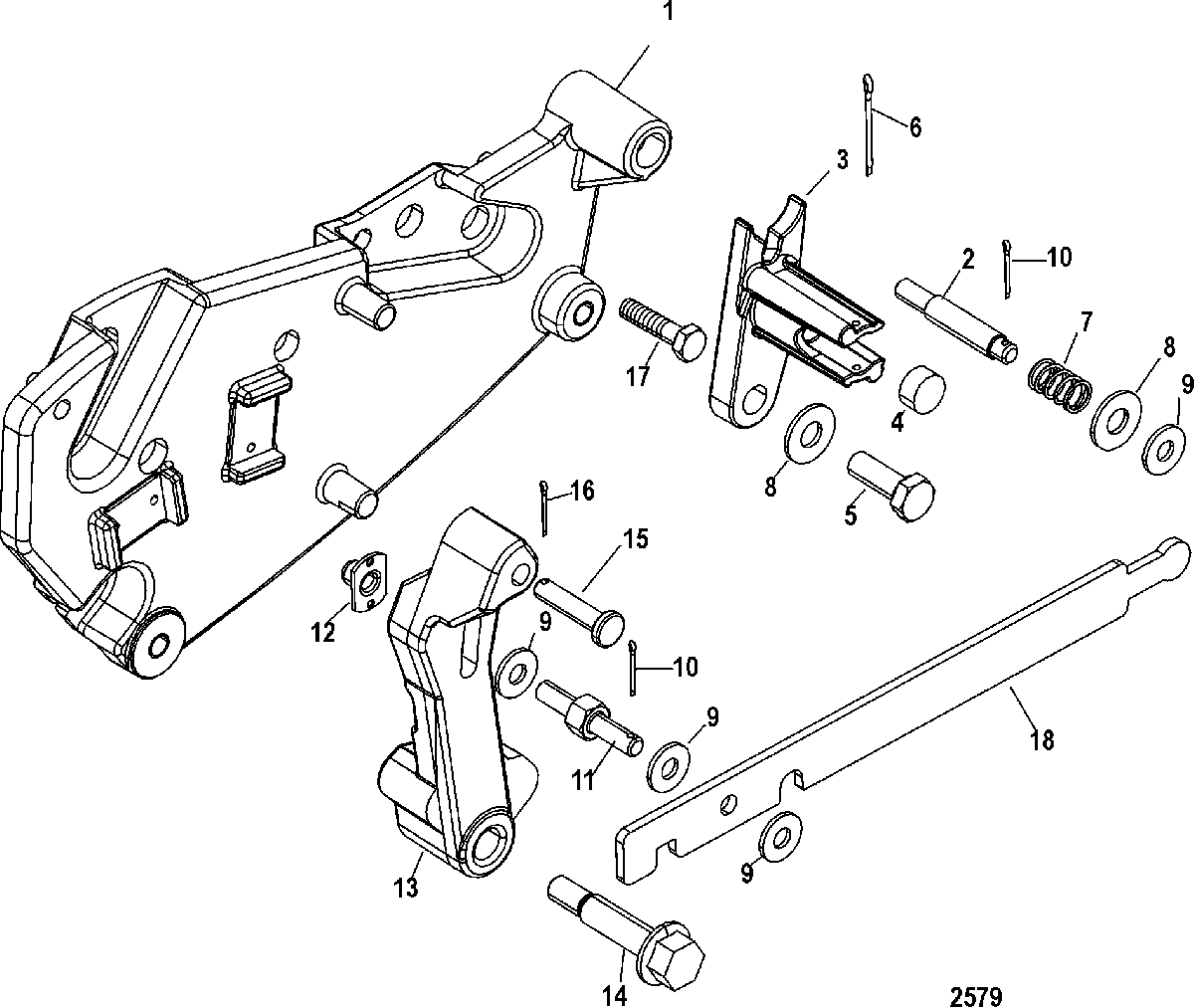

Shift Bracket, Mechanical Shift (0W029410 and Below) для Mercruiser - 496 MAG (Base Model) 0M687083 THRU 0W059999
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
216-865154A02 STUD (With Cotter pin)STUD (With Cotter pin)
-
3865434A02 RETAINER, Shift Cable (With Cotter pin)RETAINER, Shift Cable (With Cotter pin)
-
423-98828 SPACERSPACER
-
510-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
618-328571 COTTER PIN, CotterCOTTER PIN, Cotter
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1018-210711 COTTER PINCOTTER PIN
-
1116-865393A02 STUD (With Cotter pin)STUD (With Cotter pin)
-
1211-63341 TEE NUTTEE NUT
-
13863911A12 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1410-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1517-68402 PIN, (.250 x 1.13), ClevisPIN, (.250 x 1.13), Clevis
-
1618-210711 COTTER PIN, CotterCOTTER PIN, Cotter
-
1710-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
1891-12427T TOOL, Shift Adjust, Shift AdjustTOOL, Shift Adjust, Shift Adjust
