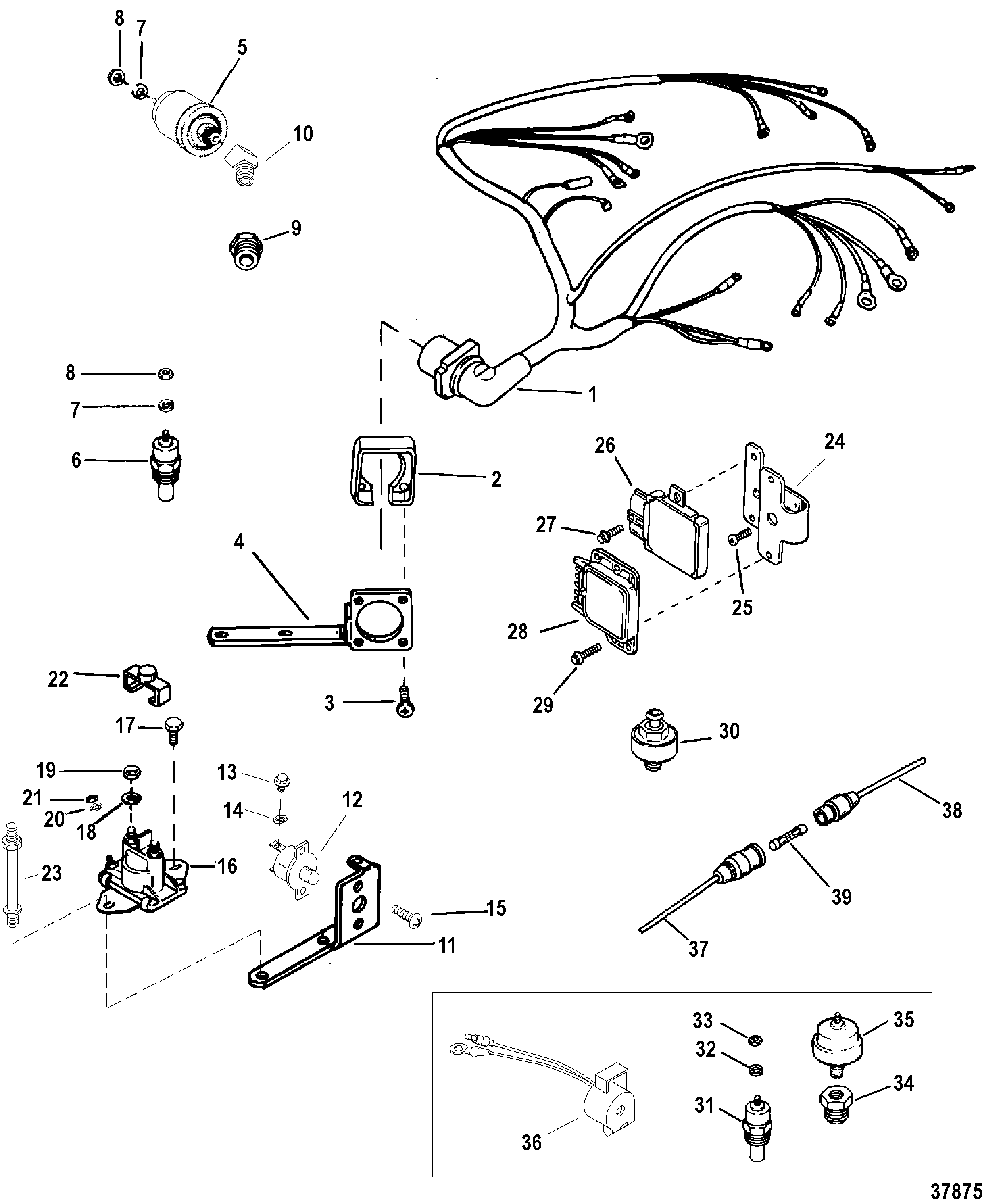

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1996-1997 0F801700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    84-806744A2 HARNESS ASSEMBLY, Wiring
    HARNESS ASSEMBLY, Wiring
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    805468T BRACKET, Wiring Harness Mounting
    BRACKET, Wiring Harness Mounting
  • 5
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 5
    37293T SENDER ASSEMBLY, Oil Pressure (Dual Station)
    SENDER ASSEMBLY, Oil Pressure (Dual Station)
  • 6
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 6
    49734 SENDER ASSEMBLY, Water Temperature (Dual Station)
    SENDER ASSEMBLY, Water Temperature (Dual Station)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    22-805059 FITTING
    FITTING
  • 10
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 11
    899719T01 BRACKET, Electrical, Mounting
    BRACKET, Electrical, Mounting
  • 12
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 13
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 15
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 16
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 17
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 20
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 21
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 22
    85-97861 INSULATOR
    INSULATOR
  • 23
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 24
    807763T BRACKET, Module
    BRACKET, Module
  • 25
    10-861520 SCREW, (10-32 x .50)
    SCREW, (10-32 x .50)
  • 26
    806959A01 MODULE, Ignition Control
    (7.4L BRAVO)
    MODULE, Ignition Control
    (7.4L BRAVO)
  • 26
    806745A01 MODULE, Ignition Control
    (454 MAGNUM)
    MODULE, Ignition Control
    (454 MAGNUM)
  • 27
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 28
    805443 MODULE ASSEMBLY, Knock Control
    MODULE ASSEMBLY, Knock Control
  • 29
    10-806827 SCREW, (#8-32 x .380)
    SCREW, (#8-32 x .380)
  • 30
    8M0077616 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 31
    48952 SWITCH, Water Temperature
    AUDIO WARNING SYSTEM
    SWITCH, Water Temperature
    AUDIO WARNING SYSTEM
  • 32
    13-26996 LOCKWASHER, (#10) Stainless Steel
    AUDIO WARNING SYSTEM
    LOCKWASHER, (#10) Stainless Steel
    AUDIO WARNING SYSTEM
  • 33
    11-45076 NUT, (#10-32) Brass
    AUDIO WARNING SYSTEM
    NUT, (#10-32) Brass
    AUDIO WARNING SYSTEM
  • 34
    22-64013 FITTING, (.375 Male To .125 Female)
    AUDIO WARNING SYSTEM
    FITTING, (.375 Male To .125 Female)
    AUDIO WARNING SYSTEM
  • 35
    87-805605A1 SWITCH ASSEMBLY, Oil Pressure
    AUDIO WARNING SYSTEM
    SWITCH ASSEMBLY, Oil Pressure
    AUDIO WARNING SYSTEM
  • 36
    816492A6 ALARM KIT
    AUDIO WARNING SYSTEM
    ALARM KIT
    AUDIO WARNING SYSTEM
  • 37
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Female)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Female)
  • 38
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red (Male)
    CABLE ASSEMBLY, (5.00 Inches) Red (Male)
  • 39
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
