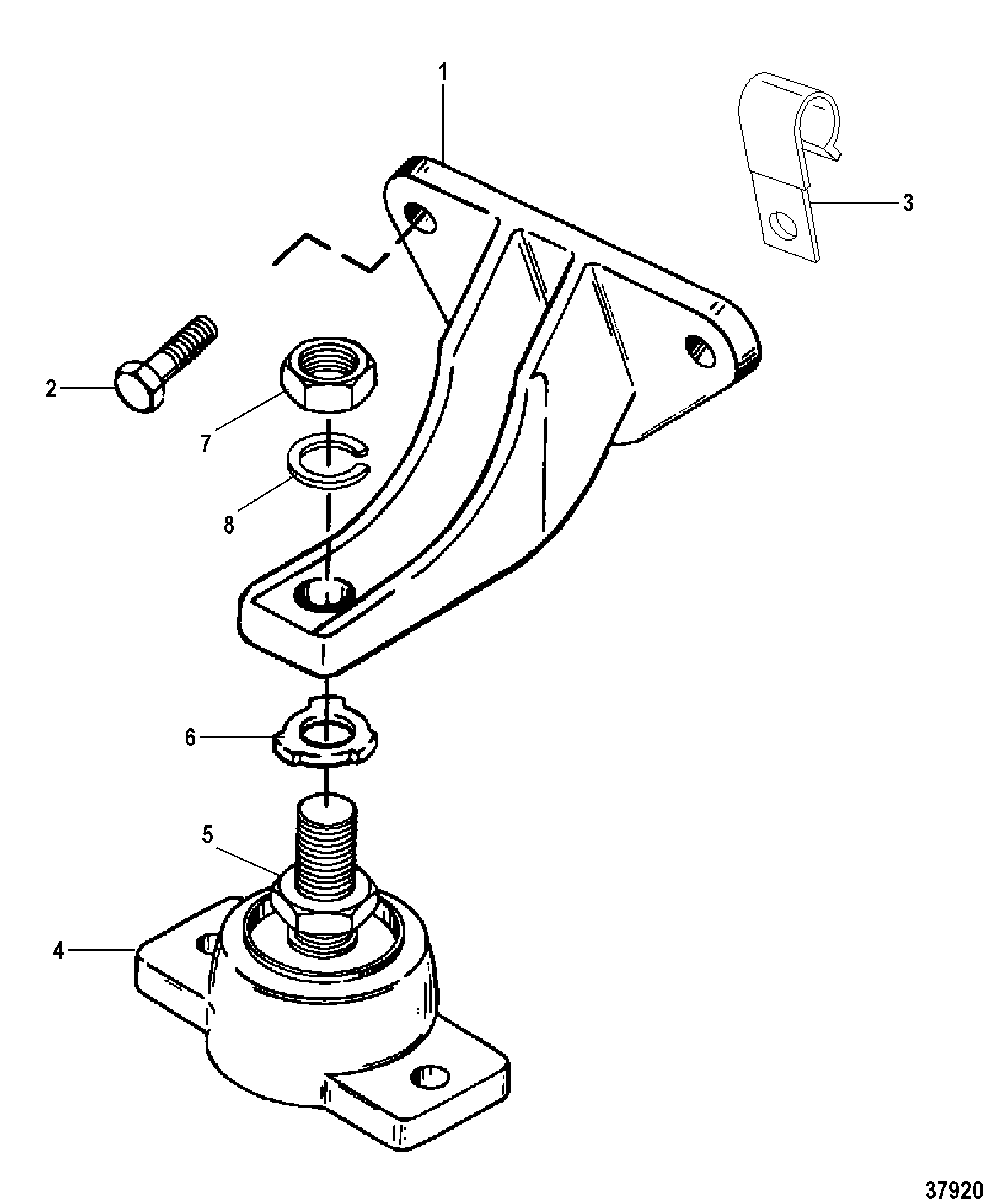

ENGINE MOUNTING для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1996-1997 0F801700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, Mounting
    BRACKET, Mounting
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 4
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 6
    14-12657 TAB WASHER
    TAB WASHER
  • 7
    11-859126 NUT, Jam (3/4-16)
    NUT, Jam (3/4-16)
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
