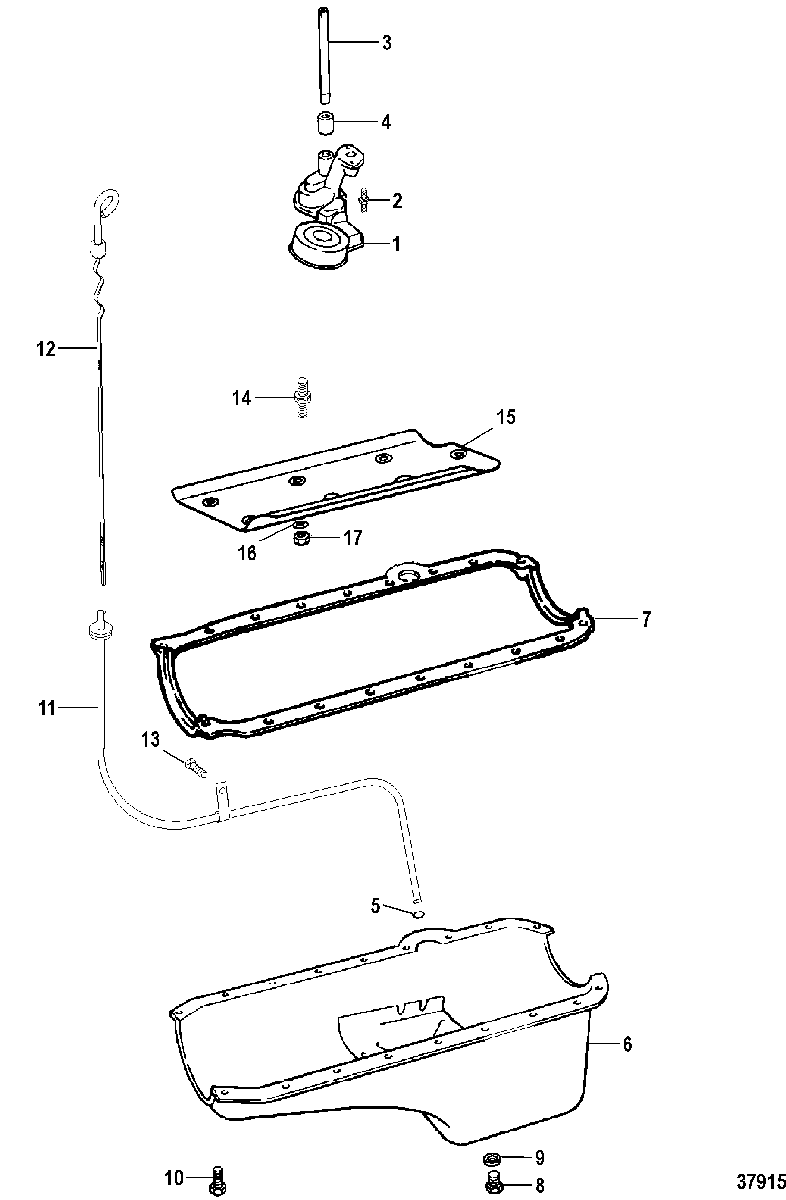

OIL PAN AND OIL PUMP для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1996-1997 0F801700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    16-845599 STUD, Oil Pump Mounting
    STUD, Oil Pump Mounting
  • 3
    8M0046892 SHAFT AND RETAINER
    SHAFT AND RETAINER
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    25-62704 O-RING, (.362 x .103)
    O-RING, (.362 x .103)
  • 6
    845668T PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 7
    27-845628 GASKET, Oil Pan
    GASKET, Oil Pan
  • 8
    10-809911001 SCREW, Oil Drain (M12 x 1.75)
    SCREW, Oil Drain (M12 x 1.75)
  • 9
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 10
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 11
    818631A6 TUBE ASSEMBLY, Dipstick
    TUBE ASSEMBLY, Dipstick
  • 12
    861942T9 DIPSTICK
    DIPSTICK
  • 13
    10-8M0040582 SCREW, (.250-20 x .563)
    SCREW, (.250-20 x .563)
  • 14
    16-843375 STUD, (.375-16/.500-12 x 5.500)
    STUD, (.375-16/.500-12 x 5.500)
  • 15
    843945T BAFFLE, Oil
    BAFFLE, Oil
  • 16
    12-49112 WASHER
    WASHER
  • 17
    11-37500 NUT, (3/8-16) (3/8-16)
    NUT, (3/8-16) (3/8-16)
  • -
    27-850470A96 GASKET SET, Overhaul
    (7.4L BRAVO)
    GASKET SET, Overhaul
    (7.4L BRAVO)
  • -
    27-850465A96 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
