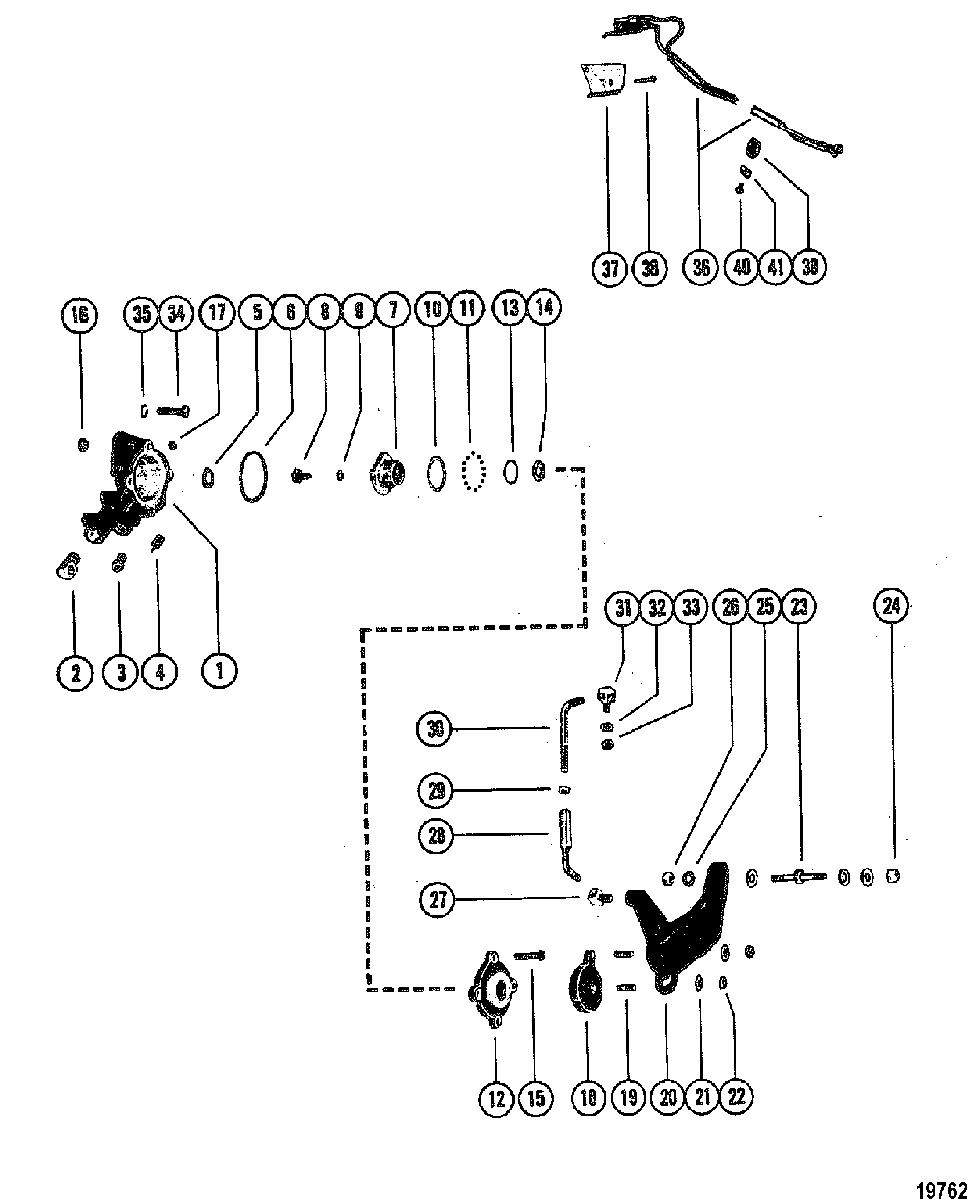

Reverse Lock Valve(S/N-5670316 & Below) для Mercruiser - 440 TRS GM 454 V-8 1983-1986 4179554 THRU 0B485220

  • №
    Артикул
    Название
  • 1
    76812T4 VALVE ASSEMBLY, Reverse Lock
    VALVE ASSEMBLY, Reverse Lock
  • 2
    22-45794 ELBOW, HYDRAULIC TRIM HOSE
    ELBOW, HYDRAULIC TRIM HOSE
  • 3
    22-48167 CONNECTOR, ELBOW
    CONNECTOR, ELBOW
  • 4
    45709 FOLLOWER, CAM
    FOLLOWER, CAM
  • 5
    13-25906 WASHER, WAVE - REVERSE LOCK VALVE
    WASHER, WAVE - REVERSE LOCK VALVE
  • 6
    25-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVE
    O-RING, (1.424 x .103), REVERSE LOCK VALVE
  • 7
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 8
    10-46736 SCREW, (0.5 In.), CAM TO CAM LEVER (1/2')
    SCREW, (0.5 In.), CAM TO CAM LEVER (1/2')
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREW
    LOCKWASHER, (#10) Stainless Steel, CAM SCREW
  • 10
    12-45713 WASHER, RETAINING - BALL TO VALVE COVER
    WASHER, RETAINING - BALL TO VALVE COVER
  • 11
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 12
    45528A2 COVER, REVERSE LOCK VALVE
    COVER, REVERSE LOCK VALVE
  • 13
    25-45711 O-RING, (.612 x .103), VALVE COVER
    O-RING, (.612 x .103), VALVE COVER
  • 14
    12-59570 WASHER, VALVE COVER
    WASHER, VALVE COVER
  • 15
    10-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
    SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE
  • 16
    11-20110 NUT, (#10-32), COVER SCREW
    NUT, (#10-32), COVER SCREW
  • 17
    22-390721 PLUG, (1/8 Inch Brass), PIPE - REVERSE LOCK VALVE
    PLUG, (1/8 Inch Brass), PIPE - REVERSE LOCK VALVE
  • 18
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 19
    16-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")
    STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")
  • 20
    47346T LEVER, SHIFT - CAM LEVER
    LEVER, SHIFT - CAM LEVER
  • 21
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 22
    11-20110 NUT, (#10-32), SHIFT CONTROL LEVER
    NUT, (#10-32), SHIFT CONTROL LEVER
  • 23
    16-34069 STUD, SHIFT CABLE TO SHIFT LEVER (2-1/4")
    STUD, SHIFT CABLE TO SHIFT LEVER (2-1/4")
  • 24
    11-8267089 NUT, (.250-28), SHIFT CABLE STUD
    NUT, (.250-28), SHIFT CABLE STUD
  • 25
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
    WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
  • 26
    11-8267089 NUT, (.250-28), SHIFT CABLE STUD TO SHIFT LEVER
    NUT, (.250-28), SHIFT CABLE STUD TO SHIFT LEVER
  • 27
    27947 SWIVEL, LINK ROD TO SHIFT LEVER
    SWIVEL, LINK ROD TO SHIFT LEVER
  • 28
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 29
    11-25168 NUT, (.250-28), JAM - LINK ROD
    NUT, (.250-28), JAM - LINK ROD
  • 30
    38982 LINK ROD, SHIFT LEVER
    LINK ROD, SHIFT LEVER
  • 31
    47459 SWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVER
    SWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVER
  • 32
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD SWIVEL
    WASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD SWIVEL
  • 33
    11-20110 NUT, (#10-32), LINK ROD SWIVEL
    NUT, (#10-32), LINK ROD SWIVEL
  • 34
    10-25299 SCREW, (.312-18 x .75), REV. LOCK VALVE
    SCREW, (.312-18 x .75), REV. LOCK VALVE
  • 35
    13-21804 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 36
    46482A2 SWITCH ASSEMBLY, CUT-OUT- REVERSE LOCK VALVE
    SWITCH ASSEMBLY, CUT-OUT- REVERSE LOCK VALVE
  • 37
    45717 SHIELD, CUT-OUT SWITCH
    SHIELD, CUT-OUT SWITCH
  • 38
    10-36003 SCREW, SHIELD & SWITCH (3/4")
    SCREW, SHIELD & SWITCH (3/4")
  • 39
    54-24836 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
    CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
  • 40
    10-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING
    SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING
  • 41
    8M0084613 C WASHER, CLIP ATTACHING SCREW
    C WASHER, CLIP ATTACHING SCREW
