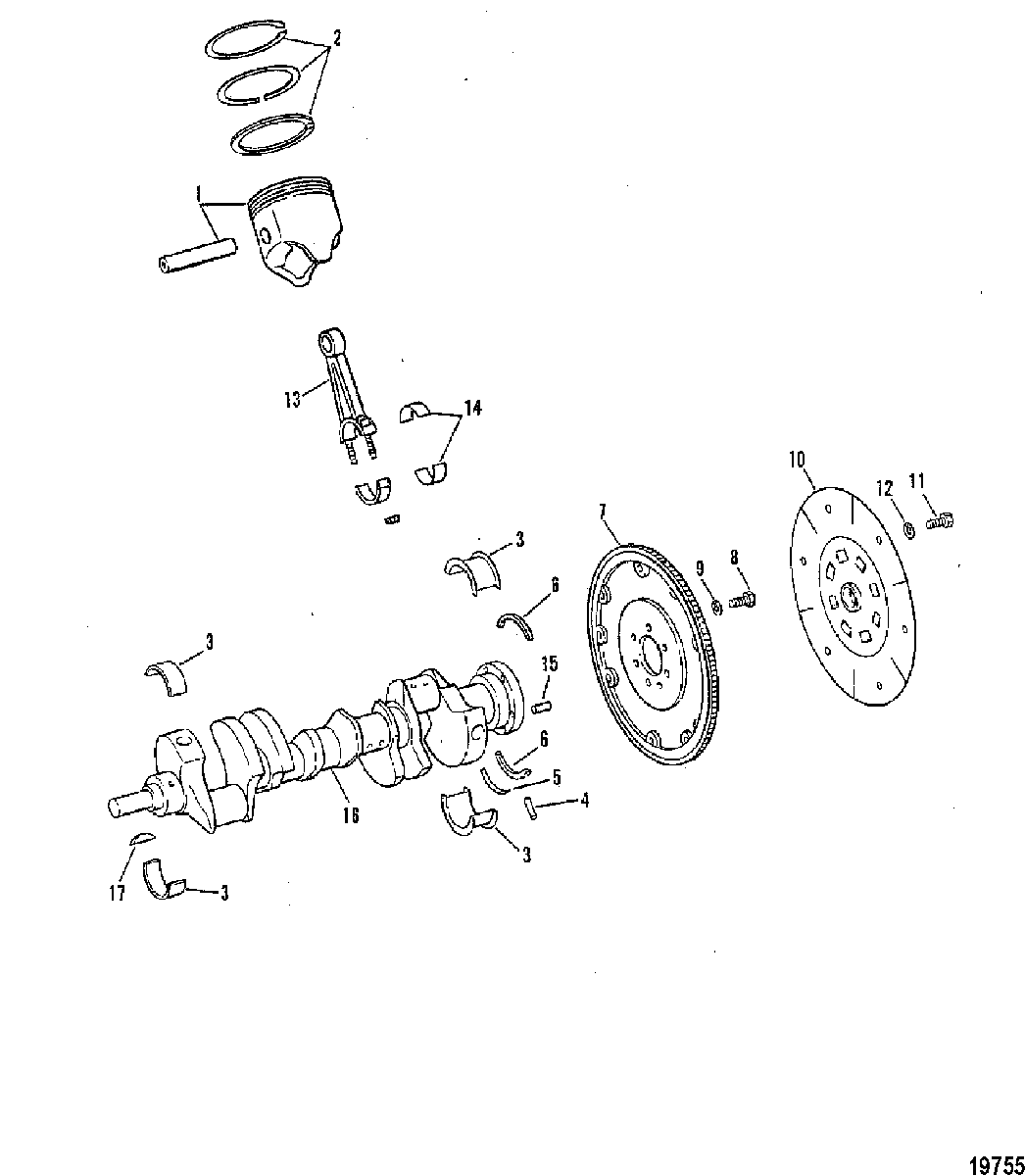

Crankshaft, Pistons and Connecting Rods(460) для Mercruiser - 440 TRS GM 454 V-8 1983-1986 4179554 THRU 0B485220

  • №
    Артикул
    Название
  • 1
    41127A1 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 2
    39-98697 RING SET, Piston (STANDARD)
    RING SET, Piston (STANDARD)
  • 3
    23-8M0051198 BEARING SET, CRANKSHAFT (STANDARD)
    BEARING SET, CRANKSHAFT (STANDARD)
  • 4
    17-843378 PIN, Dowel (1/4 In. Diameter), REAR CRANKSHAFT BEARING CAP (1/4" DIA.)
    PIN, Dowel (1/4 In. Diameter), REAR CRANKSHAFT BEARING CAP (1/4" DIA.)
  • 5
    15-98184 SHIM, REAL OIL SEAL
    SHIM, REAL OIL SEAL
  • 6
    26-8M0062773 SEAL, Oil, REAR - CRANKSHAFT BEARING CAP
    SEAL, Oil, REAR - CRANKSHAFT BEARING CAP
  • 7
    230-81002 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
    SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT
  • 9
    13-39131 LOCKWASHER, (.437), FLYWHEEL SCREW
    LOCKWASHER, (.437), FLYWHEEL SCREW
  • 10
    8M0051206 DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 11
    10-35091 SCREW, (.375-16 x 1.00), DRIVE PLATE
    SCREW, (.375-16 x 1.00), DRIVE PLATE
  • 12
    13-35048 LOCKWASHER, (.375), DRIVE PLATE SCREW
    LOCKWASHER, (.375), DRIVE PLATE SCREW
  • 13
    622-6507 CONNECTING ROD
    CONNECTING ROD
  • 14
    23-841447A1 BEARING SET, CONNECTING ROD (STANDARD)
    BEARING SET, CONNECTING ROD (STANDARD)
  • 15
    17-43504 PIN, Dowel, CRANKSHAFT
    PIN, Dowel, CRANKSHAFT
  • 16
    65621 CRANKSHAFT
    CRANKSHAFT
  • 17
    28-34466 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
  • -
    27-99386A2 GASKET SET
    GASKET SET
