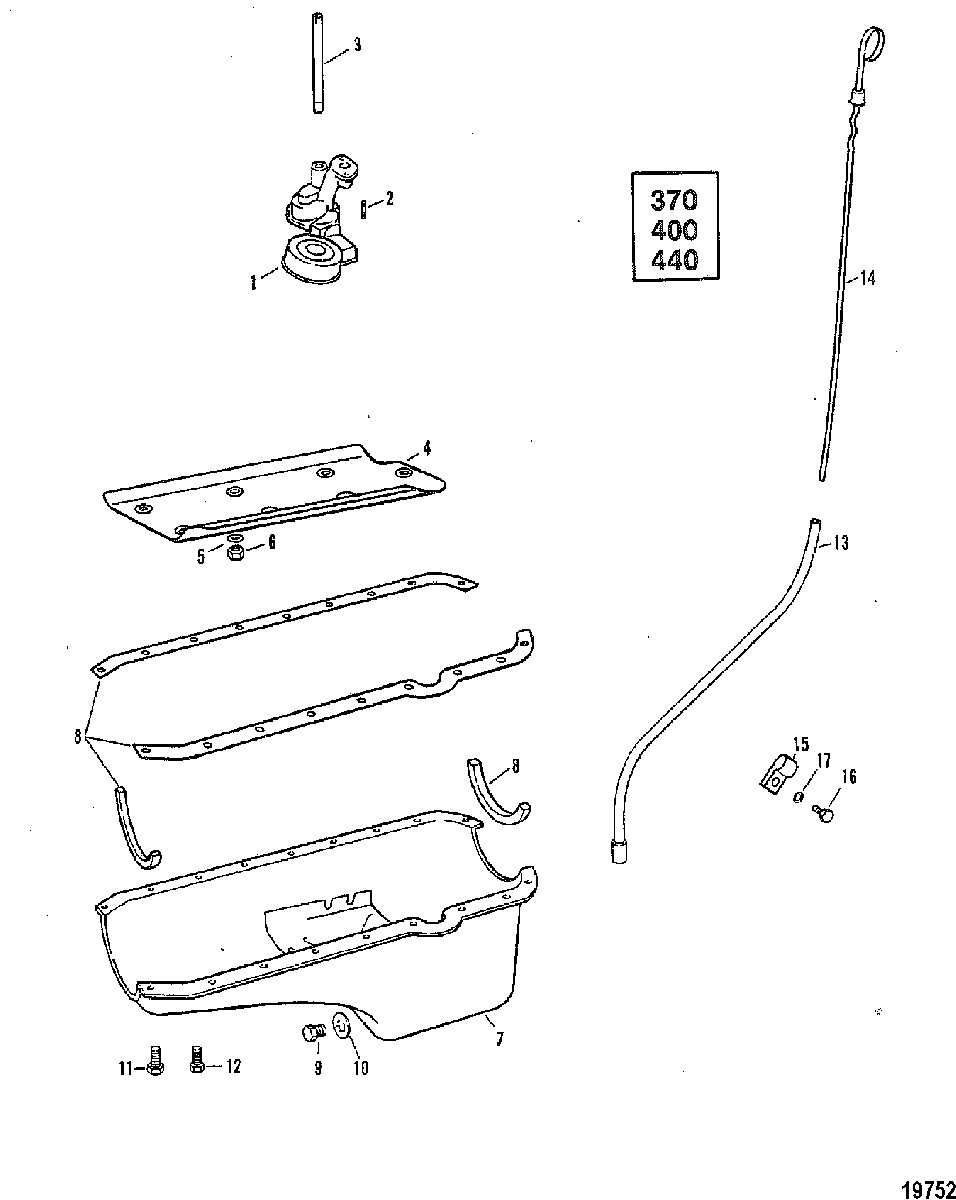

Oil Pan and Oil Pump(370/400/440) для Mercruiser - 440 TRS GM 454 V-8 1983-1986 4179554 THRU 0B485220

  • №
    Артикул
    Название
  • 1
    808693A1 PUMP, Oil, WITH SCREEN
    PUMP, Oil, WITH SCREEN
  • 2
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 3
    848511 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 4
    N.S.S. Not Sold Separate, BAFFLE-OIL PAN (CYLINDER BLOCK) -GM #3967854
    Not Sold Separate, BAFFLE-OIL PAN (CYLINDER BLOCK) -GM #3967854
  • 5
    12-49112 WASHER, OIL PAN BAFFLE/OIL PUMP STUD
    WASHER, OIL PAN BAFFLE/OIL PUMP STUD
  • 6
    11-37500 NUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUD
    NUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUD
  • 7
    13800 PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 8
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 9
    10-49956 SCREW, Drain, PIPE - OIL PAN DRAIN
    SCREW, Drain, PIPE - OIL PAN DRAIN
  • 10
    27-8M0077608 GASKET, Drain - OIL PAN SCREW
    GASKET, Drain - OIL PAN SCREW
  • 11
    10-34500 SCREW, (.312-18 x .625), OIL PAN
    SCREW, (.312-18 x .625), OIL PAN
  • 12
    10-72607 SCREW, (.250-20 x .375), OIL PAN
    SCREW, (.250-20 x .375), OIL PAN
  • 13
    68035 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 14
    74054 DIPSTICK, Oil Level, OIL LEVEL (DIPSTICK)
    DIPSTICK, Oil Level, OIL LEVEL (DIPSTICK)
  • 15
    54-71982 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 16
    10-98253 SCREW, (.250-20 x .500), CLIP TO BRACKET
    SCREW, (.250-20 x .500), CLIP TO BRACKET
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel, CLIP SCREW
    LOCKWASHER, (.250) Stainless Steel, CLIP SCREW
