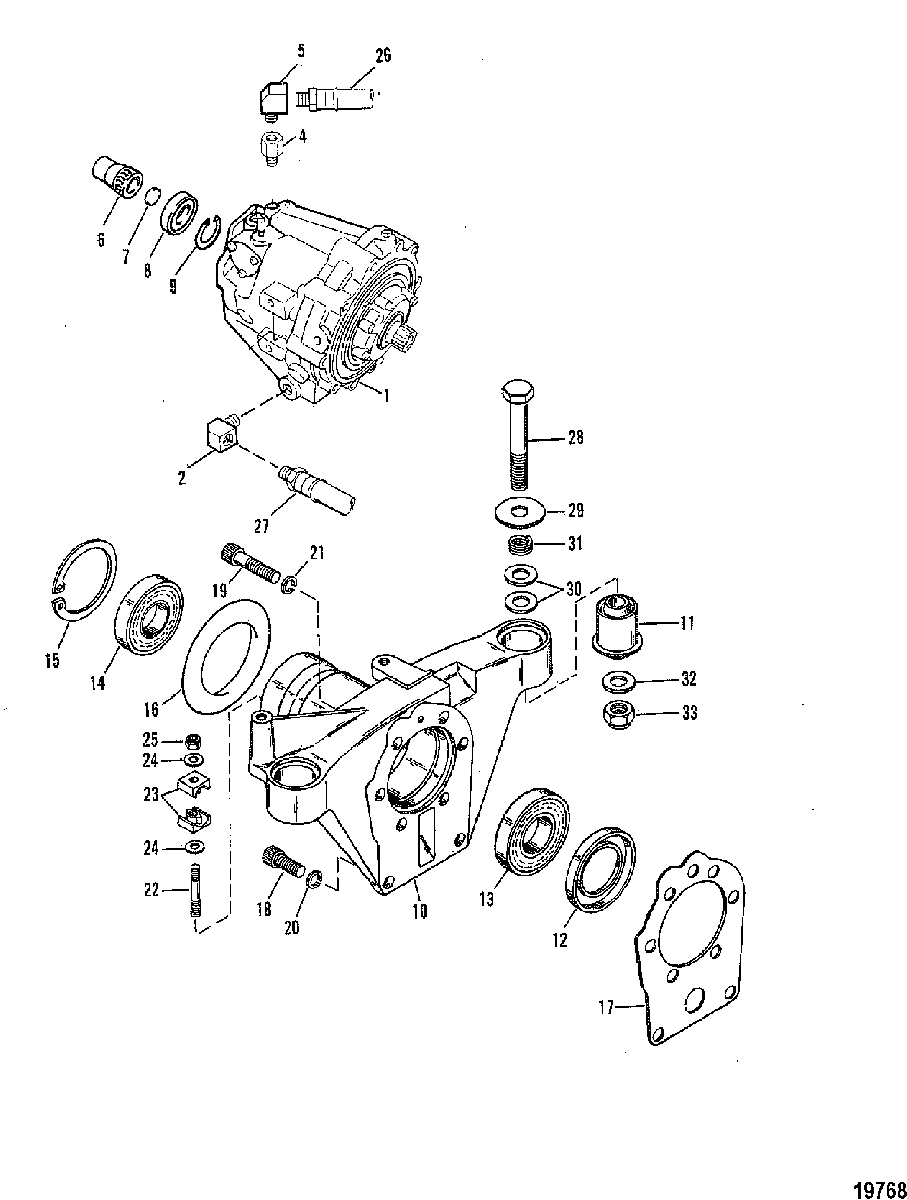

Transmission Assembly(S/N-5670317 & Up для Mercruiser - 370 TRS GM 454 V-8 1978-1985 4179554 THRU 6721527

  • №
    Артикул
    Название
  • 1
    47754A9 TRANSMISSION ASSEMBLY
    (47754A3-M/C III ONLY)
    TRANSMISSION ASSEMBLY
    (47754A3-M/C III ONLY)
  • 2
    22-47629 ELBOW, 90 Degree, TRANSMISSION TO OIL HOSE
    ELBOW, 90 Degree, TRANSMISSION TO OIL HOSE
  • 4
    22-88517 FITTING, Reducing
    FITTING, Reducing
  • 5
    22-47631 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 6
    57758A2 COUPLING ASSEMBLY
    (47339A4-M/C III ONLY )
    COUPLING ASSEMBLY
    (47339A4-M/C III ONLY )
  • 7
    19-47463 EXPANSION PLUG, EXPANSION-ENGINE COUPLING
    EXPANSION PLUG, EXPANSION-ENGINE COUPLING
  • 8
    30-47470 BEARING, Ball, ENGINE COUPLING
    BEARING, Ball, ENGINE COUPLING
  • 9
    53-47469 RING, SNAP-BALL BEARING TO ENGINE COUPLING
    RING, SNAP-BALL BEARING TO ENGINE COUPLING
  • 10
    98322A2 TAILSTOCK ASSEMBLY
    (4733A1-M/C III ONLY)
    TAILSTOCK ASSEMBLY
    (4733A1-M/C III ONLY)
  • 11
    35852 MOUNT, RUBBER-TAILSTOCK
    MOUNT, RUBBER-TAILSTOCK
  • 12
    26-47465 SEAL, Oil, TAILSTOCK
    SEAL, Oil, TAILSTOCK
  • 13
    30-57762T BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)
    BEARING, Ball (3.156), TAILSTOCK (3-5/32" O.D.)
  • 14
    30-32537T BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)
    BEARING, Ball (2.843), TAILSTOCK (2-27/32" O.D.)
  • 15
    53-54481 RING, SNAP-BALL BEARING TO TAILSTOCK
    RING, SNAP-BALL BEARING TO TAILSTOCK
  • 16
    25-54067 SEAL, TAILSTOCK
    SEAL, TAILSTOCK
  • 17
    27-47903 GASKET, TAILSTOCK
    GASKET, TAILSTOCK
  • 18
    10-29081 SCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSION
    SCREW, (.437-14 x 1.250), TAILSTOCK TO TRANSMISSION
  • 19
    10-99524 SCREW, (.437-14 x 2.00), TAILSTOCK TO TRANSMISSION
    SCREW, (.437-14 x 2.00), TAILSTOCK TO TRANSMISSION
  • 20
    13-30381 LOCKWASHER, Hi Collar (.437), TAILSTOCK SCREW
    LOCKWASHER, Hi Collar (.437), TAILSTOCK SCREW
  • 21
    13-32993 LOCKWASHER, (.437), TAILSTOCK SCREW
    LOCKWASHER, (.437), TAILSTOCK SCREW
  • 22
    16-99801 STUD, CLUMP BLOCK
    STUD, CLUMP BLOCK
  • 23
    41058 CLAMP BLOCK, SHIFT CABLE
    CLAMP BLOCK, SHIFT CABLE
  • 24
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel, CLAMP BLOCK STUD
    WASHER, (.255 x .620 x .030) Stainless Steel, CLAMP BLOCK STUD
  • 25
    11-35888 NUT, (.250-28) Stainless Steel, CLAMP BLOCK STUD
    NUT, (.250-28) Stainless Steel, CLAMP BLOCK STUD
  • 26
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (16-3/4")
    HOSE, TRANSMISSION TO OIL COOLER (16-3/4")
  • 27
    32-475163 HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
    HOSE, TRANSMISSION TO OIL COOLER (7-7/8")
  • 28
    10-47467 SCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATE
    SCREW, (.625-18 x 5.500), TAILSTOCK TO INNER TRANSOM PLATE
  • 29
    12-47475 WASHER, (1.120 x 2.250 x .19)
    WASHER, (1.120 x 2.250 x .19)
  • 30
    12-47466 WASHER, (1.125 x 1.750 x .16)
    WASHER, (1.125 x 1.750 x .16)
  • 31
    13-34846 LOCKWASHER, Thackeray Spring (.636)
    LOCKWASHER, Thackeray Spring (.636)
  • 32
    12-33171 WASHER, (.6406 x 1.750 x .125)
    WASHER, (.6406 x 1.750 x .125)
  • 33
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
