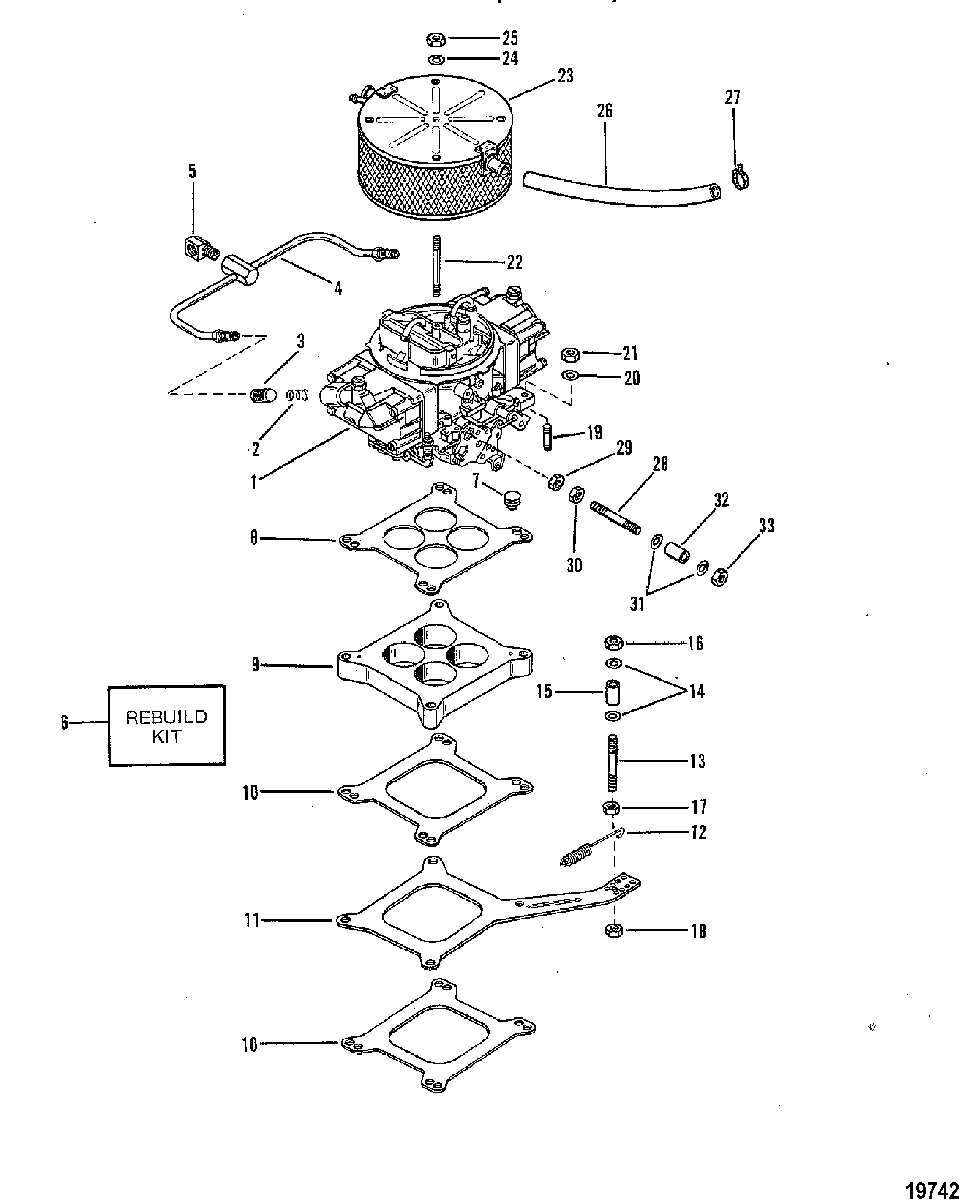

Carburetor and Linkage(440/460) для Mercruiser - 370 TRS GM 454 V-8 1978-1985 4179554 THRU 6721527

  • №
    Артикул
    Название
  • 1
    13549A25 CARBURETOR
    CARBURETOR
  • 2
    3302-9032 SPRING, FILTER
    SPRING, FILTER
  • 3
    35-93568 FILTER
    FILTER
  • 4
    32-94068A1 TUBE, FUEL INLET
    TUBE, FUEL INLET
  • 5
    22-93385 FITTING, (90 Degree), FUEL INLET TUBE
    FITTING, (90 Degree), FUEL INLET TUBE
  • 6
    13220 REBUILD KIT, CARBURETOR OVERHAUL
    REBUILD KIT, CARBURETOR OVERHAUL
  • 7
    22-36373 PLUG, (.375-18) Hex - Steel, INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375-18) Hex - Steel, INTAKE MANIFOLD VACUUM HOLE
  • 8
    27-41609 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 9
    41548 SPACER, CARBURETOR
    SPACER, CARBURETOR
  • 10
    27-41610 GASKET, SPACER
    GASKET, SPACER
  • 11
    940701 BRACKET, THROTTLE
    BRACKET, THROTTLE
  • 12
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 13
    16-728091 STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE
    STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE
  • 14
    12-69056 WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
    WASHER, (.255 x .625 x .0312), THROTTLE CABLE STUD
  • 15
    23-31866 SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
    SPACER, (.256 x .313 x .625), THROTTLE CABLE STUD
  • 16
    11-8267098 NUT, (.250-20), THROTTLE CABLE STUD
    NUT, (.250-20), THROTTLE CABLE STUD
  • 17
    11-21825 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 18
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 19
    16-30668 STUD, (.312-18/.312-24 x 2.812), CARBURETOR
    STUD, (.312-18/.312-24 x 2.812), CARBURETOR
  • 20
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 21
    11-82670911 NUT, (.312-24) Stainless Steel, CARBURETOR STUD
    NUT, (.312-24) Stainless Steel, CARBURETOR STUD
  • 22
    16-306671 STUD, (.250-20/.250-28 x 3.125), FLAME ARRESTOR
    STUD, (.250-20/.250-28 x 3.125), FLAME ARRESTOR
  • 23
    95946 ARRESTOR, Flame
    ARRESTOR, Flame
  • 24
    12-22937 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 25
    11-8267089 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 26
    32-8M0062669 HOSE, VENT (11')
    HOSE, VENT (11')
  • 27
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 28
    16-728091 STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE TO CARBURETOR
    STUD, (.250-20/.250-28 x 1.620), THROTTLE CABLE TO CARBURETOR
  • 29
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 30
    11-21825 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 31
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
  • 32
    23-53811 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 33
    11-8267098 NUT, (.250-20), THROTTLE CABLE STUD
    NUT, (.250-20), THROTTLE CABLE STUD
  • -
    27-99386A2 GASKET SET
    GASKET SET
