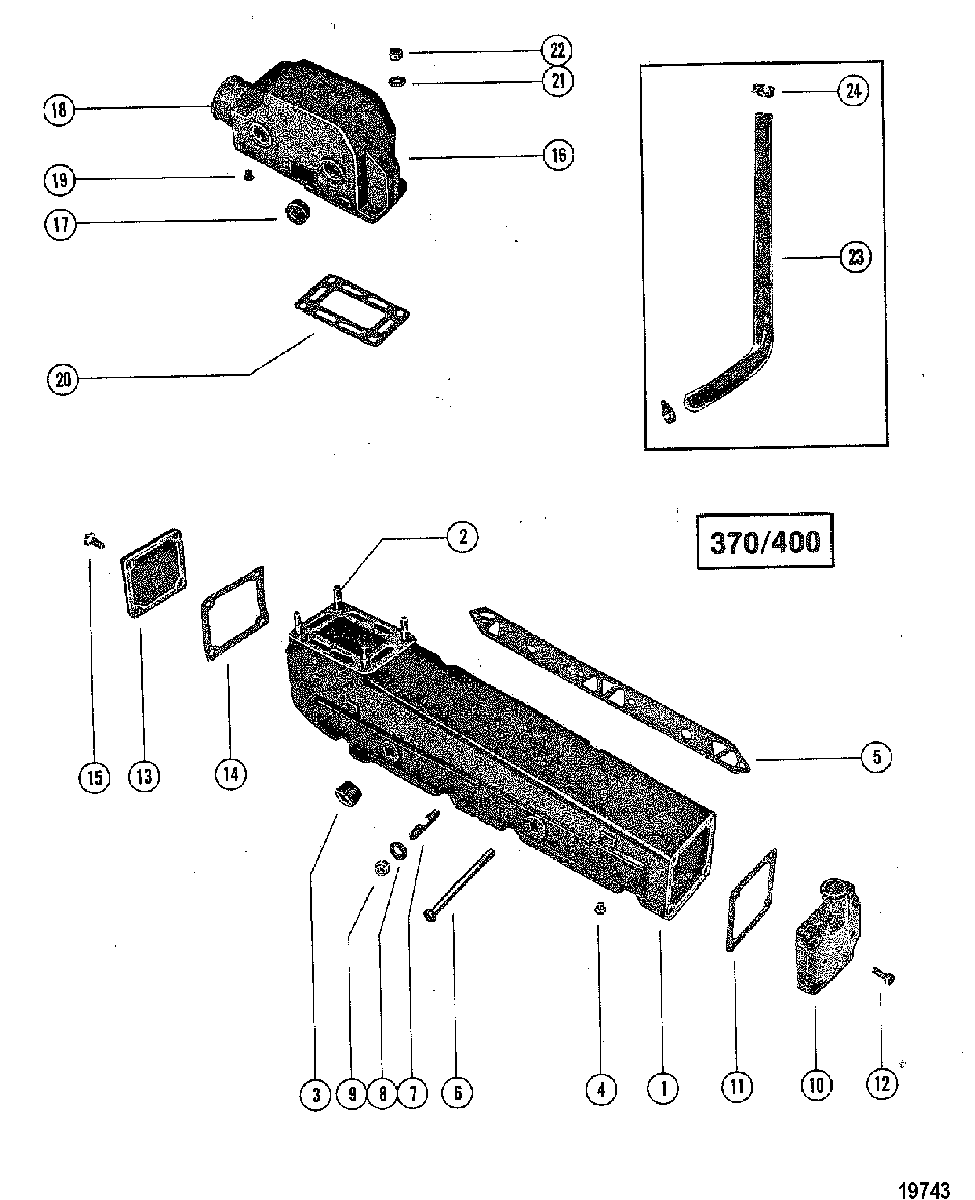

Exhaust Manifold/Elbow(370/400) для Mercruiser - 370 TRS GM 454 V-8 1978-1985 4179554 THRU 6721527

  • №
    Артикул
    Название
  • 1
    47735A17 MANIFOLD ASSEMBLY, Exhaust, PORT
    MANIFOLD ASSEMBLY, Exhaust, PORT
  • 1
    47736A17 MANIFOLD ASSEMBLY, Exhaust, STARBOARD
    MANIFOLD ASSEMBLY, Exhaust, STARBOARD
  • 2
    16-49545 STUD, (3/8 x 1.75), MANIFOLD TO ELBOW (1-3/4')
    STUD, (3/8 x 1.75), MANIFOLD TO ELBOW (1-3/4')
  • 3
    22-48118 PLUG, PIPE - EXHAUST MANIFOLD
    PLUG, PIPE - EXHAUST MANIFOLD
  • 4
    22-328022 PLUG, Pipe (.125-27), PIPE-EXHAUST MANIFOLD
    PLUG, Pipe (.125-27), PIPE-EXHAUST MANIFOLD
  • 5
    27-46820 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-37612 SCREW, (.375-16 x 1.250), EXHAUST MANIFOLD TO CYLINDER HEAD
    SCREW, (.375-16 x 1.250), EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-26486 SCREW, (.375-16 x 2.375), EXHAUST MANIFOLD TO CYLINDER HEAD
    SCREW, (.375-16 x 2.375), EXHAUST MANIFOLD TO CYLINDER HEAD
  • 7
    16-49545 STUD, (3/8 x 1.75), EXHAUST MANIFOLD TO CYLINDER HEAD (1-3/4')
    STUD, (3/8 x 1.75), EXHAUST MANIFOLD TO CYLINDER HEAD (1-3/4')
  • 8
    12-20553 WASHER, (.406 x .734 x .063), EXHAUST MANIFOLD SCREWS AND STUDS
    WASHER, (.406 x .734 x .063), EXHAUST MANIFOLD SCREWS AND STUDS
  • 9
    11-25269 NUT, (.375-24), EXHAUST MANIFOLD STUDS
    NUT, (.375-24), EXHAUST MANIFOLD STUDS
  • 10
    60252A2 END CAP, EXHAUST MANIFOLD (FRONT)
    END CAP, EXHAUST MANIFOLD (FRONT)
  • 11
    27-480431 GASKET, END CAP/CONNECTOR-TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR-TO EXHAUST MANIFOLD
  • 12
    10-35386 SCREW, (.312-18 x 1.00), END CAP/CONNECTOR-TO EXHAUST MANIFOLD
    SCREW, (.312-18 x 1.00), END CAP/CONNECTOR-TO EXHAUST MANIFOLD
  • 13
    73813A1 END CAP ASSEMBLY, Front - EXHAUST MANIFOLD (REAR)
    END CAP ASSEMBLY, Front - EXHAUST MANIFOLD (REAR)
  • 14
    27-480431 GASKET, END CAP-TO EXHAUST MANIFOLD
    GASKET, END CAP-TO EXHAUST MANIFOLD
  • 15
    10-23703 SCREW, (.312-18 x .88), END CAP-TO EXHAUST MANIFOLD
    SCREW, (.312-18 x .88), END CAP-TO EXHAUST MANIFOLD
  • 15
    10-35386 SCREW, (.312-18 x 1.00), END CAP-TO EXHAUST MANIFOLD
    SCREW, (.312-18 x 1.00), END CAP-TO EXHAUST MANIFOLD
  • 16
    72963A9 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 17
    22-328022 PLUG, Pipe (.125-27), EXHAUST ELBOW
    PLUG, Pipe (.125-27), EXHAUST ELBOW
  • 18
    32-58616A2 TUBE, WATER, SEPARATION - EXHAUST ELBOW
    TUBE, WATER, SEPARATION - EXHAUST ELBOW
  • 19
    22-416223 PLUG, (3/4-14), EXHAUST ELBOW
    PLUG, (3/4-14), EXHAUST ELBOW
  • 20
    27-48042 GASKET, EXHAUST ELBOW-TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW-TO EXHAUST MANIFOLD
  • 21
    13-35048 LOCKWASHER, (.375), EXHAUST ELBOW-TO EXHAUST MANIFOLD STUD
    LOCKWASHER, (.375), EXHAUST ELBOW-TO EXHAUST MANIFOLD STUD
  • 22
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 23
    32-48132 HOSE, END CAP TO THERMOSTAT HOUSING
    HOSE, END CAP TO THERMOSTAT HOUSING
  • 24
    54-815504220 CLAMP, END CAP TO THERMOSTAT HOUSING HOSE
    CLAMP, END CAP TO THERMOSTAT HOUSING HOSE
  • -
    27-47410A1 GASKET SET
    GASKET SET
