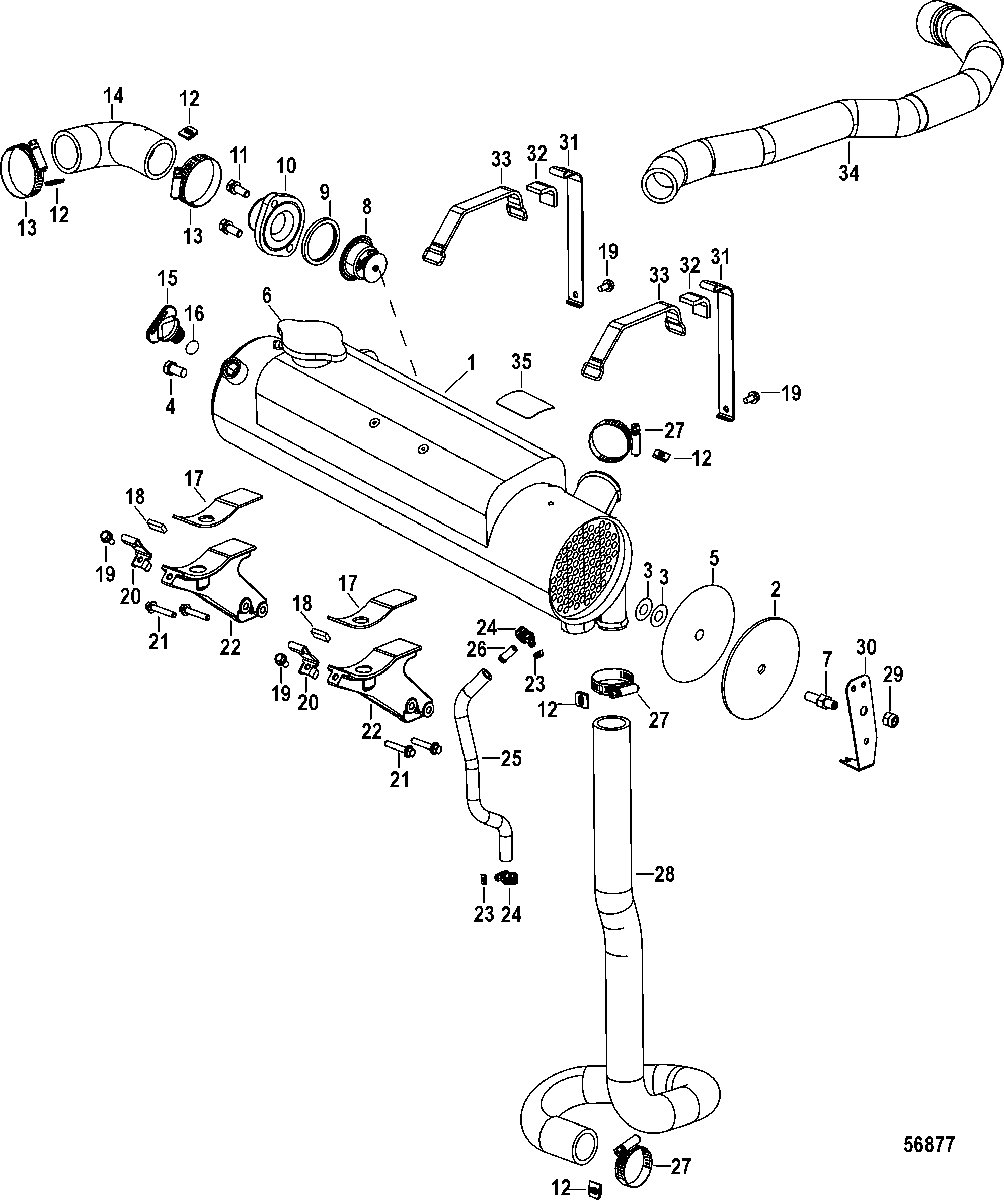

Fresh Water Cooling, Heat Exchanger для Mercruiser - 4.5L MPI 250 Alpha/Bravo 2A441953 & Up
-
№АртикулНазвание
-
18M0095463 HEAT EXCHANGER ASSEMBLYHEAT EXCHANGER ASSEMBLY
-
2864708 COVER, EndCOVER, End
-
325-8M0039163 O-RING, (3/8 x 1/8)O-RING, (3/8 x 1/8)
-
410-94247 SCREW, (.375-16 x .750) Stainless SteelSCREW, (.375-16 x .750) Stainless Steel
-
525-8M0084884 SEALSEAL
-
636-8148791 CAP, PressureCAP, Pressure
-
716-8M0029252 STUDSTUD
-
8864493 THERMOSTAT, 77A°C (170A°F)THERMOSTAT, 77A°C (170A°F)
-
925-8071341 SEALSEAL
-
10807075A1 COVERCOVER
-
1110-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
1219-8M0074364 CAPCAP
-
1354-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
1432-8M0088806 HOSE, Thermostat to ExchangerHOSE, Thermostat to Exchanger
-
1522-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1625-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
178M0095988 PAD, Heat ExchangerPAD, Heat Exchanger
-
188M0096073 PAD, Heat Exchanger BracketPAD, Heat Exchanger Bracket
-
1910-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
208M0095427 BRACKET, Heat ExchangerBRACKET, Heat Exchanger
-
2110-892454035 BOLT, (M6 x 36)BOLT, (M6 x 36)
-
228M0095460 BRACKETBRACKET
-
2319-8M0074363 CAPCAP
-
2454-815504105 CLAMP, Worm Gear (11-18 mm)CLAMP, Worm Gear (11-18 mm)
-
2532-8M0086594 HOSE, Fuel Module to Heat ExchangerHOSE, Fuel Module to Heat Exchanger
-
2622-8M0085864 FITTINGFITTING
-
2754-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
2832-8M0085910 HOSE, Distribution Housing to Heat ExchangerHOSE, Distribution Housing to Heat Exchanger
-
2911-82670912 NUT, (.375-16)NUT, (.375-16)
-
308M0081037 BRACKET, Air ActuatorBRACKET, Air Actuator
-
318M0095398 BRACKET, Heat ExchangerBRACKET, Heat Exchanger
-
328M0096078 PAD, Heat Exchanger BracketPAD, Heat Exchanger Bracket
-
33808023T STRAP, RetainingSTRAP, Retaining
-
3432-8M0094644 HOSE, Exchanger to Poppet ValveHOSE, Exchanger to Poppet Valve
-
3537-8M0095464 DECAL SETDECAL SET
