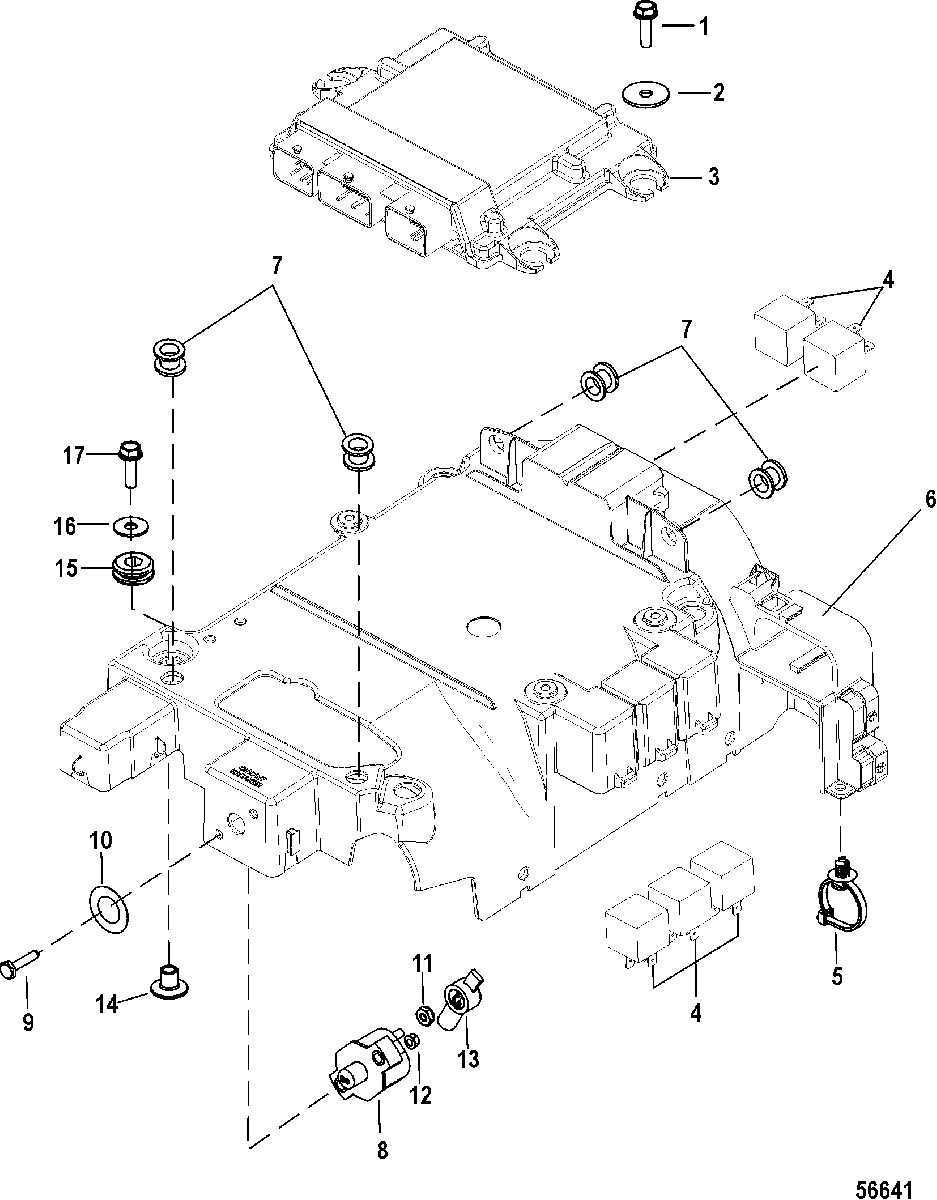

Electrical Components, Bracket and Propulsion Control Module для Mercruiser - 4.5L MPI 250 Alpha/Bravo 2A441953 & Up

‹-+›
  • №
    Артикул
    Название
  • 1
    10-897445501 SCREW, (M6 x 20 MM)
    SCREW, (M6 x 20 MM)
  • 2
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 3
    77-8M0097176 PCM, Propulsion Control Module
    250 HP A EC (DTM)
    PCM, Propulsion Control Module
    250 HP A EC (DTM)
  • 3
    77-8M0097177 PCM, Propulsion Control Module
    250 HP A Non-EC (DTM)
    PCM, Propulsion Control Module
    250 HP A Non-EC (DTM)
  • 3
    77-8M0097178 PCM, Propulsion Control Module
    250 HP B Non-EC (DTS)
    PCM, Propulsion Control Module
    250 HP B Non-EC (DTS)
  • 3
    77-8M0097179 PCM, Propulsion Control Module
    250 HP B EC (DTS)
    PCM, Propulsion Control Module
    250 HP B EC (DTS)
  • 3
    77-8M0097180 PCM, Propulsion Control Module
    250 HP B EC (DTM)
    PCM, Propulsion Control Module
    250 HP B EC (DTM)
  • 3
    77-8M0097181 PCM, Propulsion Control Module
    250 HP B Non-EC (DTM)
    PCM, Propulsion Control Module
    250 HP B Non-EC (DTM)
  • 3
    77-8M0104328 PCM, Propulsion Control Module
    200 HP A EC (DTM)
    PCM, Propulsion Control Module
    200 HP A EC (DTM)
  • 3
    77-8M0104329 PCM, Propulsion Control Module
    200 HP A Non-EC (DTM)
    PCM, Propulsion Control Module
    200 HP A Non-EC (DTM)
  • 4
    8M0057697 CUBE RELAY
    CUBE RELAY
  • 5
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 6
    8M0095476 BRACKET, Electrical
    BRACKET, Electrical
  • 7
    25-8M0096302 GROMMET
    GROMMET
  • 8
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 9
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 10
    37-72554 DECAL, Circuit Breaker
    DECAL, Circuit Breaker
  • 11
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 12
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 13
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 14
    23-856954 BUSHING
    BUSHING
  • 15
    25-834985 GROMMET
    GROMMET
  • 16
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 17
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • NS
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
