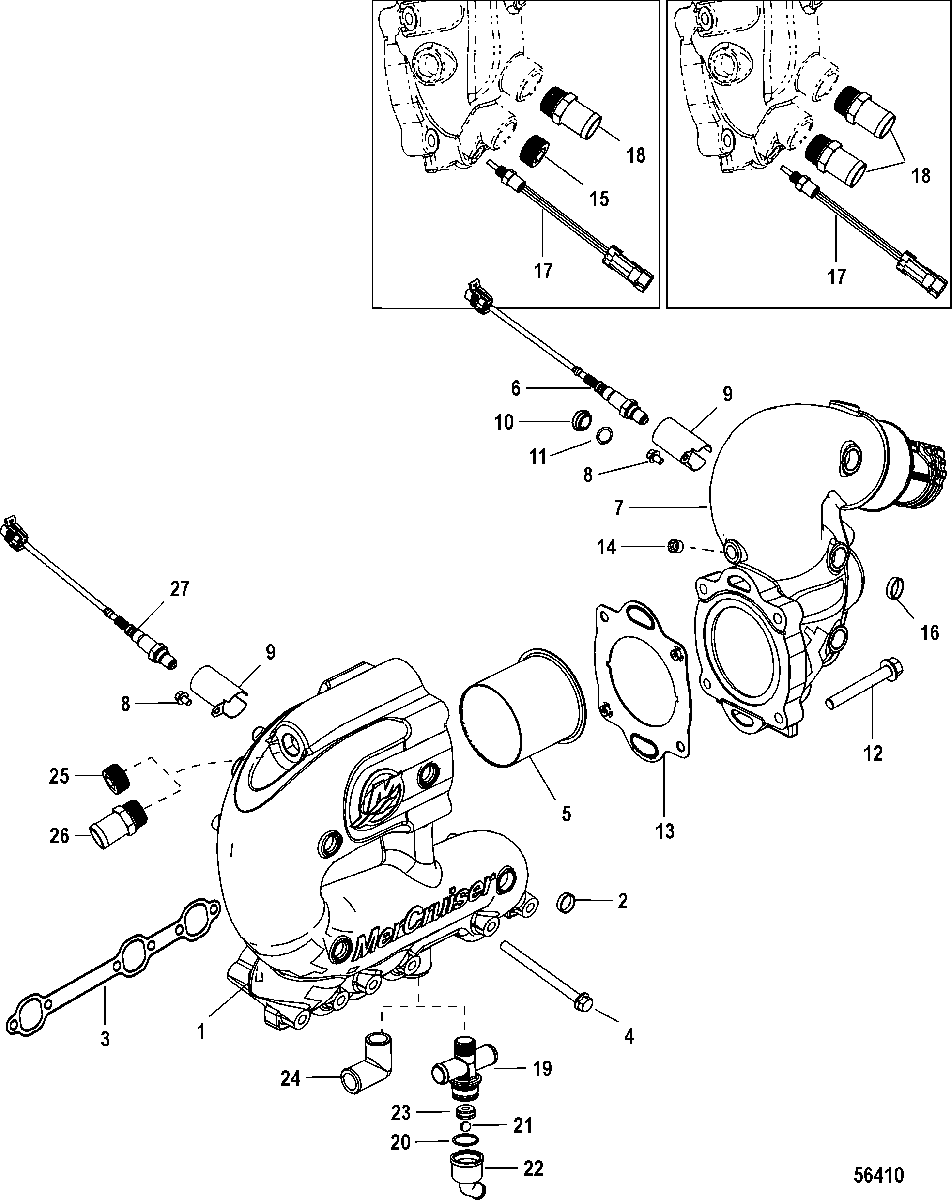

Exhaust Manifold and Elbow для Mercruiser - 4.5L MPI 250 Alpha/Bravo 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    8M0104214 MANIFOLD ASSEMBLY, Exhaust, Port
    MANIFOLD ASSEMBLY, Exhaust, Port
  • 1
    8M0104216 MANIFOLD ASSEMBLY, Exhaust, Starboard
    MANIFOLD ASSEMBLY, Exhaust, Starboard
  • 2
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 3
    27-99757 GASKET
    GASKET
  • 4
    10-8M0144800 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 5
    8M0095469 CATALYST
    EC
    CATALYST
    EC
  • 6
    8M2003959 SENSOR, Oxygen
    EC
    SENSOR, Oxygen
    EC
  • 7
    8M0104207 ELBOW ASSEMBLY, No Rise, Port
    ELBOW ASSEMBLY, No Rise, Port
  • 7
    8M0104208 ELBOW ASSEMBLY, No Rise, Starboard
    ELBOW ASSEMBLY, No Rise, Starboard
  • 7
    8M0104209 ELBOW ASSEMBLY, 2 Inch Riser (Includes Port & Starboard)
    ELBOW ASSEMBLY, 2 Inch Riser (Includes Port & Starboard)
  • 7
    8M0104210 ELBOW ASSEMBLY, 4 Inch Riser (Includes Port & Starboard)
    ELBOW ASSEMBLY, 4 Inch Riser (Includes Port & Starboard)
  • 7
    8M0104211 ELBOW ASSEMBLY, 6 Inch Riser (Includes Port & Starboard)
    ELBOW ASSEMBLY, 6 Inch Riser (Includes Port & Starboard)
  • 8
    10-8M2007128 SCREW, (1/4-20) Hex Flange, Included in 6 Inch Elbow Assembly
    6 Inch EC
    SCREW, (1/4-20) Hex Flange, Included in 6 Inch Elbow Assembly
    6 Inch EC
  • 8
    10-8M2007128 SCREW, (1/4-20) Hex Flange, Included in 6 Inch Elbow Assembly
    6 Inch Non-EC
    SCREW, (1/4-20) Hex Flange, Included in 6 Inch Elbow Assembly
    6 Inch Non-EC
  • 9
    8M2004597 BRACKET, Cover, Included in 6 Inch Elbow Assembly
    6 Inch EC
    BRACKET, Cover, Included in 6 Inch Elbow Assembly
    6 Inch EC
  • 9
    8M2004597 BRACKET, Cover, Included in 6 Inch Elbow Assembly
    6 Inch Non-EC
    BRACKET, Cover, Included in 6 Inch Elbow Assembly
    6 Inch Non-EC
  • 10
    19-8M0082363 PLUG, Included in Elbow Assemblies
    Non-EC
    PLUG, Included in Elbow Assemblies
    Non-EC
  • 11
    12-8M0097283 WASHER, Copper, Included in Elbow Assemblies
    Non-EC
    WASHER, Copper, Included in Elbow Assemblies
    Non-EC
  • 12
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 13
    27-8M2004606 GASKET, Included in Elbow Assemblies
    (Closed Cooling)
    GASKET, Included in Elbow Assemblies
    (Closed Cooling)
  • 13
    27-8M2004414 GASKET, Included in Elbow Assemblies
    (Standard Cooling)
    GASKET, Included in Elbow Assemblies
    (Standard Cooling)
  • 14
    22-73379 PLUG, (.250-18), Included in Elbow Assemblies
    PLUG, (.250-18), Included in Elbow Assemblies
  • 15
    22-428611 FITTING, Pipe - Brass (.750-14), Included in Elbow Assemblies
    (Standard Cooling)
    FITTING, Pipe - Brass (.750-14), Included in Elbow Assemblies
    (Standard Cooling)
  • 16
    19-864689 PLUG, Expansion, Included in Elbow Assemblies
    PLUG, Expansion, Included in Elbow Assemblies
  • 17
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 18
    22-866725 FITTING, Straight (.750-14)
    (Standard Cooling)
    FITTING, Straight (.750-14)
    (Standard Cooling)
  • 18
    22-866725 FITTING, Straight (.750-14)
    (Closed Cooling)
    FITTING, Straight (.750-14)
    (Closed Cooling)
  • 19
    22-8M0133716 FITTING ASSEMBLY
    (Standard Cooling)
    FITTING ASSEMBLY
    (Standard Cooling)
  • 20
    25-864701 O-RING, (1.112 x .103)
    (Standard Cooling)
    O-RING, (1.112 x .103)
    (Standard Cooling)
  • 21
    30-863129 BALL
    (Standard Cooling)
    BALL
    (Standard Cooling)
  • 22
    862994T FITTING
    (Standard Cooling)
    FITTING
    (Standard Cooling)
  • 23
    8M0059679 BALL SEAT, Rubber
    (Standard Cooling)
    BALL SEAT, Rubber
    (Standard Cooling)
  • 24
    22-36305T ELBOW
    (Closed Cooling)
    ELBOW
    (Closed Cooling)
  • 25
    22-428611 FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
    FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
  • 26
    22-866725 FITTING, Straight (.750-14)
    (Closed Cooling)
    FITTING, Straight (.750-14)
    (Closed Cooling)
  • 27
    8M0095468 SENSOR, O2
    SENSOR, O2
