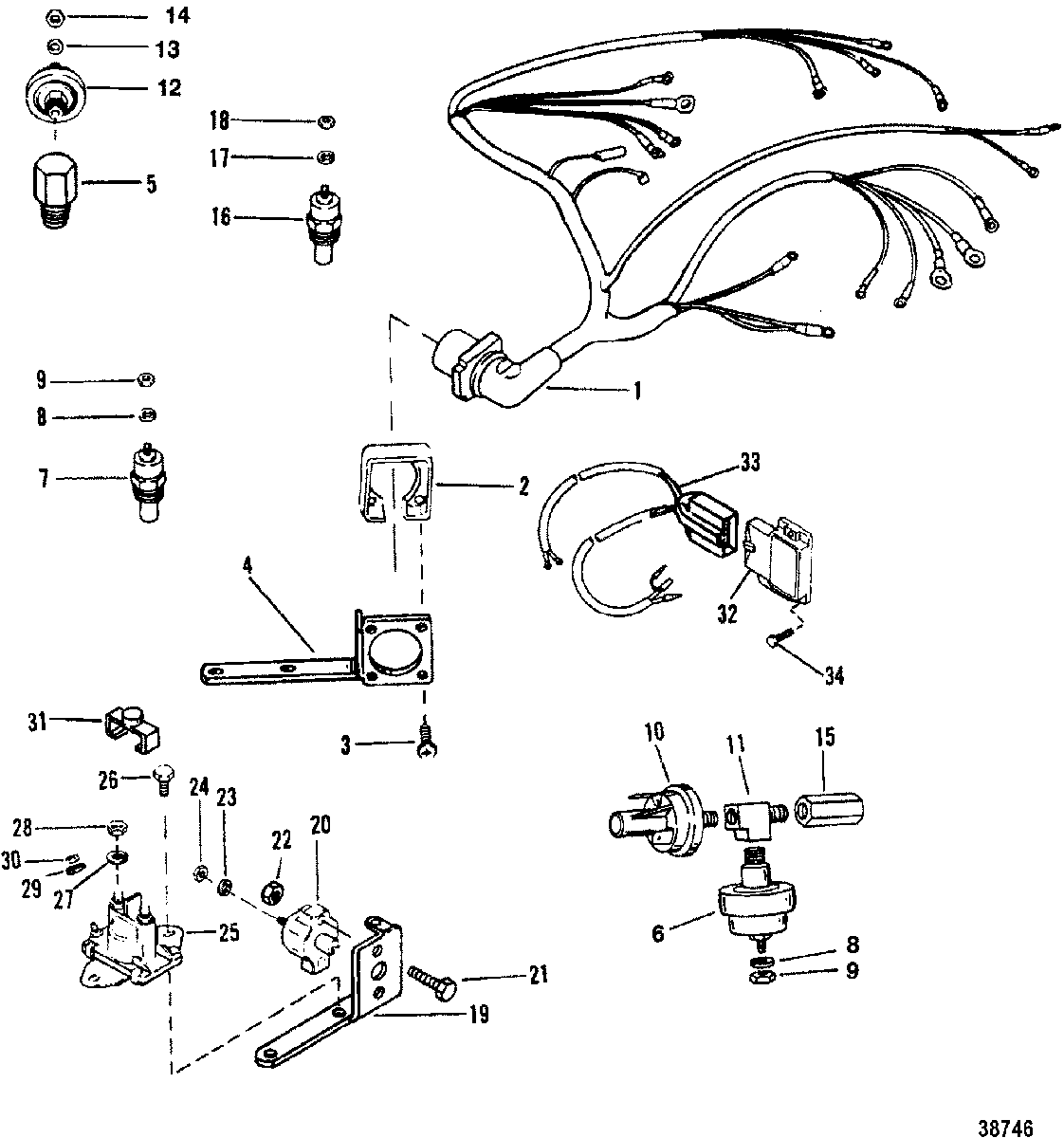

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1993-1995 0F001220 THRU 0F601126

  • №
    Артикул
    Название
  • 1
    84-805369A5 HARNESS ASSEMBLY
    SN# 0A000000 THRU 0F114777
    HARNESS ASSEMBLY
    SN# 0A000000 THRU 0F114777
  • 1
    84-806217A8 HARNESS ASSEMBLY
    SN# 0F114778 THRU 0Z999999
    HARNESS ASSEMBLY
    SN# 0F114778 THRU 0Z999999
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    805383T BRACKET, Harness Mounting
    BRACKET, Harness Mounting
  • 5
    22-8053281 FITTING, Elbow (90 Degree - .125)
    FITTING, Elbow (90 Degree - .125)
  • 6
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 6
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 7
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 7
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    87-864252A01 SWITCH, Oil Pressure (FUEL SYSTEM)
    SWITCH, Oil Pressure (FUEL SYSTEM)
  • 11
    22-286241 FITTING, T
    FITTING, T
  • 12
    87-805605A1 SWITCH ASSEMBLY (AUDIO WARNING SYSTEM)
    SWITCH ASSEMBLY (AUDIO WARNING SYSTEM)
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 14
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 15
    22-805059 FITTING
    FITTING
  • 16
    48952 SWITCH, Water Temperature (PUSH-ON CONNECTION)
    SWITCH, Water Temperature (PUSH-ON CONNECTION)
  • 16
    48952 SWITCH ASSEMBLY (NUT CONNECTION)
    SWITCH ASSEMBLY (NUT CONNECTION)
  • 17
    13-26996 LOCKWASHER, (#10) Stainless Steel (NUT CONNECTION)
    LOCKWASHER, (#10) Stainless Steel (NUT CONNECTION)
  • 18
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 19
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 20
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 21
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 22
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 25
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 26
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 28
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 29
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 30
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 31
    85-97861 INSULATOR
    INSULATOR
  • 32
    15247T02 IGNITION MODULE
    IGNITION MODULE
  • 33
    84-805363A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 34
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
