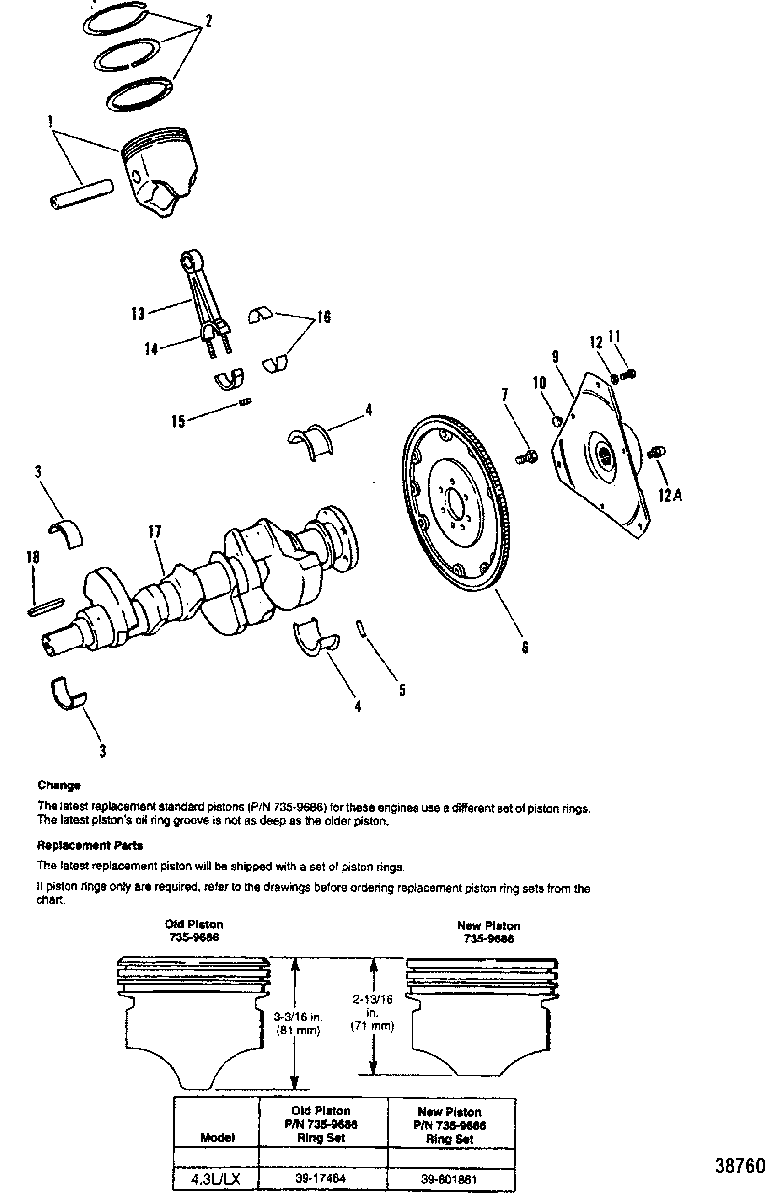

CRANKSHAFT AND PISTONS для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1993-1995 0F001220 THRU 0F601126

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 2
    39-17464 RING SET, Piston (Standard)
    RING SET, Piston (Standard)
  • 3/4
    23-818465 BEARING SET, 5 Pair (STANDARD)
    BEARING SET, 5 Pair (STANDARD)
  • 3/4
    23-818466 BEARING SET, 5 Pair (.001 USA)
    BEARING SET, 5 Pair (.001 USA)
  • 3/4
    23-818467 BEARING SET, 5 Pair (.010 USA)
    BEARING SET, 5 Pair (.010 USA)
  • 3/4
    23-818468 BEARING SET, 5 Pair (.020 USA)
    BEARING SET, 5 Pair (.020 USA)
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 6
    222-824320 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 9
    18643A5 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 10
    18644 BUMPER, Rubber
    BUMPER, Rubber
  • 11
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 12
    12-13510 WASHER
    WASHER
  • 12A
    22-74036 FITTING, Grease
    FITTING, Grease
  • 13
    614-811839T02 CONNECTING ROD
    CONNECTING ROD
  • 14
    10-11969 BOLT
    BOLT
  • 15
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 16
    23-11992001 BEARING (STANDARD - PAIR)
    BEARING (STANDARD - PAIR)
  • 16
    23-11993 BEARING (.001 USA - PAIR)
    BEARING (.001 USA - PAIR)
  • 16
    23-811858001 BEARING (.010 USA - PAIR)
    BEARING (.010 USA - PAIR)
  • 16
    23-811859 BEARING (.020 USA - PAIR)
    BEARING (.020 USA - PAIR)
  • 17
    429-9517A1 CRANKSHAFT
    CRANKSHAFT
  • 18
    28-818485 KEY
    KEY
