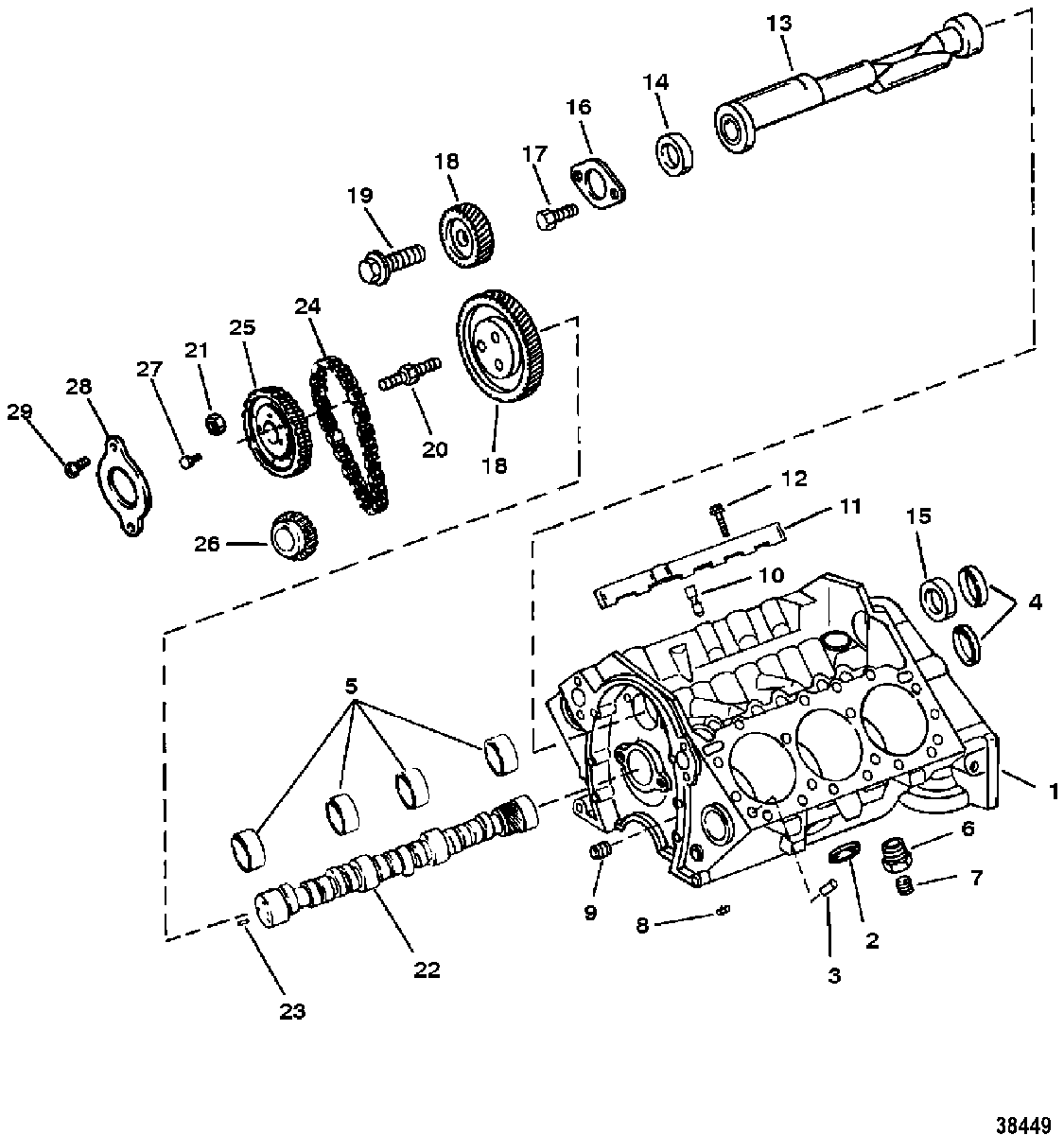

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1993-1995 0F001220 THRU 0F601126

  • №
    Артикул
    Название
  • 1
    841-824146 CYLINDER BLOCK
    INCLUDES ONLY STANDARD PISTONS,RINGS,CRANKSHAFT &CAMSHAFT BEARING(S)
    CYLINDER BLOCK
    INCLUDES ONLY STANDARD PISTONS,RINGS,CRANKSHAFT &CAMSHAFT BEARING(S)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 4
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 5
    23-802999 BEARING SET
    BEARING SET
  • 6
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 7
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 8
    22-42796 VALVE, Oil Filter Bypass
    VALVE, Oil Filter Bypass
  • 9
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 10
    811844T LIFTER
    LIFTER
  • 11
    824331 RETAINER
    RETAINER
  • 12
    10-824332 SCREW
    SCREW
  • 13
    824148 SHAFT, Balanced
    SHAFT, Balanced
  • 14
    NSS NOT SOLD SEPARATE, NEEDLE BEARING (FRONT)
    NOT SOLD SEPARATE, NEEDLE BEARING (FRONT)
  • 15
    31-824150 BEARING, Needle (REAR)
    BEARING, Needle (REAR)
  • 16
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 17
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 18
    43-8241511 GEAR KIT
    GEAR KIT
  • 19
    10-824152 SCREW
    SCREW
  • 20
    16-824340 STUD
    STUD
  • 21
    11-824341 NUT
    NUT
  • 22
    431-803186 CAMSHAFT
    CAMSHAFT
  • 23
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 24
    17161T CHAIN, Timing
    CHAIN, Timing
  • 25
    883494 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 26
    43-17160 SPROCKET, CRANKSHAFT
    SPROCKET, CRANKSHAFT
  • 27
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 28
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 29
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
