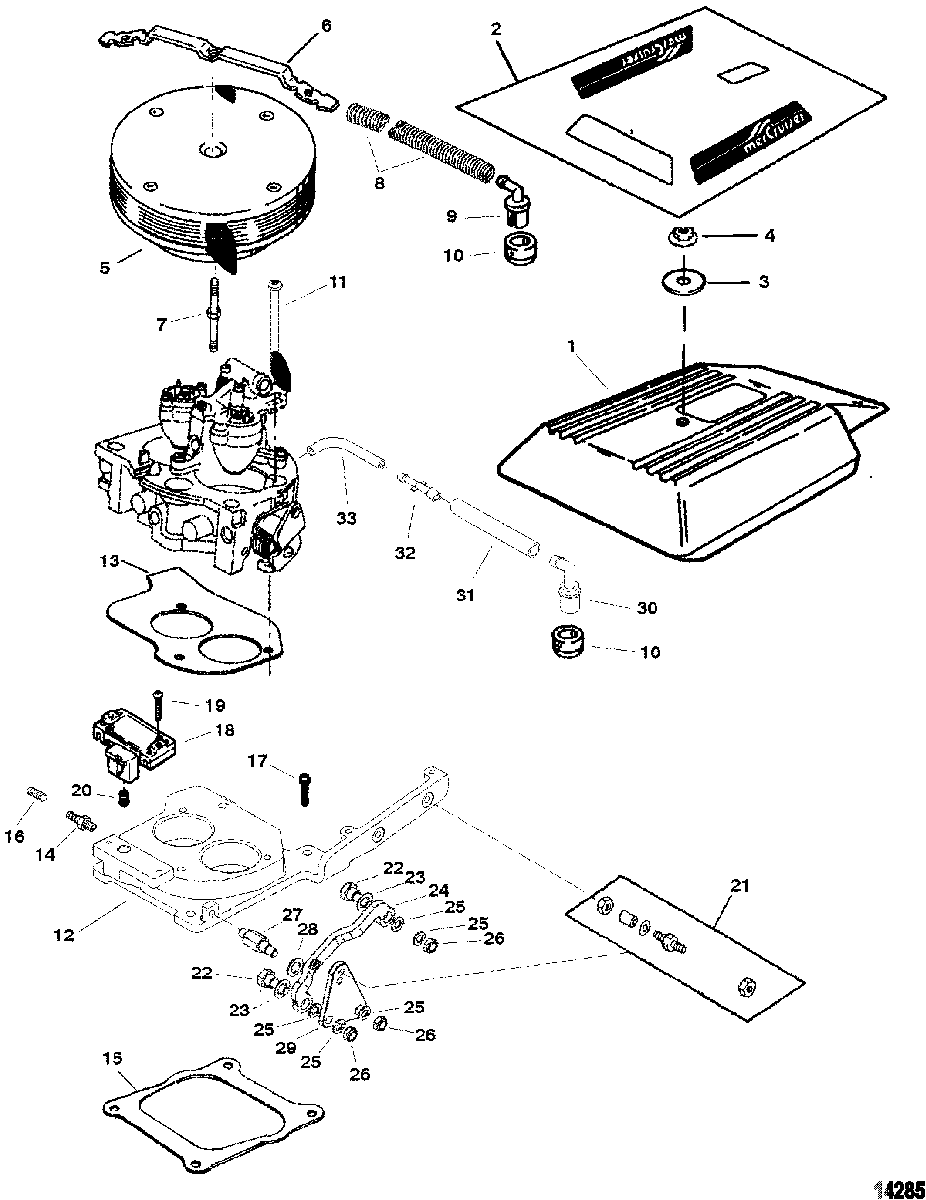

Throttle Linkage для Mercruiser - 262 MAG (TBI)(GEN+) 0F803800 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A42 DECAL SET
    DECAL SET
  • 3
    12-86400 WASHER
    WASHER
  • 4
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 5
    806637A1 FLAME ARRESTOR
    (VST Fuel System) SN# 0K000000 & Below
    FLAME ARRESTOR
    (VST Fuel System) SN# 0K000000 & Below
  • 5
    806637A1 FLAME ARRESTOR
    (Fuel Cooled System) SN# 0K001511 & Up
    FLAME ARRESTOR
    (Fuel Cooled System) SN# 0K001511 & Up
  • 6
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 7
    16-806703 STUD
    STUD
  • 8
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 9
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 10
    25-827152 GROMMET
    GROMMET
  • 11
    10-805390 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 12
    807760A1 ADAPTOR ASSEMBLY, TBI
    ADAPTOR ASSEMBLY, TBI
  • 13
    27-8M0077609 GASKET
    GASKET
  • 14
    22-805691 FITTING, (.250) Barb
    (VST Fuel System) SN# 0K000000 & Below
    FITTING, (.250) Barb
    (VST Fuel System) SN# 0K000000 & Below
  • 15
    27-807756 GASKET
    GASKET
  • 16
    10-35057 SET SCREW, (.250-20 x .3125)
    (Fuel Cooled System) SN# 0K001511 & Up
    SET SCREW, (.250-20 x .3125)
    (Fuel Cooled System) SN# 0K001511 & Up
  • 17
    10-807717 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 18
    864856A1 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 19
    10-807120 SCREW, (#10-24 x 1.00)
    SCREW, (#10-24 x 1.00)
  • 20
    26-805412 SEAL
    SEAL
  • 21
    16-97477A3 STUD KIT
    STUD KIT
  • 22
    10-806946 BOLT
    BOLT
  • 23
    12-861854 WASHER
    WASHER
  • 24
    807097T CONNECTOR
    CONNECTOR
  • 25
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 26
    11-826709111 NUT, (.312-24)
    NUT, (.312-24)
  • 27
    806915 SHAFT
    SHAFT
  • 28
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel
    WASHER, (.453 x .750 x .062) Stainless Steel
  • 29
    806916T PLATE
    PLATE
  • 30
    21-806118 VALVE, PVC
    VALVE, PVC
  • 31
    32-8M0062321 HOSE, PVC (22.50 Inch Bulk) (.375 Inch Inside Diameter)
    HOSE, PVC (22.50 Inch Bulk) (.375 Inch Inside Diameter)
  • 32
    22-808061 CONNECTOR, Hose
    CONNECTOR, Hose
  • 33
    32-8M0040618 HOSE, (.2187 x .440)
    HOSE, (.2187 x .440)
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
