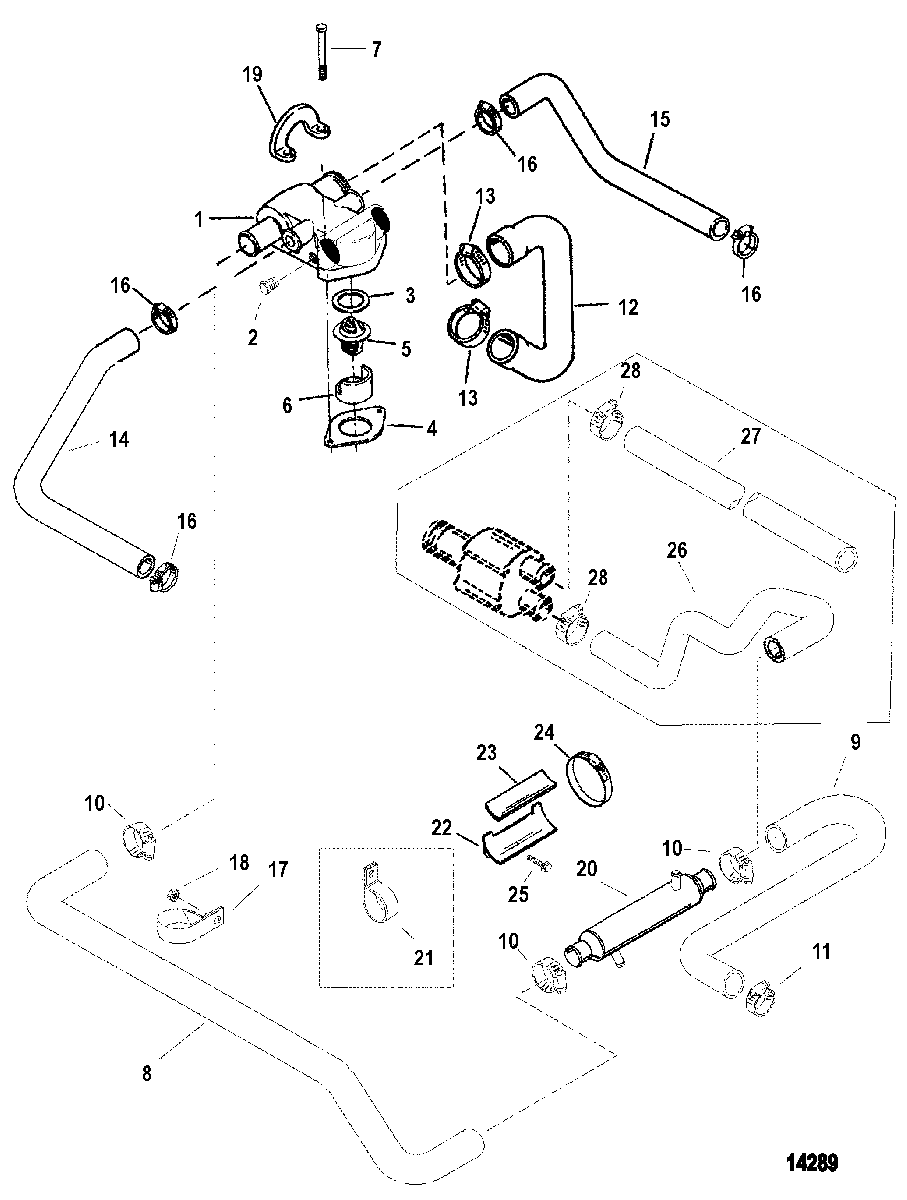

Standard Cooling System(VST Fuel System) для Mercruiser - 262 MAG (TBI)(GEN+) 0F803800 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860256A3 HOUSING ASSEMBLY, Thermostat
    (Alpha)
    HOUSING ASSEMBLY, Thermostat
    (Alpha)
  • 1
    860256A4 HOUSING ASSEMBLY, Thermostat
    (Bravo)
    HOUSING ASSEMBLY, Thermostat
    (Bravo)
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 8
    32-8062091 HOSE, Thermostat Housing To Power Steering Oil Cooler
    HOSE, Thermostat Housing To Power Steering Oil Cooler
  • 9
    32-807661 HOSE
    (Alpha Engines)
    HOSE
    (Alpha Engines)
  • 10
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 11
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 12
    32-861590A05 HOSE, Molded
    HOSE, Molded
  • 13
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 14
    32-8066351 HOSE
    HOSE
  • 15
    32-807697 HOSE, Thermostat Housing To Starboard Manifold
    (One Piece Manifold)
    HOSE, Thermostat Housing To Starboard Manifold
    (One Piece Manifold)
  • 15
    32-862124 HOSE, Thermostat Housing To Starboard Exhaust Manifold
    (Two Piece Manifold)
    HOSE, Thermostat Housing To Starboard Exhaust Manifold
    (Two Piece Manifold)
  • 16
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    54-47715 CLIP
    CLIP
  • 18
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 19
    12552 LIFTING EYE
    LIFTING EYE
  • 20
    8M0125855 COOLER, Power Steering Oil
    COOLER, Power Steering Oil
  • 21
    54-816398 CLIP
    (Design I)
    CLIP
    (Design I)
  • 22
    805546A2 BRACKET, Oil Cooler
    (Design II)
    BRACKET, Oil Cooler
    (Design II)
  • 23
    772233 PAD
    (Design II)
    PAD
    (Design II)
  • 24
    54-815504224 CLAMP, Worm Gear
    (Design II)
    CLAMP, Worm Gear
    (Design II)
  • 25
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • 26
    32-860205 HOSE, Oil Cooler To Sea Water Pump
    (Bravo Engines)
    HOSE, Oil Cooler To Sea Water Pump
    (Bravo Engines)
  • 27
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
    HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
  • 28
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
    CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
