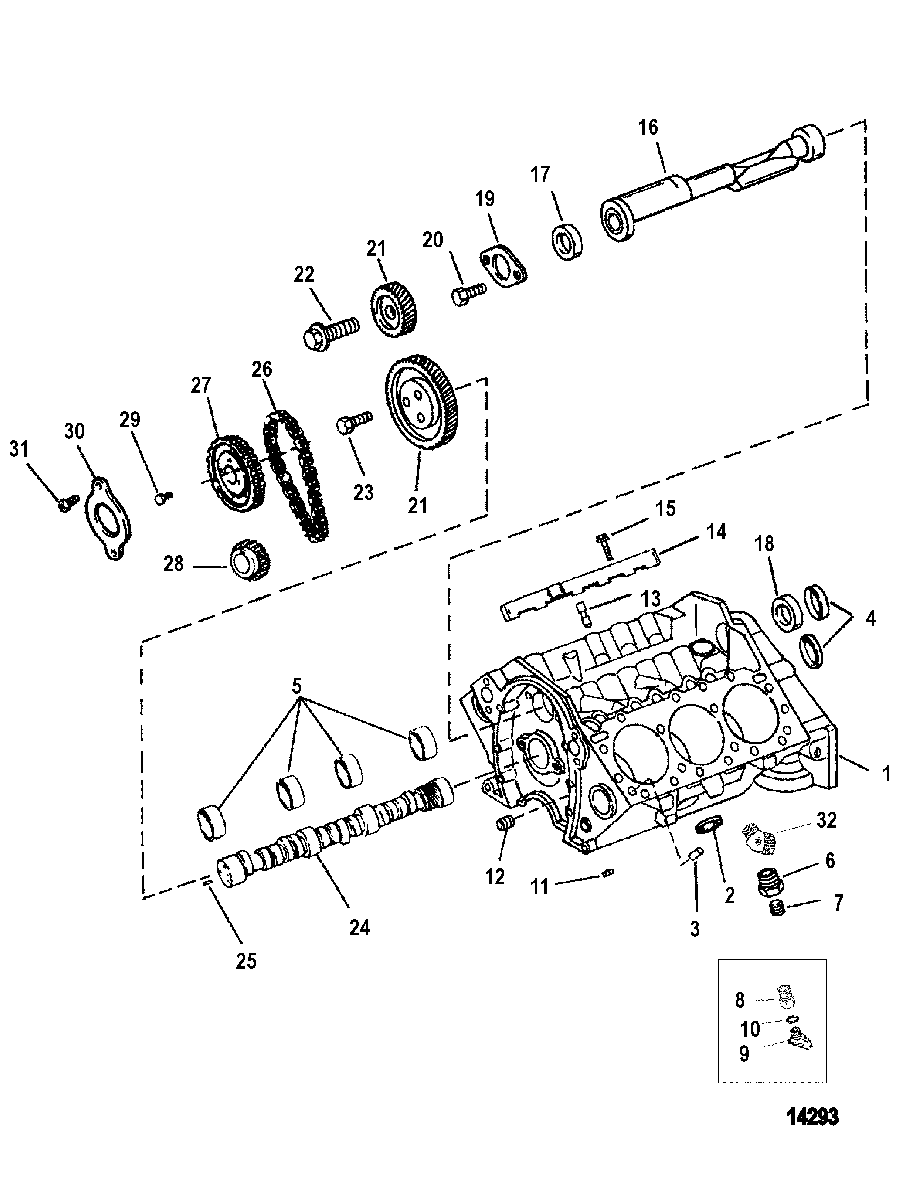

Cylinder Block And Camshaft для Mercruiser - 262 MAG (TBI)(GEN+) 0F803800 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 807736A1)
    NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 807736A1)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312), Dowel
    PIN, Dowel (.312), Dowel
  • 4
    22-72640 PLUG
    PLUG
  • 5
    23-85674 BEARING SET
    BEARING SET
  • 6
    22-48556 BUSHING , Reducer (.250 To .125)
    (Brass Drain Plug)
    BUSHING , Reducer (.250 To .125)
    (Brass Drain Plug)
  • 7
    22-328022 PLUG, Pipe (.125-27)
    (Brass Drain Plug)
    PLUG, Pipe (.125-27)
    (Brass Drain Plug)
  • 8
    22-860088 BUSHING
    (Plastic Drain Plug)
    BUSHING
    (Plastic Drain Plug)
  • 9
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    (Plastic Drain Plug)
    PLUG KIT, (.500-13) Royal Blue
    (Plastic Drain Plug)
  • 10
    25-32509 QUAD RING
    (Plastic Drain Plug)
    QUAD RING
    (Plastic Drain Plug)
  • 11
    22-42796 VALVE, Oil Filter Bypass
    VALVE, Oil Filter Bypass
  • 12
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 13
    8118441 LIFTER, Roller
    LIFTER, Roller
  • 14
    8243311 RETAINER, Lifter
    RETAINER, Lifter
  • 15
    10-8243321 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 16
    8241481 BALANCED SHAFT
    BALANCED SHAFT
  • 17
    NSS NOT SOLD SEPARATE, Bearing Ball, Front
    NOT SOLD SEPARATE, Bearing Ball, Front
  • 18
    31-824150 BEARING, Needle, Rear
    BEARING, Needle, Rear
  • 19
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 20
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 21
    43-8241511 GEAR KIT
    GEAR KIT
  • 22
    10-824152 SCREW
    SCREW
  • 23
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 24
    431-803186 CAMSHAFT
    CAMSHAFT
  • 25
    17-353121 PIN, Dowel
    PIN, Dowel
  • 26
    17161T CHAIN, Timing
    CHAIN, Timing
  • 27
    883494 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 28
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 29
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 30
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 31
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 32
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    27-807756A96 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
