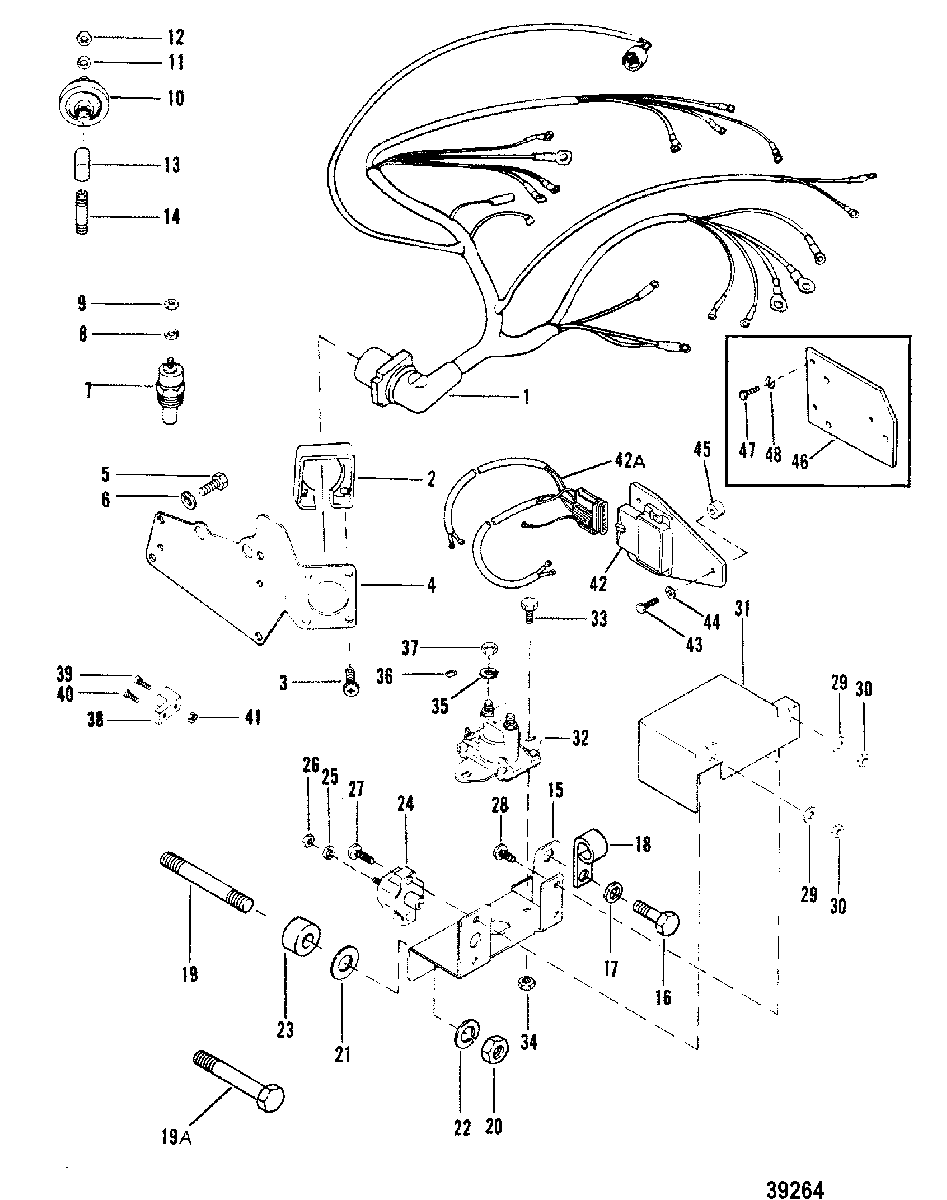

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 205 (4 BBL.) GM 262 V-6 1987 0B527955 THRU 0B775129

  • №
    Артикул
    Название
  • 1
    84-99510A11 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE, WIRING HARNESS
    METAL
    PLATE, WIRING HARNESS
    METAL
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLASTIC
    PLATE KIT, Wire Harness Mount
    PLASTIC
  • 3
    10-15001 SCREW, (#8-16 x .875)
    Use with Plastic Plate
    SCREW, (#8-16 x .875)
    Use with Plastic Plate
  • 3
    10-34696 SCREW, (#8-32 x .750)
    Use with Metal Plate
    SCREW, (#8-32 x .750)
    Use with Metal Plate
  • 4
    98493A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    10-49668 SCREW, (.250-20 x .750), MOUNTING BRACKET
    SCREW, (.250-20 x .750), MOUNTING BRACKET
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET
    LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET
  • 7
    806490T SENDER ASSEMBLY, Water Temperature (3/8-18)
    SENDER ASSEMBLY, Water Temperature (3/8-18)
  • 7
    97258A1 SENDER ASSEMBLY (1/2-14)
    SENDER ASSEMBLY (1/2-14)
  • 7
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    8M0068784 SENDER
    SENDER
  • 10
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 13
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 14
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 15
    41170T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 16
    10-98260 SCREW, (.375-16 x .620), MOUNTING BRACKET
    SCREW, (.375-16 x .620), MOUNTING BRACKET
  • 17
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 18
    54-92850 CLAMP, BRACKET SCREW
    CLAMP, BRACKET SCREW
  • 19
    16-56826 STUD, (1.5 In.), MOUNTING BRACKET
    OLD DESIGN
    STUD, (1.5 In.), MOUNTING BRACKET
    OLD DESIGN
  • 19A
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET
    NEW DESIGN
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET
    NEW DESIGN
  • 20
    11-46335 NUT, MOUNTING BRACKET STUD
    OLD DESIGN
    NUT, MOUNTING BRACKET STUD
    OLD DESIGN
  • 21
    12-20572 WASHER, (.390 x .750 x .093), MOUNTING BRACKET STUD
    WASHER, (.390 x .750 x .093), MOUNTING BRACKET STUD
  • 22
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET STUD
    LOCKWASHER, (.375), MOUNTING BRACKET STUD
  • 23
    23-57369 SPACER, MOUNTING BRACKET STUD
    SPACER, MOUNTING BRACKET STUD
  • 24
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 26
    11-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
    NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
  • 27
    10-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER
    SCREW, (#10-32 x .875), CIRCUIT BREAKER
  • 28
    10-45218 SCREW, (#10-32 x .380), INSULATOR
    SCREW, (#10-32 x .380), INSULATOR
  • 29
    12-56681 WASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREW
    WASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREW
  • 30
    11-46438 NUT, (#10-32), INSULATOR SCREW
    NUT, (#10-32), INSULATOR SCREW
  • 31
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 32
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 33
    10-96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")
    SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")
  • 34
    11-20088 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
  • 36
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 37
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 38
    86-45915 TERMINAL BLOCK
    OLD DESIGN
    TERMINAL BLOCK
    OLD DESIGN
  • 39
    10-62568 SCREW, (#10-16 x .375), TERMINAL BLOCK LEADS
    OLD DESIGN
    SCREW, (#10-16 x .375), TERMINAL BLOCK LEADS
    OLD DESIGN
  • 40
    10-22028 SCREW, (#10-32 x .50), TERMINAL BLOCK
    OLD DESIGN
    SCREW, (#10-32 x .50), TERMINAL BLOCK
    OLD DESIGN
  • 41
    11-46438 NUT, (#10-32), TERMINAL BLOCK SCREW
    OLD DESIGN
    NUT, (#10-32), TERMINAL BLOCK SCREW
    OLD DESIGN
  • 42
    15247A1 IGNITION AMPLIFIER
    IGNITION AMPLIFIER
  • 42A
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 43
    10-76630 SCREW, (.250-20 x 1.00), AMPLIFIER
    SCREW, (.250-20 x 1.00), AMPLIFIER
  • 44
    13-26992 LOCKWASHER, (.250) Stainless Steel, AMPLIFIER SCREW
    LOCKWASHER, (.250) Stainless Steel, AMPLIFIER SCREW
  • 45
    23-92152T SPACER, (.27 x .75 x .38), AMPLIFIER SCREW
    SPACER, (.27 x .75 x .38), AMPLIFIER SCREW
  • 46
    125001 PLATE, IGNITION AMPLIFIER
    OLD DESIGN
    PLATE, IGNITION AMPLIFIER
    OLD DESIGN
  • 47
    10-76596 SCREW, (.250-20 x 1.250), AMPLIFIER PLATE
    OLD DESIGN
    SCREW, (.250-20 x 1.250), AMPLIFIER PLATE
    OLD DESIGN
  • 48
    13-26992 LOCKWASHER, (.250) Stainless Steel, AMPLIFIER PLATE SCREW
    OLD DESIGN
    LOCKWASHER, (.250) Stainless Steel, AMPLIFIER PLATE SCREW
    OLD DESIGN
  • -
    84-11149A5 HARNESS ASSEMBLY, Adapter
    Used to adapt ring terminal and bullet connector wiring harnesses
    HARNESS ASSEMBLY, Adapter
    Used to adapt ring terminal and bullet connector wiring harnesses
