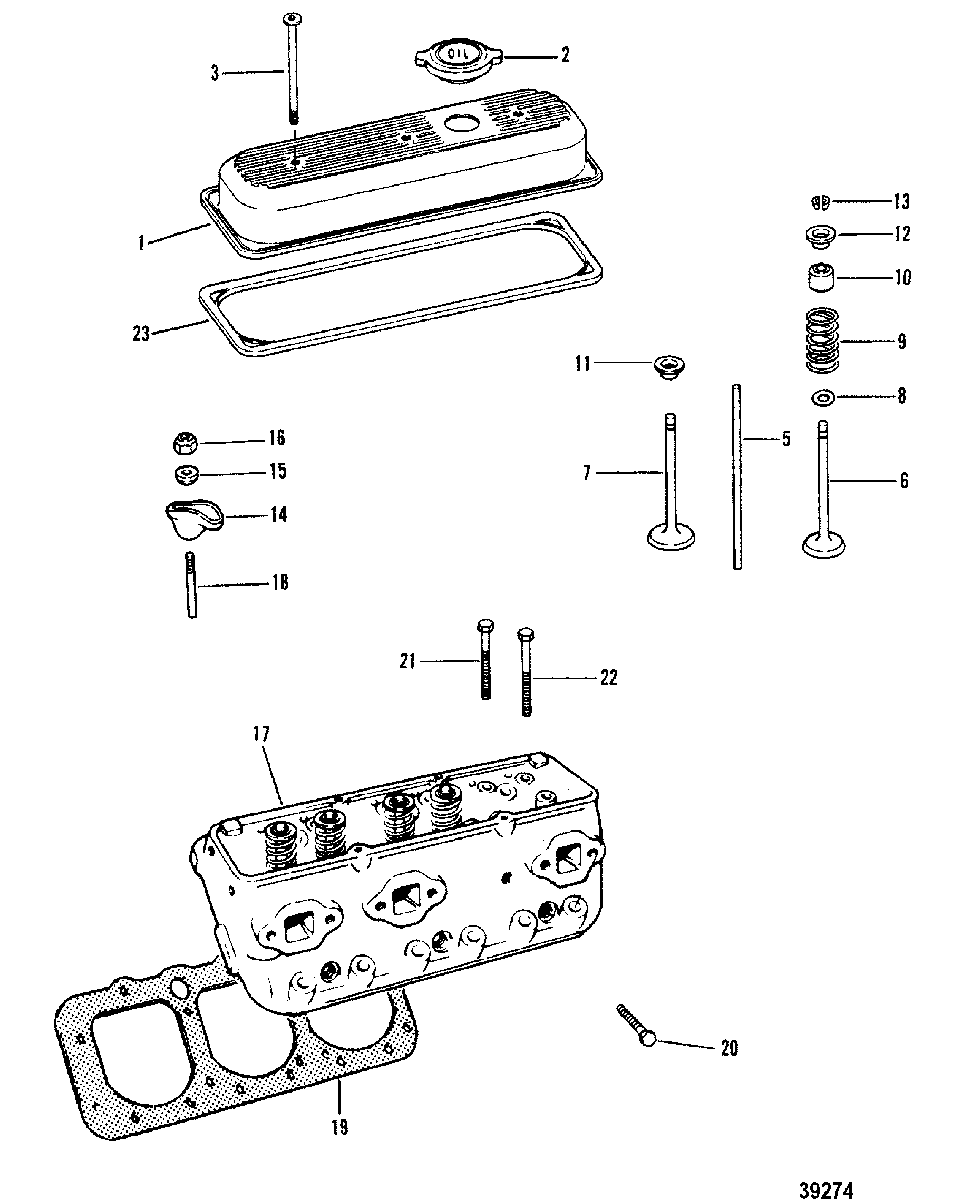

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 205 (4 BBL.) GM 262 V-6 1987 0B527955 THRU 0B775129

  • №
    Артикул
    Название
  • 1
    14252 ROCKER COVER
    (RIGHT)
    ROCKER COVER
    (RIGHT)
  • 1
    814504 ROCKER COVER
    (LEFT) - CLAMP TYPE CAP
    ROCKER COVER
    (LEFT) - CLAMP TYPE CAP
  • 1
    814504 ROCKER COVER
    (LEFT) - SCREW TYPE CAP
    ROCKER COVER
    (LEFT) - SCREW TYPE CAP
  • 2
    17345 CAP, OIL FILLER
    CLAMP TYPE CAP
    CAP, OIL FILLER
    CLAMP TYPE CAP
  • 2
    36-18710002 CAP, Metal Rocker Cover, OIL FILLER
    SCREW TYPE CAP
    CAP, Metal Rocker Cover, OIL FILLER
    SCREW TYPE CAP
  • 3
    10-8M0084557 SCREW, ROCKER COVER
    SCREW, ROCKER COVER
  • 5
    17339 PUSH ROD, VALVE PUSH (DOUBLE BALL END)
    PUSH ROD, VALVE PUSH (DOUBLE BALL END)
  • 6
    85803 VALVE, EXHAUST
    (STANDARD)
    VALVE, EXHAUST
    (STANDARD)
  • 6
    49076 VALVE, EXHAUST
    (.015 O.S.)
    VALVE, EXHAUST
    (.015 O.S.)
  • 7
    97661 VALVE, INLET
    (STANDARD)
    VALVE, INLET
    (STANDARD)
  • 7
    97662 VALVE, INLET
    (.015 O.S.)
    VALVE, INLET
    (.015 O.S.)
  • 8
    26-34217 SEAL, VALVE
    (INLET AND EXHAUST)
    SEAL, VALVE
    (INLET AND EXHAUST)
  • 8
    26-8M0050563 SEAL, VALVE
    (INLET)
    SEAL, VALVE
    (INLET)
  • 9
    24-48347 SPRING, VALVE (INLET AND EXHAUST)
    SPRING, VALVE (INLET AND EXHAUST)
  • 10
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 11
    48348 CAP, INLET VALVE
    CAP, INLET VALVE
  • 12
    11965 ROTATOR, VALVE SPRING - EXHAUST VALVE
    ROTATOR, VALVE SPRING - EXHAUST VALVE
  • 13
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 14
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 15
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 17
    938-884740R CYLINDER HEAD
    CYLINDER HEAD
  • 18
    16-34522 STUD, ROCKER VALVE ARM
    (.003 O.S.)
    STUD, ROCKER VALVE ARM
    (.003 O.S.)
  • 18
    16-34521 STUD, ROCKER VALVE ARM
    (.013 O.S.)
    STUD, ROCKER VALVE ARM
    (.013 O.S.)
  • 19
    27-879150140 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 20
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 21
    10-119671 BOLT, (3 In.), CYLINDER HEAD TO CYLINDER BLOCK (3")
    BOLT, (3 In.), CYLINDER HEAD TO CYLINDER BLOCK (3")
  • 22
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 23
    27-8M0077607 GASKET, Metal Rocker Cover
    GASKET, Metal Rocker Cover
  • -
    27-11977A92 GASKET SET
    GASKET SET
