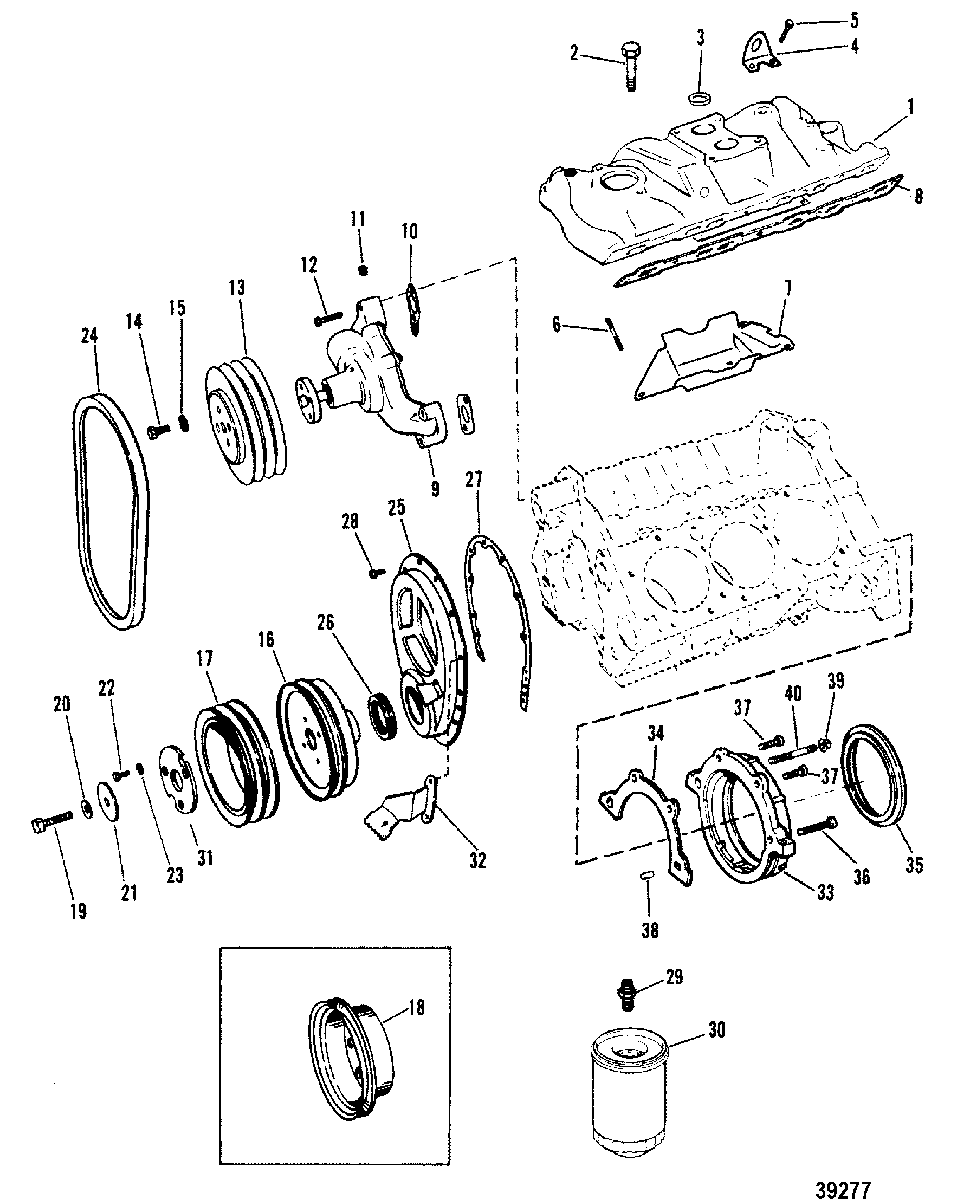

INTAKE MANIFOLD AND FRONT COVER , OLD DESIGN для Mercruiser - 205 (4 BBL.) GM 262 V-6 1987 0B527955 THRU 0B775129

  • №
    Артикул
    Название
  • 1
    11974 MANIFOLD, Intake
    (175 - 4.3L)
    MANIFOLD, Intake
    (175 - 4.3L)
  • 1
    42752T MANIFOLD, Intake
    (205 - 4.3L/LX)
    MANIFOLD, Intake
    (205 - 4.3L/LX)
  • 2
    10-11976 SCREW, (.375-16 x 1.00), INTAKE MANIFOLD
    SCREW, (.375-16 x 1.00), INTAKE MANIFOLD
  • 2
    10-802655 BOLT, (3/8-16 x 1.25), INTAKE MANIFOLD
    BOLT, (3/8-16 x 1.25), INTAKE MANIFOLD
  • 3
    22-75983 PLUG, VACUUM HOLE
    PLUG, VACUUM HOLE
  • 4
    42453 BRACKET, LIFTING
    (FRONT)
    BRACKET, LIFTING
    (FRONT)
  • 4
    42745 BRACKET, LIFTING
    (REAR)
    BRACKET, LIFTING
    (REAR)
  • 5
    10-34354 SCREW, (.375-16 x 1.50), LIFTING BRACKET
    SCREW, (.375-16 x 1.50), LIFTING BRACKET
  • 6
    N.S.S. Not Sold Separate, STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
    Not Sold Separate, STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
  • 7
    42753 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 8
    27-11977 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 11
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 12
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 12
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 12
    10-52200 SCREW, (1.625 In.), WATER PUMP TO CYLINDER BLOCK (1-1/2")
    SCREW, (1.625 In.), WATER PUMP TO CYLINDER BLOCK (1-1/2")
  • 12
    N.S.S. Not Sold Separate, STUD, WATER PUMP TO CYLINDER BLOCK (GM #3759755)
    Not Sold Separate, STUD, WATER PUMP TO CYLINDER BLOCK (GM #3759755)
  • 13
    15120T PULLEY, (5.5 In. Diameter), WATER PUMP (3 GROOVE)
    PULLEY, (5.5 In. Diameter), WATER PUMP (3 GROOVE)
  • 14
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 15
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 16
    11990 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 17
    33863T PULLEY, HARMONIC BALANCER (2 GROOVE)
    PULLEY, HARMONIC BALANCER (2 GROOVE)
  • 18
    90081A1 PULLEY (1 GROOVE)
    PULLEY (1 GROOVE)
  • 19
    10-72626 BOLT, (2 In.), PULLEY AND HARMONIC BALANCER (2")
    BOLT, (2 In.), PULLEY AND HARMONIC BALANCER (2")
  • 20
    13-39131 LOCKWASHER, (.437), PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, (.437), PULLEY AND HARMONIC BALANCER BOLT
  • 21
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 22
    10-35786 SCREW, (.375-24 x 1.00), PULLEY
    SCREW, (.375-24 x 1.00), PULLEY
  • 23
    13-35048 LOCKWASHER, (.375), PULLEY BOLT
    LOCKWASHER, (.375), PULLEY BOLT
  • 24
    57-93658Q BELT, (44 Inch), ALTERNATOR DRIVE (44")
    BELT, (44 Inch), ALTERNATOR DRIVE (44")
  • 25
    8M0127828 COVER, CRANKCASE FRONT
    COVER, CRANKCASE FRONT
  • 26
    26-97335 SEAL, Oil - COVER
    SEAL, Oil - COVER
  • 27
    27-14250 GASKET, COVER
    GASKET, COVER
  • 28
    10-8M0040582 SCREW, COVER
    SCREW, COVER
  • 29
    11972 ADAPTOR, OIL FILTER
    ADAPTOR, OIL FILTER
  • 30
    35-883702Q FILTER, Oil
    FILTER, Oil
  • 31
    42697 BACKING PLATE, CRANKSHAFT PULLEY
    BACKING PLATE, CRANKSHAFT PULLEY
  • 32
    75435A1 POINTER
    POINTER
  • 33
    14239 RETAINER, OIL SEAL (REAR)
    RETAINER, OIL SEAL (REAR)
  • 34
    27-881715 GASKET, OIL SEAL RETAINER
    GASKET, OIL SEAL RETAINER
  • 35
    26-8M0077606 SEAL, Oil, Oil - CRANKSHAFT (REAR)
    SEAL, Oil, Oil - CRANKSHAFT (REAR)
  • 36
    10-8M0064241 BOLT, (.250-20 x 1.750), OIL SEAL RETAINER
    BOLT, (.250-20 x 1.750), OIL SEAL RETAINER
  • 37
    10-14242 BOLT, (.250-20 x .875), OIL SEAL RETAINER
    BOLT, (.250-20 x .875), OIL SEAL RETAINER
  • 38
    17-14263 PIN, Dowel
    PIN, Dowel
  • 39
    11-11996 NUT
    NUT
  • 40
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-11977A92 GASKET SET
    GASKET SET
