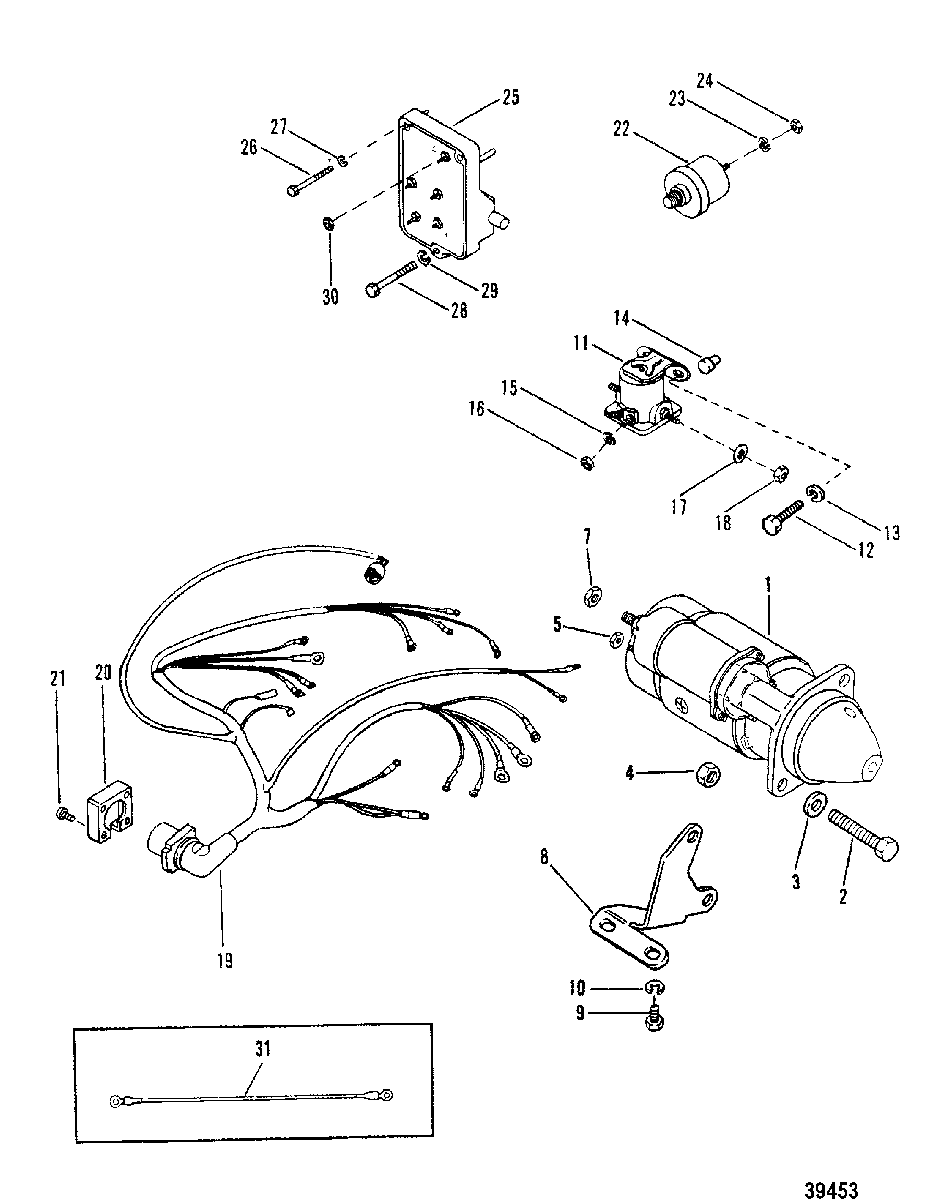

STARTER MOTOR AND WIRING HARNESS для Mercruiser - 3.7L (2 BBL.) MERCURY 224 I/L4 1988-1989 0B774252 & Up

  • №
    Артикул
    Название
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-48130 SCREW, (.375-16 x 4.500), STARTER MOTOR
    SCREW, (.375-16 x 4.500), STARTER MOTOR
  • 3
    12-25909 WASHER, (.406 x .812 x .065), STARTER MOTOR SCREW
    WASHER, (.406 x .812 x .065), STARTER MOTOR SCREW
  • 4
    11-82671112 NUT, STARTER MOTOR SCREW
    NUT, STARTER MOTOR SCREW
  • 5
    11-29031 NUT, (1/4-20), STARTER MOTOR TERMINAL (1/4-20)
    NUT, (1/4-20), STARTER MOTOR TERMINAL (1/4-20)
  • 7
    11-26419 NUT, (#8-32) Brass, STARTER MOTOR TERMINAL
    NUT, (#8-32) Brass, STARTER MOTOR TERMINAL
  • 7
    11-15874 NUT, (M10), BATTERY TERMINAL
    NUT, (M10), BATTERY TERMINAL
  • 7
    11-400211 NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL
    NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL
  • 8
    97259A1 BRACKET, STARTER MOTOR TO CYLINDER BLOCK
    BRACKET, STARTER MOTOR TO CYLINDER BLOCK
  • 9
    10-98261 SCREW, (.375-16 x .750), BRACKET TO CYLINDER BLOCK
    SCREW, (.375-16 x .750), BRACKET TO CYLINDER BLOCK
  • 10
    13-35048 LOCKWASHER, (.375), BRACKET SCREW
    LOCKWASHER, (.375), BRACKET SCREW
  • 11
    65057T1 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 12
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCK
    SCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCK
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
  • 14
    269011 BUMPER, SOLENOID
    BUMPER, SOLENOID
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
  • 16
    11-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
  • 17
    13-26993 LOCKWASHER, (.312), SOLENOID TERMINAL
    LOCKWASHER, (.312), SOLENOID TERMINAL
  • 18
    11-22053 NUT, (.312-24), SOLENOID TERMINAL
    NUT, (.312-24), SOLENOID TERMINAL
  • 19
    84-98269A9 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 20
    26079A2 PLATE
    Metal
    PLATE
    Metal
  • 20
    26079A2 PLATE KIT, Wire Harness Mount
    Plastic
    PLATE KIT, Wire Harness Mount
    Plastic
  • 21
    10-34696 SCREW, (#8-32 x .750), Use with Metal Plate
    SCREW, (#8-32 x .750), Use with Metal Plate
  • 21
    10-15001 SCREW, (#8-16 x .875)
    Use with Plastic Plate Kit
    SCREW, (#8-16 x .875)
    Use with Plastic Plate Kit
  • 22
    8M0068784 SENDER, OIL PRESSURE
    SENDER, OIL PRESSURE
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINAL
    LOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINAL
  • 24
    11-68219 NUT, (#10-32) Stainless Steel, SENDING UNIT TERMINAL
    NUT, (#10-32) Stainless Steel, SENDING UNIT TERMINAL
  • 25
    99502A13 REGULATOR ASSEMBLY, Voltage
    REGULATOR ASSEMBLY, Voltage
  • 26
    10-98255 SCREW, (.250-20 x 2.25) , VOLTAGE REGULATOR (2-1/4")
    SCREW, (.250-20 x 2.25) , VOLTAGE REGULATOR (2-1/4")
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel, VOLTAGE REGULATOR SCREW
    LOCKWASHER, (.250) Stainless Steel, VOLTAGE REGULATOR SCREW
  • 28
    10-34354 SCREW, (.375-16 x 1.50), VOLTAGE REGULATOR
    SCREW, (.375-16 x 1.50), VOLTAGE REGULATOR
  • 29
    13-58643 LOCKWASHER, (.375), VOLTAGE REGULATOR SCREW
    LOCKWASHER, (.375), VOLTAGE REGULATOR SCREW
  • 30
    11-68219 NUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALS
    NUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALS
  • 31
    84-94227A2 RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)
    RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)
  • -
    84-11149A5 HARNESS ASSEMBLY, Adapter
    (See Note)
    HARNESS ASSEMBLY, Adapter
    (See Note)
