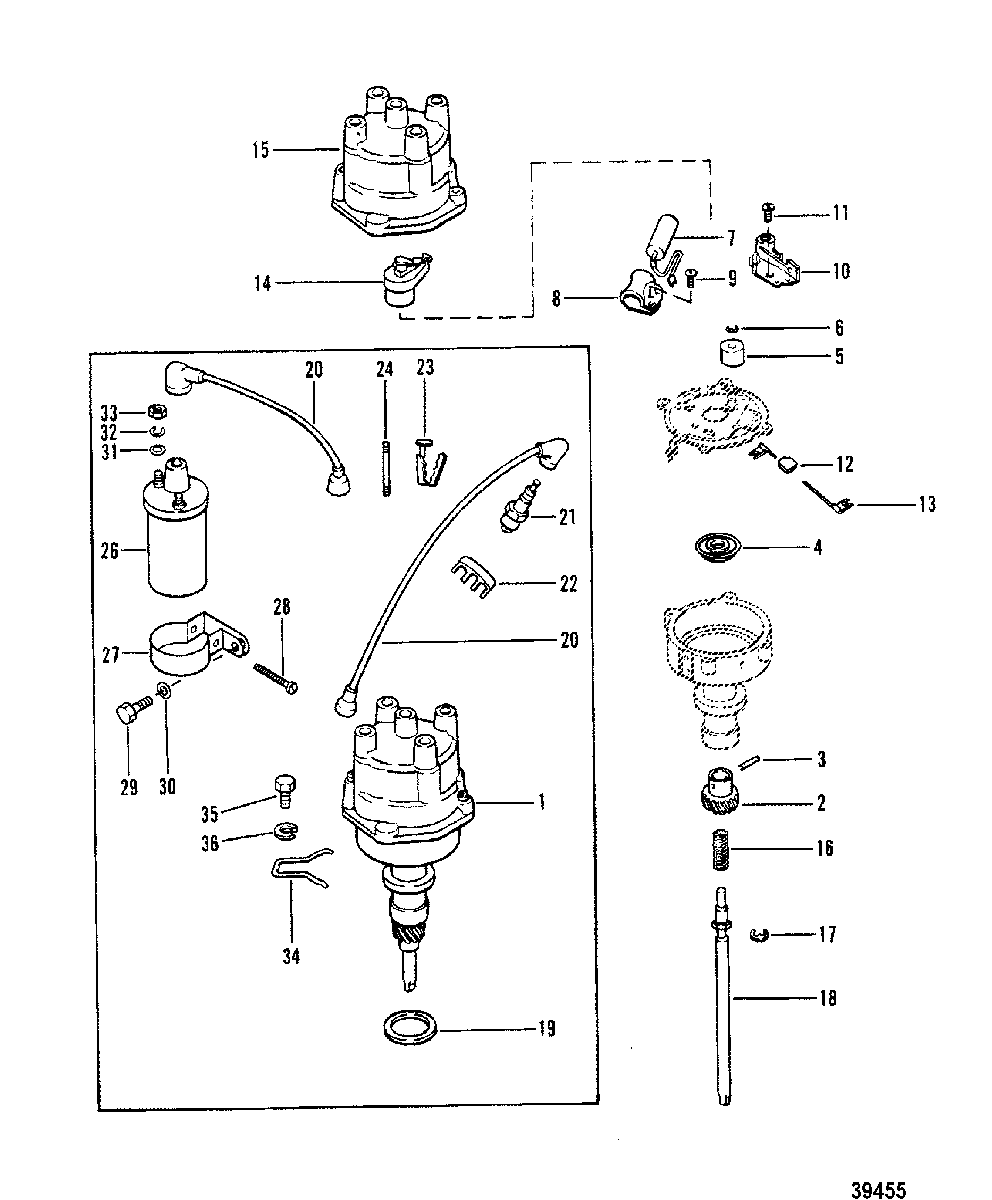

DISTRIBUTOR AND COIL для Mercruiser - 3.7L (2 BBL.) MERCURY 224 I/L4 1988-1989 0B774252 & Up

  • №
    Артикул
    Название
  • 1
    19514A2 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 2
    43-735791 GEAR, Drive
    GEAR, Drive
  • 3
    17-29077 PIN, Roll, DISTRIBUTOR GEAR
    PIN, Roll, DISTRIBUTOR GEAR
  • 4
    26-58219 SEAL, HOUSING
    SEAL, HOUSING
  • 5
    33653 FELT, LUBRICATOR
    FELT, LUBRICATOR
  • 6
    72654 RETAINER, LUBRICATOR FELT
    RETAINER, LUBRICATOR FELT
  • 7
    8M6001218 CONDENSER
    CONDENSER
  • 8
    48024 BRACKET, CONDENSER
    BRACKET, CONDENSER
  • 9
    10-48021 SCREW, CONDENSER BRACKET
    SCREW, CONDENSER BRACKET
  • 10
    34235T BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • 11
    10-33650 SCREW, BREAKER
    SCREW, BREAKER
  • 12
    25-33666 GROMMET, PRIMARY WIRE
    GROMMET, PRIMARY WIRE
  • 13
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 14
    8M6001251 ROTOR
    ROTOR
  • 15
    393-9459Q1 CAP, Distributor
    CAP, Distributor
  • 16
    24-73642 SPRING, DISTRIBUTOR SHAFT
    SPRING, DISTRIBUTOR SHAFT
  • 17
    53-73499 LOCK RING, DISTRIBUTOR SHAFT
    LOCK RING, DISTRIBUTOR SHAFT
  • 18
    73501 DRIVESHAFT, DISTRIBUTOR SHAFT
    DRIVESHAFT, DISTRIBUTOR SHAFT
  • 19
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 20
    84-816761Q6 SPARK PLUG WIRE KIT
    SPARK PLUG WIRE KIT
  • 21
    33-97389 SPARK PLUG
    SPARK PLUG
  • 22
    54676 RETAINER, Two Wire, HIGH TENSION LEADS
    RETAINER, Two Wire, HIGH TENSION LEADS
  • 23
    54-72821 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 24
    16-73583 STUD, HIGH TENSION LEAD CLAMP
    STUD, HIGH TENSION LEAD CLAMP
  • 26
    898253T24 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 27
    65970T1 BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 28
    10-41408 SCREW, (#10-32 x 1.50), BRACKET TO COIL
    SCREW, (#10-32 x 1.50), BRACKET TO COIL
  • 29
    10-35386 SCREW, (.312-18 x 1.00), IDNITION COIL TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.00), IDNITION COIL TO CYLINDER BLOCK
  • 30
    12-20084 WASHER, (.328 x .562 x .062), IGNITION COIL SCREW
    WASHER, (.328 x .562 x .062), IGNITION COIL SCREW
  • 31
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL TERMINAL
    WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL TERMINAL
  • 32
    13-26996 LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
    LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
  • 33
    11-68219 NUT, (#10-32) Stainless Steel, IGNITION COIL TERMINAL
    NUT, (#10-32) Stainless Steel, IGNITION COIL TERMINAL
  • 34
    67511 CLAMP, DISTRIBUTOR
    CLAMP, DISTRIBUTOR
  • 35
    10-35386 SCREW, (.312-18 x 1.00), DISTRIBUTOR TO BLOCK
    SCREW, (.312-18 x 1.00), DISTRIBUTOR TO BLOCK
  • 36
    13-26993 LOCKWASHER, (.312), DISTRIBUTOR SCREW
    LOCKWASHER, (.312), DISTRIBUTOR SCREW
  • -
    27-43186A1 GASKET SET
    GASKET SET
